PUZZLE-M902

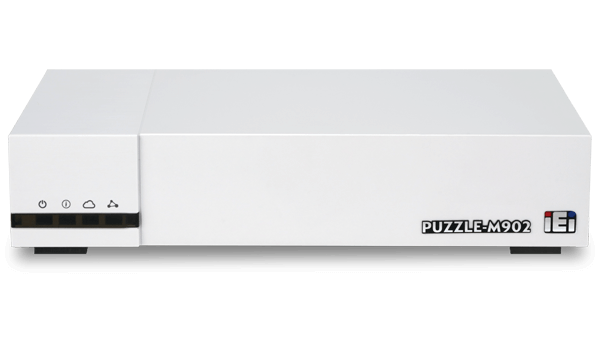

OpenWrt Network Appliance with Marvell® CN9130 Processor, up to three 10GbE, six 2.5GbE with 4GB eMMC

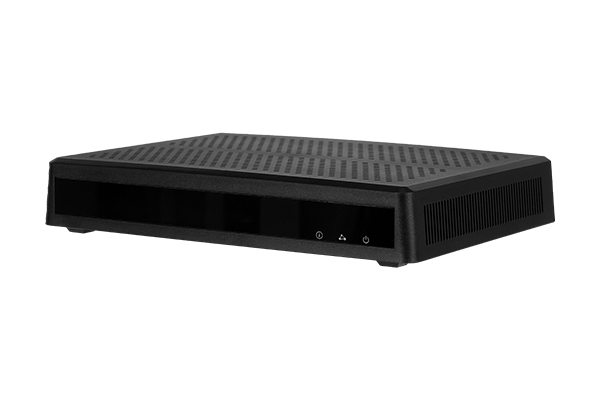

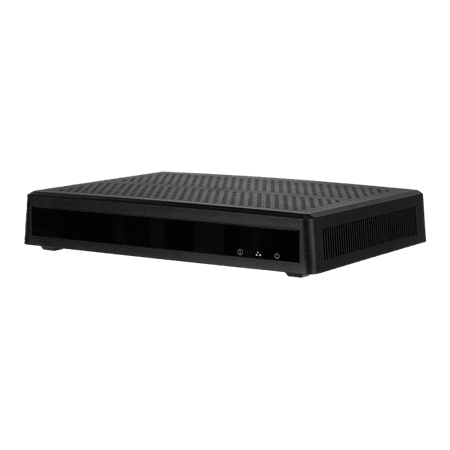

PUZZLE-M902_Software-Defined-Router
PUZZLE-M902_Software-Defined-Router
PUZZLE-M902_Software-Defined-Router
PUZZLE-M902_Software-Defined-Router
  • PUZZLE-M902_Software-Defined-Router
  • PUZZLE-M902_Software-Defined-Router
  • PUZZLE-M902_Software-Defined-Router
  • PUZZLE-M902_Software-Defined-Router
• Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz
• Six 2.5GbE RJ-45 ports (two via Marvell CN9130; four via Marvell 88F8215)
• Three 10GbE RJ-45 ports (one via Marvell CN9130; two via Marvell 88F8215)
• 4 GB eMMC; one console port (pin-header); one reset button
• LED indicators: status/power & WAN/LAN interface indicator

Why You Need Software Defined Router?

High Reliability, Performance and Availability

HIGH SCALABILITY

Rich open resource services to achieve any requirement

SUPER SPEED

Designed with 2.5GbE and 10GbE ports for faster package transfer

FASTER TIME TO MARKET

Deploy network applications and services faster by leveraging open software packages

Get Your Office Ready for New Gen. Software Defined Router

The growing number of connected personal and IoT devices has led to an overall increase in network density. The PUZZLE-M902 is IEI‘s latest product series – Software Defined Router, which is pre-installed with OpenWrt and features high speed and high flexibility to optimize your network performance.

This series is integrated with 2.5GbE and 10GbE ports and the interfaces can be defined with various combination to meet your demands. Moreover, its function can also be expanded by open source applications supported in the OpenWrt community. It is ideally suited for a wide range of applications, such as SOHO a nd SMB networking infrastructure.

photo description

Marvell CN9130 quad-core SoC

photo description

Powered by the hottest open source project for Arm platform

photo description

Support 2.5GbE and 10GbE ports

photo description

Visible and simple network operation

photo description

Customize your own router with up to 3,500 optional software packages

High-end Arm-based Platform with Marvell Quad-core SoC

Accelerate Your Networking and Security Applications

The Marvell CN9130 is a quad-core Armv8 Cortex-A72 system-on-ch ip (SoC). The high-performance processor offers a complete function and acceleration for networking and security applications. It can accelerate the packet processing for NAT, QoS and packet filtering, and offload the processor on multiple IPSec/SSL VPN tunneling.

photo description

High computing with quad-core SoC

photo description

Accelerate NAT, QoS, packet filtering,
and offload IPSec/SSL VPN tunneling

Flexible High-speed Network Deployment

Stability and Low Latency for Multi-package Delivery

The PUZZLE-M902 can offer you incredible speed for data transmission with six 2.5 GbE ports and three 10 GbE ports. Its interfaces can be defined to link with multiple devices for different tasks and purposes.

Built stability for multi-device connections

6 x 2.5 GbE

3 x 10  GbE

Super speed for package transfer

Customize Your Network with OpenWrt

One Device, Diversified Results

The hottest open source project, OpenWrt, which is based on Linux-based embedded operating system and used on embedded devices to route network traffic. It uses the command line interface (ash shell) or the web interface (LuCI) to configure OpenWrt. Approximately 3,500 optional software packages can be installed through the opkg package management system. It provides detailed possibilities to configure common network-related functions, such as IPv4, IPv6, DNS, DHCP, VPN, shadowsocks, DLNA, routing, Dynamic DNS, firewall, NAT, port forwarding, file sharing via SAMBA, NFS, FTP, SFTP and MQ Telemetry Transport through Mosquitto.

photo description

The hottest open source project for router

3500

Various software packages you can have

Simple and Visible Network Operation

Faster and Easier than Before

Powered by OpenWrt, the PUZZLE-M902 provides a user-friendly web interface, a clear dashboard and port indicators to help you handle daily network management tasks. Users can not only efficiently manage all connected wires through OpenWrt OS in real time, but also configure firewall, VPN, security and advanced network functions.

photo description

Make Security Configuration Easier than Ever

Select, Configure, Run. Only Three Steps

There are multiple packages available in the OpenWrt package repository and designed with clear user interface to support IT developer for installing and deploying the security function of network. OpenVPN, a virtual private network (VPN), and Firewall3 (fw3) which uses netfilter/iptable rule builder for firewall applications, are two of the most popular packages for creating high reliable network security.

photo description
photo description

Flexible Software-ready Router Solution for Small and Medium-sized Business

Designed for the application of small and medium business, the PUZZLE-M901/PUZZLE-M902 series is built-in with OpenWrt, an OS primarily made for embedded networking devices. With OpenWrt , the PUZZLE-M901/PUZZLE-M902 series can give you the ability to fully customize devices in ways and with other replacement router firmware.

In addition, proper operation and robustness in an enterprise environment can be ensured while using open source services such as router, VPN server and AD blocker on the devices.

Upgrade Your Work from Home Solution

Simplify VPN & Firewall Deployment across Multiple Sites

The PUZZLE-M901/M902 provides fast connection speed and adopts OpenVPN and firewall3 (fw3) to build an efficient and reliable work from home solution. A virtual private network (VPN) system implements techniques to create secure site-to-site connections in routed or bridged configurations and remote access facilities. It implements both client and server applications. With the PUZZLE-M901/M902, users can construct less-expensive site-to-site internet service, and remote workers can access the company’s LAN resources via OpenVPN, without going through complex VPN settings.


Hardware Spec.

Form Factor
Form Factor Desktop
System
CPU Marvell® CN9130 quad-core Armv8 Cortex-A72 @ up to 2200 MHz
Memory System: 4G
Cooling method / System Fan 1 system fan
Physical Characteristics
Dimensions (LxWxH) (mm) 226 x140 x 50.5
Storage
Storage 1 x M.2(NGFF) : 2242/2280 M Key M.2 PCIe Gen. 3 x1
1 x eMMC : onboard 4 GB
I/O Interface
Ethernet 9 x LAN :
2 x 2.5GbE LAN integrated in CPU via PHY Aquantia AQR112R
4 x 2.5GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR112R)
1 x 10GbE LAN integrated in CPU via PHY Aquantia AQR113
2 x 10GbE LAN via Marvell 88F8215 (PHY: Aquantia AQR113)
I/O Interface 1 x External USB 3.2 Gen1x1
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5~95% non-condensing, wet bulb: 27˚C
Certifications
Safety & EMC CE/FCC/BSMI (BSMI safety)/VCCI, LVD
OS Support
OS Support OpenWrt

Ordering Information

PUZZLE-M902-CN1-R10 Desktop Network Appliance with Marvell CN9130 Processor ,6 x 2.5GbE and 3 x10 GbE on Board 4GB eMMC & 1x M.2 slot, RoHS.

Package Contents

Package Content
  • 1 x Power cord

  • 1 x Power adapter


Related Products
