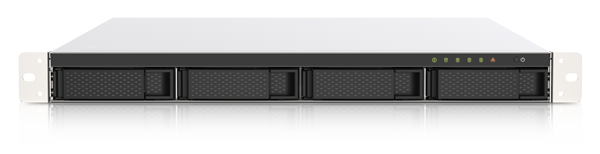

GRAND-GL

Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)

» Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption
» 2 x SODIMM Slots, up to 8GB memory with 2 x 4GB DIMMs
» 1 x PCIe x2 slot can support PCIe expansion card
» Storage expandable via USB 3.2 Gen1 port

Overview

Powered by an Intel® Celeron® J4125, quad-core 2.0 GHz processor, the GRAND-GL features two 2.5GbE RJ45 ports, providing up to 2.5 times the speed of Gigabit Ethernet and enabling smoother multimedia playback and everyday usage. With a PCIe Gen 2.0 x 2 slot, the GRAND-GL provides flexibility in extending NAS functionality, allowing you to install various cards for extra network ports, M.2 SSD caching/tiering, or Wi-Fi connectivity. The GRAND-GL ensures data security with AES 256-bit encryption, boosting system performance while ensuring the safety of sensitive business data stored.

GRAND-GL features two 2.5GbE RJ45 ports & Intel® Celeron® J4125 quad-core 2.0 GHz processor with AES-NI Encryption

Use the Existing Wiring Infrastructure to Support 2.5GbE

No more bandwidth restriction by 1GbE interface! No more DIY to install the 2.5GbE driver to your system from other venders!! GRAND-GL is equipped with 2 independent 2.5GbE NICs for faster and smoother multi-device networking experience. The available PCIe expansion slot is ready for the future business growth.

Use the Existing Wiring Infrastructure to Support 2.5GbE

Accelerate IOPS Performance with SSD Caching

Adding an SSD cache to the GRAND-RE is an easy way to increase IOPS performance and reducing storage volume latency. It is perfect for IOPS demanding applications (including databases and virtualization) and can significantly improve overall workflows.

Accelerate IOPS Performance with SSD Caching

Hardware Spec.

Form Factor
Form Factor 1U, Rackmount
System
CPU Intel® Celeron® J4125 Processor (4M Cache, up to 2.70 GHz)
Memory Max. SODIMM x 2 (MAX. 8GB)
Cooling method / System Fan 2 x 40mm, 12V
Physical Characteristics
Rack Height 1U, 4Bay
Dimensions (LxWxH) (mm) 43.3 (H) x 482.6 (W) x 483.9 (D) mm
Net Weight 8.12 kg
Storage
Storage 4 x 3.5” HDD Bay
4 x SATA
I/O Interface
Display Output 1 x HDMI
Ethernet 2 x LAN
I/O Interface 2 x External USB 2.0
2 x External USB 3.2 Gen1x1
Environment
Operating Temperature 0~40˚C
Humidity 5 to 95% non-condensing, wet bulb:27˚C.

Ordering Information

GRAND-GL-04A-RP-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), Intel Celeron J4125, 2x 2.5GbE, 2 x 300W PSU
GRAND-GL-04A-R10 1U 4Bay front 3.5" HDD or SSD support, rackmount storage server (Barebone), Intel Celeron J4125, 2x 2.5GbE, 250W PSU

Package Contents

Package Content
  • Ethernet cable x 1

  • Power cord x 2 (non RP model only one power cord)


Download Specs.
