IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

  • Overview

    1. LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
    2. Dual-channel DDR4 2133MHz
    3. Support dual displays with VGA/HDMI/iDP
    4. Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s
  • Features

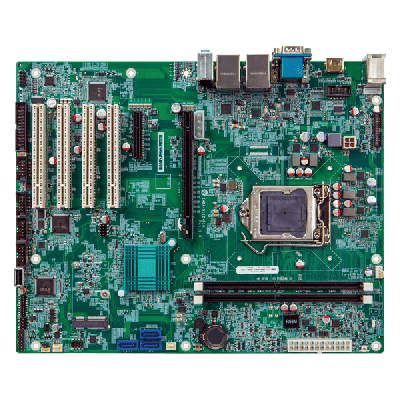

    IEI_New_ATX_Motherboard_IMBA_H112
    IEI_New_ATX_Motherboard_IMBA_H112

    PCIe and PCI Slots for Multiple Expansion Support






    Dimensions





    IMBA_Dimensions
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Form factor
      Form factorATX Motherboard
      Display
      Display OutputDual independent display
      1 x VGA (up to 1920 x 1080@60Hz)
      1 x HDMI 1.4 (up to 4096x2160@24Hz)
      1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
      System
      CPULGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor
      ChipsetIntel® H110
      Memory Max.Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB
      CPU SocketLGA 1151
      Graphcis ControllerIntel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES 2.0
      I/O Interface
      EthernetLAN1: Intel® I219V PHY
      LAN2: Intel® I211 PCIe controller
      AudioRealtek ALC662 HD Audio Codec support 5.1 Channel (2 Audio Jack colay 3 Jack)
      (Line-out, Mic)
      Expansion1 x Full-size PCIe Mini card slot (support mSATA)
      1 x PCIe x16 slot (Gen3)
      1 x PCIe x4
      4 x PCI slot
      I²C1 x I²C (1x4 pin)
      I/O Interface
      I/O Interface3 x Audio Codec(Realtek ALC662 HD Audio Codec support 5.1 Channel
      3 x Audio jacks (line-out, line-in, mic-in) on rear IO
      1 x Front audio (2x5 pin))
      1 x Display / HDMI
      1 x Display / VGA
      2 x Ethernet
      1 x Front panel(2 x 7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button)
      1 x I²C(1x4 pin)
      4 x Internal RS-232(2x5 pin, P=2.54)
      1 x Internal RS-232/422/485(2x5 pin, P=2.54)
      1 x Internal USB 2.0(type A)
      2 x Internal USB 2.0(2x4 pin, P=2.54)
      1 x KB/MS(1x6 pin)
      1 x KB/MS(1x6 pin)
      2 x LAN LED(1x2 pin)
      1 x LPT(2x13 pin, P=2.54)
      1 x RS-232
      3 x SATA 6Gb/s(support Hot plug)
      1 x SMBus(1x4 pin)
      2 x USB 2.0
      4 x USB 3.0
      Power
      Power consumption3.3V@1.53A, 5V@2.95A, 12V@8.38A, 5VSB@3.2A (4.0 GHz Intel® Core™ i7-6700K CPU with two 8 GB 2133 MHz DDR4 memory)
      Power SupplyAT/ATX power supply
      Support AT/ATX mode
      ErP/EuP Compliant
      Environment
      Operating Temperature-20°C~60°C
      Humidity5% ~ 95%, non-condensing
      Storage Temperature-20°C~70°C
      Dimensions
      Dimensions244mm x 305mm
      Weight
      WeightGW: 1200g / NW: 700g
      Expansion Slots
      PCIe x 161
      PCIe x 41
      PCI Slot4
      Watchdog Timer
      Watchdog TimerSoftware Programmable support 1~255 sec. system reset
      BIOS
      BIOSAMI UEFI BIOS
      PCIe Mini
      PCIe Mini1 x Full-size PCIe Mini card slot (support mSATA)
      Features
      Features1. LGA 1151 Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
      2. Dual-channel DDR4 2133MHz
      3. Support dual displays with VGA/HDMI/iDP
      4. Support USB 3.2 Gen 1 (5Gb/s) and SATA 6Gb/s
      Packing List
      Packing List1 x IMBA-H112 single board computer
      1 x I/O shielding
      2 x SATA cable
      1 x QIG
    • Ordering Info.

      Item No. Description
      IMBA-H112-ECO-R10ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio, ECO packing and RoHS
      IMBA-H112-R10ATX Motherboard supports 14nm LGA1151 6th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual®Intel GbE LAN, USB 3.1, SATA 6Gb/s, HD Audio and RoHS
    • Package Contents

      • 1 x IMBA-H112 single board computer

      • 1 x I/O shielding

      • 2 x SATA cable

      • 1 x QIG
