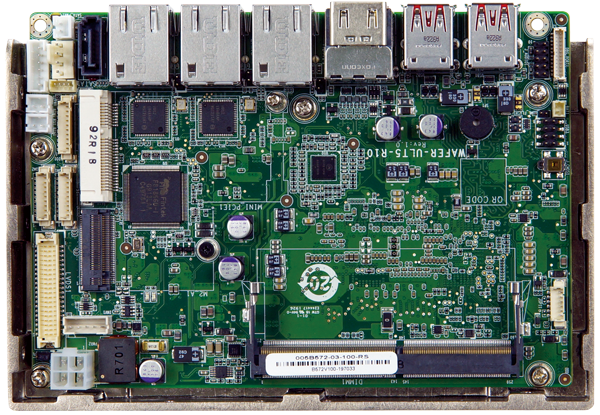

WAFER-ULT5

3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS

  • Overview

    ● 3.5” SBC supports Intel® 8th generation Whiskey Lake processor with DDR4 SO-DIMMs
    ● Triple display with dual HDMI, LVDS selection
    ● M.2 A Key, PCIe Mini slot with mSATA spport
    ● COM, USB 3.1 Gen2, SATA 6Gb/s support
    ● Support temperature operation: -20°C ~ 60°C
  • Features

    Comparison of Intel® Processor Generation

      Skylake Q3’15 Kaby Lake Q3’16 Whiskey Lake Q2’19
    Graphics HD Graphics 520 HD Graphics 620 UHD Graphics 620

    Since 2015 there are many improvements from Skylake U to Whiskey Lake U, and they upgraded not only CPU but also GPU. The new Gen is equipped with the latest 14nm UHD Graphics engine. It provides a better Ultra HD 4k capability that will not lag or break off.

      Skylake Q3’15 Kaby Lake Q3’16 Whiskey Lake Q2’19
    CPU Core/ Graphics SKL-U  (BGA)
    2+3e, 2+2 , 2+1
    KBL-U  (BGA)
    2+2 , 2+1
    WHL-U  (BGA)
    4+2 , 2+2
     PCH-LP 100 Series 22nm 100 Series 22nm 300 Series 14nm
    I/O Connectivity USB 3.2 Gen1 USB 3.2 Gen1 USB 3.2 Gen2
    Memory DDR4/DDR3L DDR4/DDR3L Up to DDR4 2400

    Heat Sink Introduction



    Compared with heat sink, the standout of heat spreader is directly transferred the heat from CPU to the opposite direction of back cover. This solution allows products to fit in environment with space limitation and you could also attach the heat sink on the heat spreader as need. And this is the reason our customer wants to have heat spreader instead of heat sink. If you are interested in that info you can find more details in the product user manual

    Plus if your application is not suitable for heat spreader. Wafer ULT5 also provides our customers with a fanless heat sink module as an option. If those solutions still not good enough and you still want to have a different design. We would defiantly happy to customized a new thermal solution for our customer


    I/O Interface


    Dimensions (Unit: mm)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Display OutputTriple Independent Displays
      2 x HDMI up to 40960x2160@30Hz
      1 x Internal LVDS Up to 1920x1200@60Hz
      System
      CPUIntel® Core™ i7-8665UE 1.9 GHz (up to 4.4GHz, Quad-core, 8MB cache, TDP=15W)
      Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
      Intel® Core™ i3-8145UE 2.1 GHz (up to 3.9GHz,Dual-core, 4MB cache, TDP=15W)
      Intel® Celeron® processor 4305UE (up to 2.0GHz, Dual-core, 2MB cache, TDP=15W)
      Intel® Celeron® processor 4205U (up to 1.8GHz, Dual-core, 2MB cache, TDP=15W)
      Memory Max.Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB
      Graphcis ControllerIntel® UHD Graphics 620
      I/O Interface
      Display Port2 x HDMI
      1 x LVDS
      Ethernet2 x PCIe GbE LAN Intel® i211 controller
      1 x PCIe GbE LAN Intel® i219 controller
      Digital I/O1 x 8-bit digital I/O (1x10 pin)
      Audio1 x HD audio (2x5 pin, support 7.1 channel HD audio by AC-KIT-892HD-R10)
      I/O Interface
      I/O InterfaceExpansion(4 x USB3.2 Gen 2)
      Expansion / Front panel(1 x Power LED & HDD LED (1x6 pin)
      1 x Power button (1x2 pin)
      1 x Reset button (1x2 pin))
      1 x I²C(4-pin connector)
      1 x Internal RS-232(1x9 pin, P=1.25)
      1 x Internal RS-232/422/485(1x9 pin, P=1.25, Support Auto Flow Control over RS-485)
      2 x Internal USB 2.0(2x4 pin, P=2.0)
      3 x LAN LED(1x2 pin)
      1 x SATA 6Gb/s(5V SATA power connector)
      Power
      Input12V DC
      Power SupplySupport AT/ATX mode
      Power JackInternal power connector (2x2 pin)
      Environment
      Operating Temperature-20°C ~ 60°C
      Humidity5% ~ 95%, non-condensing
      Storage Temperature-30°C ~ 70°C
      Dimensions
      Dimensions115mm x 165mm
      Weight
      WeightGW:700g / NW:350g
      Expansion Slots
      Expansion Slots1 x M.2 slot with 2230 A key
      1 x Full-size PCIe Mini slot (w/ SATA signal, support mSATA
      Watchdog Timer
      Watchdog TimerSoftware programmable support 1~255 sec. system reset
      CPU Cooler
      CPU CoolerHeatspreader
      BIOS
      BIOSAMI UEFI BIOS
      Embedded Controller
      Embedded ControllerITE IT8587VG-FX
      PCIe Mini
      PCIe Mini1 x Full-size PCIe Mini slot
    • Ordering Info.

      Item No. Description
      WAFER-ULT5-CE-R103.5" SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4205U (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
      WAFER-ULT5-C-R103.5" SBC supports Intel® 14nm 8th Gen (ULT) Celeron™4305UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
      WAFER-ULT5-i3-R103.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i3-8145UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
      WAFER-ULT5-i5-R103.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i5-8365UE (15W) on-board CPU with DDR4 SO-DIMM support, triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA support, SATA 6Gb/s, dual COM, Audio and RoHS
      WAFER-ULT5-i7-R103.5" SBC supports Intel® 14nm 8th Gen (ULT) Core™ i7-8665UE (15W) on-board CPU with DDR4 SO-DIMM , triple display with Dual HDMI, LVDS, M.2 A key, PCIe mini with mSATA , SATA 6Gb/s, dual COM, support Audio and RoHS
    • Package Contents

      • 1 x WAFER-ULT5 single board computer with Heatspreader

      • 1 x Power Cable

      • 1 x SATA with power cable kit

      • 2 x RS-232 cable

      • 1 x QIG (Quick Installation Guide)
