EMB-WIFI-KIT

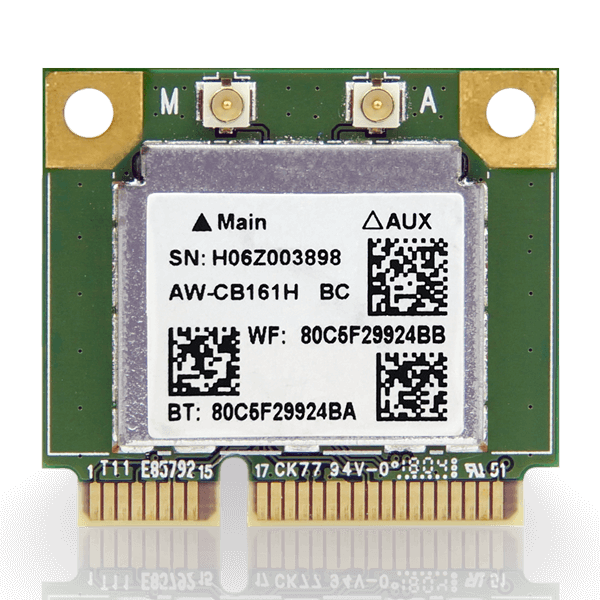

PCIe Mini card wireless LAN module kit

  • Overview

    ● Half size PCIe Mini card form factor
    ● High speed wireless connection up to 433.3Mbps transmit/receive PHY rate using 80MHz bandwidth
    ● Low power consumption and high performance
    ● Fully qualified Bluetooth 4.0
    ● Solid design with external antenna diversity
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Physical Characteristics
      Dimensions (LxWxH) (mm)29.85 X 26.65 X 1.5
      Net Weight3.28g
      Wireless
      Wi-Fi2.4GHz
      Bluetooth2402MHz~2483MHz
      Environment
      Operating Temperature0°C ~ 70°C
    • Ordering Info.

      Item No. Description
      EMB-WIFI-KIT11-R20 1T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 400mm RF cable, 2 x Antenna, RoHS
      EMB-WIFI-KIT01-R20 1T1R wifi module kit for embedded system, IEEE802.11a/b/g/n/ac WiFi with Bluetooth 4.0/3.0+HS, 1 x wifi module, 2 x 250mm RF cable, 2 x Antenna, RoHS
