FLEX-BX200-Q370

Intel® Coffee Lake AI Modular Box PC

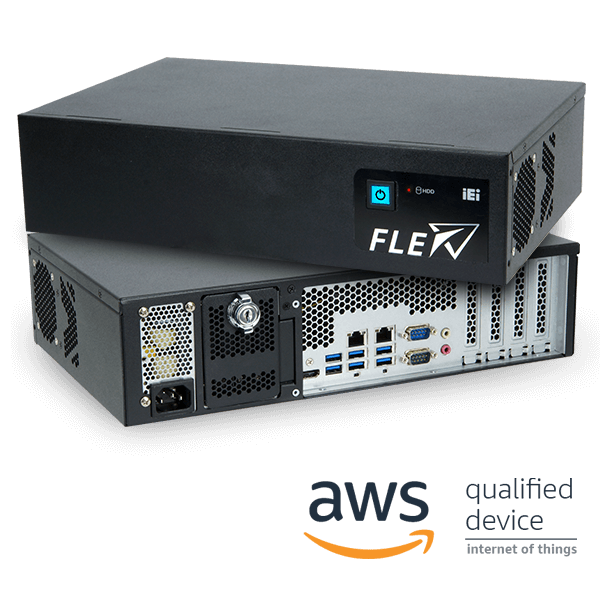

FLEX-BX200-Q370 AI Embedded System with AWS and Microsoft Azure Certified
IEI_FLEX_AI_Modular_Embedded_System-1
IEI_FLEX_AI_Modular_Embedded_System-2
IEI_FLEX_AI_Modular_Embedded_System-3
IEI_FLEX_AI_Modular_Embedded_System-4
  • FLEX-BX200-Q370 AI Embedded System with AWS and Microsoft Azure Certified
  • IEI_FLEX_AI_Modular_Embedded_System-1
  • IEI_FLEX_AI_Modular_Embedded_System-2
  • IEI_FLEX_AI_Modular_Embedded_System-3
  • IEI_FLEX_AI_Modular_Embedded_System-4
» 2U AI Modular PC with 8th/9th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor
» Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
» Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
» Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
» QTS-Gateway support
» Modular LCD panel kit design (Please refer: FLEX-PLKIT Selection)

Hardware Spec.

Form factor
SBC Form Factor 8th/9th Genertion Intel CoreTM i7/i5/i3 porcessors in the LGA 1151
Intel® 300 Series Chipsets Q370
FLEX AI Modular Box PC
I/O Interface
I/O Ports 1 x HDMI output
2 x GbE LAN
6 x USB 3.0 Type-A
2 x RS-232 DB-9 type
1 x Mic in
1 x Line out
1 x AC power in Inlet
Expansion Slots
Expansion Slots 2 x PCIe 3.0 by 8 (by 16 slot)
2 x PCIe 3.0 by 4 (maximum card size supported: 68 mm x 167 mm)
System
Cooling method / System Fan System fan
Drive Bays 4 x Accessible 2.5” SATA 6Gb/s HDD/SSD bay (RAID 0/1/5/10 support)
Indicator&Buttons
Buttons Power button with power LED (power on=Blue)
AT/ATX mode switch
Reset button
Color
Color Black C
Dimensions
Dimensions 357 x 230 x 88
Weight
Weight 4kg
Environment
Operating Temperature -20°C ~ 50°C (with SSD and TDP 65W processor)
-20°C ~ 40°C (with HDD or add-on cards without fan)
Humidity 5% ~95%, non-condensing

Ordering Information

FLEX-BX200-Q370-i3/25-R10 2U AI Modular BOX PC, Intel® Core™ i3-8100T Processor (4-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10
FLEX-BX200-Q370-P/25-R10 2U AI Modular BOX PC, Intel® Penturm® Gold G5400T Processor (2-core, 4-thread, 3.10 GHz) TDP 35W, 2xPCIex4 and 2xPCIex8 slots, 4x HDD bay, 250W PSU, R10

Package Contents

Package Content
  • Power cord

  • HDD door key
