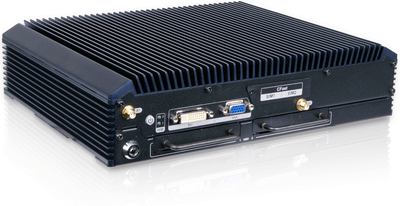

Rolling stock computer for traffic safety system, passenger information and video surveillance

End of Life

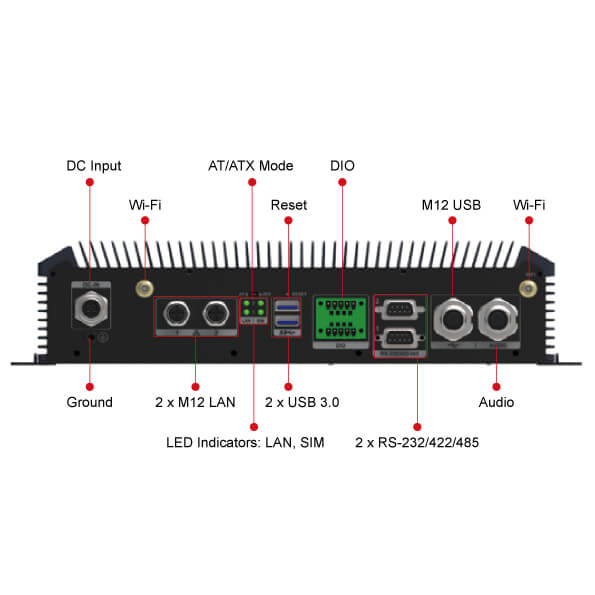

  • IRS-100-ULT3-railway-computer

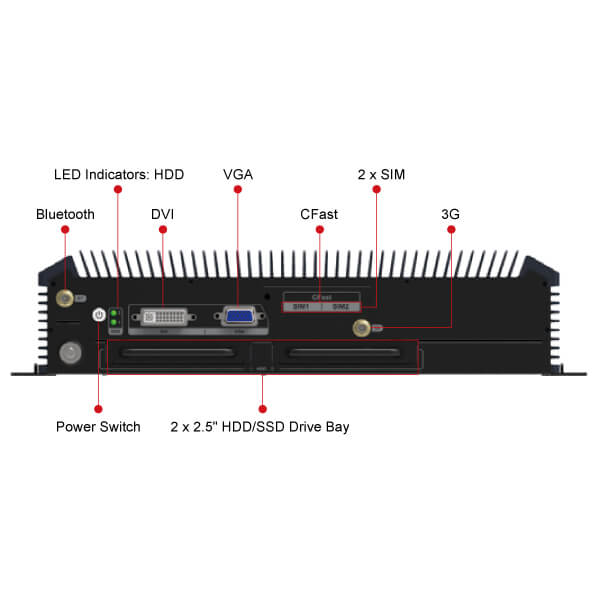

  • IRS-100-ULT3-railway-computer

End of Life Notice

* Effective Date: 2021/11/12

» Intel® Skylake ULT processor
» Dual M12 LAN port
» VGA / DVI dual display
» Dual SIM card design
» 24V / 110V DC input
» 2 x 2.5” hot-swappable SATA SSD drive bay
» EN 50155

Hardware Spec.

Form factor
SBC Form Factor CPU:Intel® Core™ i5-6300U processor (dual-core, 2.4 GHz, 15W TDP)
System Memory:2 x 260-pin DDR4L SO-DIMM 4GB pre-installed (system max. 32 GB)
I/O Interface
I/O Ports 2 x USB 3.0
1 x USB 2.0 (M12 connector)
2 x M12 connector PCIe GbE by Intel® I1211
2 x DB-9 RS-232/422/485 (with 1.5 kV isolation)
1 x Terminal block for 8-bit digital I/O (4-bit input/4-bit output, 1.5 kV isolation)
1 x VGA
1 x DVI-D
1 x Line-out, 1 x Mic-in
2 x SIM card slot
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini (PCIe/USB2.0)
1 x Full-size PCIe Mini (PCIe/USB2.0/SATA)
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5” SATA 6Gb/s SSD drive bay
(Please note that HDD2 and mSATA share the same SATA signal. Two devices could not work concurrently.)
Color Blue C
Dimensions 290 x 69 x 225
Weight 3.9 kg / 5.1 kg
Operating Temperature -40°C ~ 70°C with air flow (with industrial SSD/CF), compliant with EN 50155
Humidity 10% ~ 95%, non-condensing

Ordering Information

IRS-100-ULT3-i5/4G-R10 Fanless railway system with Intel® Core™ i5-6300U processor, (15W), 4GB DDR4L pre-installed memory, two 2.5" SATA SSD bays, VGA, DVI, two M12 GbE LAN
