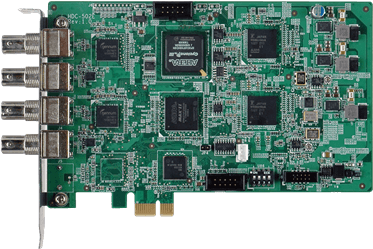

HDC-502E

PCIe Video/Audio Capture Card with Two Channel 3G-SDI Inputs, Two Channel 3G-SDI Loop Output, 1920x1080@60p and H.264 Hardware Encoder

End of Life

End of Life Notice

* Effective Date: 2018/05/18

» 2-channel 3G-SDI input with H.264 hardware compression and 2-channel 3G-SDI output
» High quality video encoding up to 1080p60
» Low Power Consumption
» SDK available for customer to create customized applications
» Applications: professional studio, broadcast and transportation video applications
» Windows/Linux OS supported

Hardware Spec.

Appearance
Dimension 188 mm x 125 mm
Audio Processing
Audio Compression MPEG-1 Audio Layer 2
Recording Data rate 256k
Capture Interface
Audio Input 2 x Audio Input Channel
2 x Audio Input-3G-SDI
Interface Type 1 x PCIe x 1
No Delay Passthrough 2 x Audio Output Channel
2 x Audio Output-3G-SDI
2 x Video Output-3G-SDI
2 x Video Output Channel
Video Input 2 x Video Input-3G-SDI
2 x Video Input Channel
Environment
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F), non-condensing
Functionality
Multiple Card Support 4 cards, 8 channels
Others
Power Consumption 14.2W (12V@0.76A, 3.3V@1.52A)
Software Support
SDK 1 x Linux
1 x Windows
OS Support 1 x Linux Ubuntu(16.04 (64-bit) (Kernel version: 4.4.0-21-generic))
1 x Microsoft Windows 7 32-bit
1 x Microsoft Windows 7 64-bit
System Requirement
CPU x86 PC compatible computer, Intel® Pentium® 4 2.0GHz or above for video record
Memory 1GB or more
Graphic Card Recommends using a DXVA or CUDA capable graphics card
for real-time video playback
Video Processing
Recording Data rate 2-30 Mbps
Recording Formats 1920 x 1080 x 60p
1280 x 720 x 60p
Video Compression 1 x Hardware Encoder(H.264/AVC High Profile Level 4.2)
Video Input Resolution 1920 x 1080 x 60p / 50p / 30p / 25p / 24p
1920 x 1080 x 60i / 50i
1280 x 720 x 60p / 50p / 30p / 25p / 24p
720 x 480 x 60i
720 x 576 x 50i

Ordering Information

HDC-502E-R10 PCI Express video/audio capture card with 2 SDI input channels, 2 loop-out channel, resolution support up to 1920x1080@60p, and Hardware H.264 codec

Package Contents

Package Content
  • 1 x HDC-502E capture card

  • 1 x QIG
