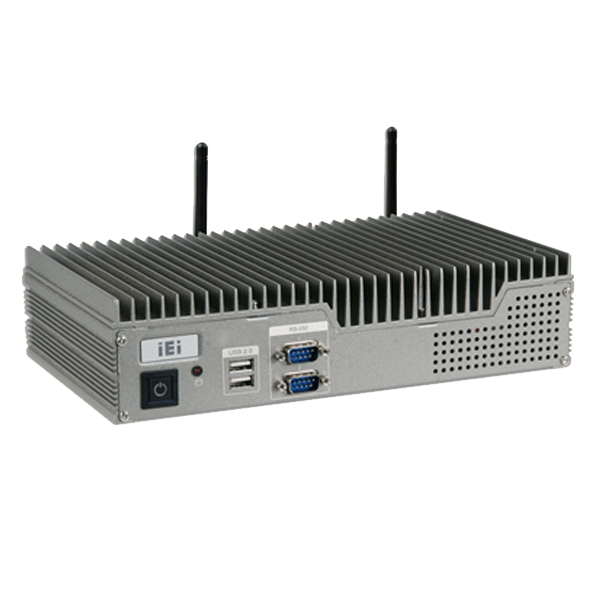

ECN-380-QM87

Fanless Embedded System with Intel® Solution

End of Life

End of Life Notice

* Effective Date: 2021/07/30

» Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz
» Triple video outputs » 2 x HDMI™ + VGA
» Two 2.5” SATA 6Gb/s HDD/SSD drive bays

Hardware Spec.

I/O Interface
I/O Ports 2 x USB 3.0
4 x USB 2.0
Ethernet:
2 x RJ-45
LAN1: Intel® I217LM PHY with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller
2 x RS-232
2 x HDMI™
1 x VGA
Resolution:
VGA: Up to 1920 x 1200@60Hz
HDMI™: Up to 2500 x 1600@60Hz
Audio:1 x Line-out, 1 x Mic-in
Wireless
1 x 802.11b/g/n (optional)
Expansion Slots
Expansion Slots PCIe Mini:
1 x Full-size PCIe Mini (support mSATA, SATA 6Gb/s signal only)
1 x Half-size PCIe Mini (only for iRIS-1010)
System
Cooling method / System Fan Fanles
Drive Bays 2 x 2.5’ SATA HDD/SSD bay
Physical Characteristics
Construction 12 V@4.6 A(Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory)
Color
Color Silver
Dimensions
Dimensions 265 x 134 x 56.7
Weight
Weight 2.4 kg/4.2 kg
Environment
Operating Temperature -10°C~60°C with air flow (SSD)
Humidity 5% ~ 95%, non-condensing

Ordering Information

ECN-380-QM87i-i5/WD/4G-R11 Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI™, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36V DC, RoHS
ECN-380-QM87i-i5/4G-R11 Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI™, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS
ECN-380-QM87i-C/WD/4G-R11 Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI™, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 9 V~36 V DC, RoHS
ECN-380-QM87i-C/4G-R11 Fanless embedded system with Intel® Celeron® 2000E 2.2 GHz, TDP 37W, 2 x HDMI™, 1 x VGA, 2 x 2.5'' SATA HDD bay, 4GB memory pre-installed, iRIS-1010, 12 V DC, RoHS
