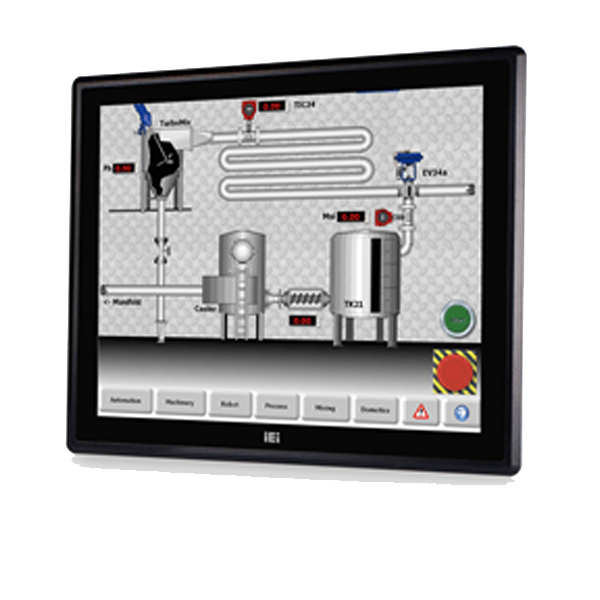

DM-F17A

17”~24” DM-F IP65 Industrial Monitor

» Robust IP65 aluminum front bezel
» Aesthetic ultra-thin bezel for seamless panel mount installation
» Wide range 9V~36V DC input
» HDMI™ / DisplayPort / VGA flexible video input solution
» Projected capacitive multi-touch and resistive single touch options
» Wide temperature support

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 350
Contrast Ratio 1000:1
LCD Size 17”(5:4)
Max Resolution 1280 (W) x 1024 (H)
Environment
Humidity 10% to 95% (non-condensing)
IP Level IP 65 compliant front panel
Operating Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 70°C
I/O Interface
I/O Ports and Switches 1 x VGA (DB-15)
1 x DVI
(F19A only)
1 x HDMI™(F17A only)
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 12V DC jack
1 x 9V-36V terminal block
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.26 x 0.26
Viewing Angle (H-V) 170° / 160°
Physical Characteristics
Cutout Dimensions 324 x 391
Dimensions (LxWxH) (mm) 341.4 x 408.4 x 49.3
Power
Power adapter 9V~36V DC
Touch
Touch Controller 5-wire resistive single touch window/ Penmount 6000
Touch Screen 2-point projected capacitive touch window/ EETI EXC7200
Weight
Weight 4.4 / 7.1

Ordering Information

DM-F17A/R-R32 17" 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB resistive touch screen, 9 ~36V DC input, Powder paint,R32
DM-F17A/PC-R32 17" 350 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, Powder paint,R32

Package Contents

Package Content
  • 1 x Touch Pen

  • 1 x USB Cable

  • 1 x VGA Cable
