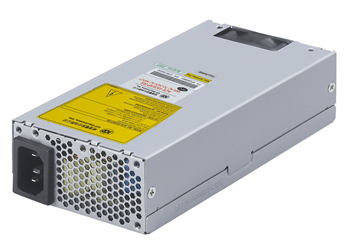

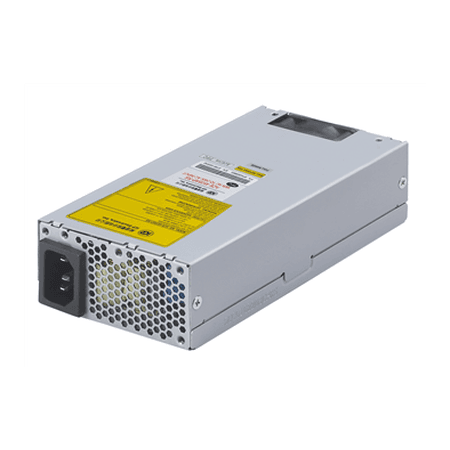

ACE-A615A/B

150 W 1U Type ATX Power Supply

End of Life

End of Life Notice

* Effective Date: 2019/10/04

150 W 1U Type ATX Power Supply

Hardware Spec.

General
Dimensions 150 x 81.5 x 40.5
Efficiency 85%
MTBF 100,000
Operating temperature 0°C ~ 50°C
Output Connector 20+4-pin ATX, 4-pin 12V CPU, 1 x FDD, 2 x HDD, 2 x SATA
Storage temperature -20°C ~ 80°C
Watt 150W
Input
Voltage 90~264 VAC Full Range
Output
Voltage +3.3V/10A+5V/14A,+12V/10A,-12V/0.3A,+5Vsb/2.5A

Ordering Information

ACE-A615B-RS-R10 1U flex ATX 150W Power Supply;90~264VAC;ERP;CCL;RoHS
