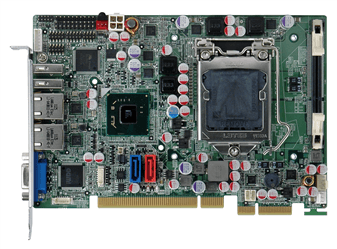

Half-size PCIe CPU Card supports LGA 1155 32nm Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® B65

End of Life

End of Life Notice

* Effective Date: 2019/08/29

» Half-size PCIe CPU card with LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» One 1333/1066 MHz DDR3/DDR3L (1.35V) SDRAM SO-DIMM supports up to 8 GB
» On-board embedded controller supports infrared and PECI 2.0 technologies
» One SATA 6Gb/s and dual Realtek PCIe GbE
» TPM V1.2 hardware security provided by the TPM module
» IEI One Key Recovery solution allows you to create raipd OS backup and recovery

Hardware Spec.

Humidity 10% ~ 95%, non-condensing
Operating Temperature -10°C ~ 60°C
Expansion Slots
Expansion Slots PCIe signal and PCI signal via golden finger
I/O Interface
Audio Supports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit
Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
Display 1 x VGA (up to 2048 x 1536 @75Hz)
Ethernet LAN1: Realtek RTL8111E PCIe GbE controller with ASF 2.0 support
LAN2: Realtek RTL8111E PCIe GbE controller
I/O Interface
I/O Interface 1 x I²C
2 x Internal RS-232
2 x Internal USB 2.0
1 x KB/MS
1 x SMBus
2 x USB 2.0
Power consumption 5V@3.17A, 12V@0.46A, Vcore_12V@7.26A, 5VSB@0.18A
(3.4GHz Intel® Core™ i7-2600K with two 2GB 1333MHz DDR3 memory)
Storage 1 x SATA 3Gb/s
1 x SATA 6Gb/s
Chipset Intel® B65
CPU Intel® Core™ i7/i5/i3/Pentium®/Celeron® processor
CPU Socket LGA1155
Memory Max. One 204-pin 1333/1066MHz DDR3 & DDR3L (1.35V) SO-DIMM supported
(system max. 8GB)
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset

Ordering Information

PICOe-B650-R10 Half-size PCIe CPU card supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel B65,DDR3,VGA,Dual Realtek PCIe GbE,USB 2.0,SATA 6Gb/s,HD Audio and RoHS

Package Contents

Package Content
  • 1 x PICOe-B650 single board computer

  • 1 x Dual RS-232 cable with bracket

  • 1 x USB cable

  • 1 x Mini jumper pack

  • 2 x SATA cable

  • 1 x QIG
