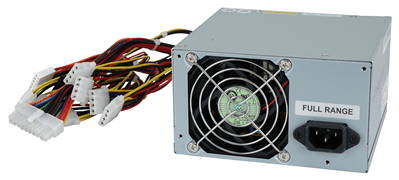

ACE-A130B

300 W PS/2 ATX Power Supply with ErP

End of Life

ACE-A130B-power-supply
ACE-A130B-power-supply
  • ACE-A130B-power-supply
  • ACE-A130B-power-supply

End of Life Notice

* Effective Date: 2019/09/25

300 W PS/2 ATX Power Supply with ErP

Hardware Spec.

General
Dimensions 140 x 150 x 86
Efficiency 85%
MTBF 100,000
Operating temperature -5°C ~ 50°C
Output Connector 1 x 20-pin ATX, 1 x 4-pin 12V CPU, 6 x HDD/CDROM, 1 x FDD, 1 x Extra +5V (P10), 2 x SATA
Storage temperature -40°C ~ 70°C
Watt 300W
Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 6A (RMS)@115VAC, 3A (RMS)@230VAC
Inrush Current 80A max. for 115VAC, 160A max. for 230VAC
Output
Voltage +3.3V/19A,+5V/16A,+12V1/17A,+12V2/17A,-12V/0.3A,+5Vsb/3A,-5V/0.2A
Over Voltage Protection +3.3V: 3.7V-4.8V
+5V: 5.7V-7.0V
+12V1 and +12V2: 13.3V-16V
Short Circuit Protection +3.3V, +5V, +12V or -12V shutdown and latch off

Ordering Information

ACE-A130B-S-R10 300W PS/2 ATX Power Supply with ERP/PFC & on/off switch,CCL;RoHS
ACE-A130B-R10 300W PS/2 ATX Power Supply with ERP& PFC,CCL;RoHS
