ACE-925A

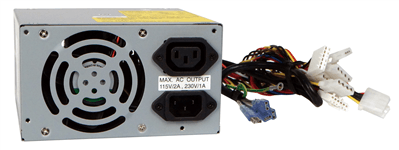

200 W PS/2 Type AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2020/08/13

200 W PS/2 Type AT Power Supply

Specifications

Hardware Spec.

General
Efficiency 68%
MTBF 130,000
Operating temperature 0°C ~ 50°C
Output Connector 1 x P8+P9, 5 x HDD/CDROM, 2 x FDD
Storage temperature -25°C ~ 70°C
Watt 200W



Input
Voltage 90 ~ 265 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Output
Voltage +5V/22A,+12V/7A,-5V/0.5A,-12V/0.7A

Ordering Information

ACE-925A-RS 200W AC input PS/2 type AT power supply;CCL;RoHS
