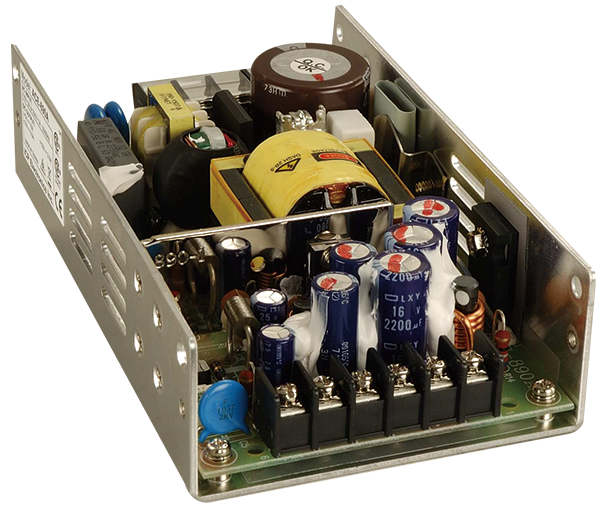

ACE-890A

86 W AC-DC Open Frame AT Power Supply

  • Overview

    86 W AC-DC Open Frame AT Power Supply
  • Specifications

    • Hardware Spec.

      Spec Item Description
      General
      Dimensions152.4 x 89 x 39
      Efficiency70%
      MTBF268000
      Operating temperature0°C ~ 50°C
      Output ConnectorOptional cable
      Storage temperature-20°C ~ 85°C
      Watt86W
      Input
      Voltage85 ~ 264 VAC Full Range
      Frequency47 Hz ~ 63 Hz
      Input Current2A (RMS)@115VAC, 1A (RMS)@230VAC
      Inrush Current25A max. for 115VAC, 50A max. for 230VA
      Output
      Voltage+5V/10A,+12V/2.5A,-12V/0.5A
    • Ordering Info.

      Item No. Description
      ACE-890A-RS 86W AC input industrial AT power supply;CCL;RoHS
