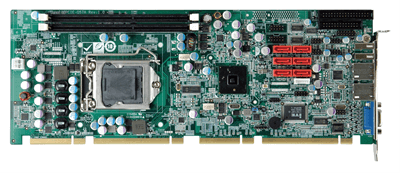

PICMG 1.3 CPU Card with LGA 1156 socket for Intel® Core™ i7/i5/i3 or Pentium® CPU

End of Life

End of Life Notice

* Effective Date: 2018/06/29

» PICMG 1.3 with LGA 1156 socket for Intel® Core™ i7/i5/i3 or Pentium® processor
» Supports 8 GB (max.) dual-channel 800/1066/1333 MHz DDR3 SDRAM
» Intel® GbE LAN controller with Intel® AMT 6.0 support
» Fourteen USB 2.0 ports and two COM ports
» Six SATA ports with RAID function
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

CPU Cooler
CPU Cooler CF-1156A-RS-R11
Humidity 5% ~ 95%, non-condensing
Operating Temperature 0°C ~ 60°C (32°F ~ 140°F)
Expansion Slots
Expansion Slots N/A
I/O Interface
Audio IEI AC-KIT-892HD-R10
7.1-channel HD audio kit via
the on-board 10-pin header
Digital I/O 8-bit Digital I/O
Display 1 x VGA
Ethernet LAN1: Intel® 82583V PCIe GbE
LAN2: Intel® 82578DM with
Intel® AMT 6.0 supported by
iEZman software UI
I/O Interface
I/O Interface 12 x Internal USB 2.0
1 x KB/MS
1 x LPT
2 x USB 2.0
1 x VGA
Power consumption 3.3V@0.89A, 5V@4.62A,
12V@4.35.A, 5Vsb@0.14A
(Intel® Core™ i5 660 3.3GHz
CPU with two 2GB 1066 MHz
DDR3 memory)
Storage 6 x SATA 3Gb/s (RAID 0/1/10/5)
1 x FDD
Chipset Intel® Q57
CPU Intel® Core™ i7/i5/i3, PentiumR
CPU Socket LGA1156
Memory Max. Two 240-pin 1066/1333MHz
dual-channel DDR3 SDRAM
DIMMs (system max. 8GB)
Watchdog Timer
Watchdog Timer Software programmable supports 1~255 sec. system reset

Ordering Information

PCIE-Q57A-R10 PICMG 1.3 with LGA1156 socket for Intel Core processor with VGA,Dual Intel GbE,SATAII, COM,USB 2.0 and Audio,RoHS

Package Contents

Package Content
  • 1 x PCIE-Q57A single board computer

  • 6 x SATA cable

  • 1 x Dual RS-232 cable

  • 1 x Mini jumper pack

  • 1 x USB cable

  • 1 x QIG
