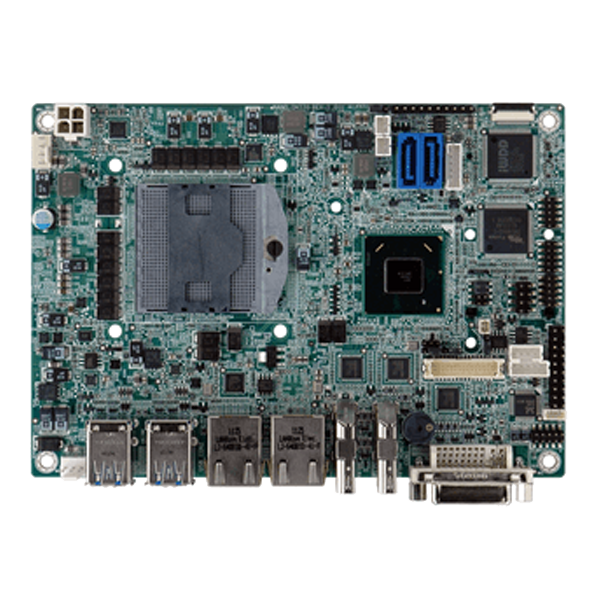

NANO-QM770

EPIC SBC Supports Socket G2 for Intel® 22nm Mobile CPU,

End of Life

End of Life Notice

* Effective Date: 2020/12/30

» EPIC SBC with Socket G2 for Intel® 22nm mobile processor
» Triple independent display supports with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)
» 1066/1333/1600 MHz DDR3 SDRAM supports up to 8 GB
» Supports three COM, four USB 3.0, two SATA 6Gb/s and audio
» Intel® GbE LAN with Intel® AMT 8.0 supported
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System
CPU Socket G2 for 3rd generation 22nm Intel® mobile processor
Chipset Intel® QM77
Memory One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SO-DIMM
Memory Max. 8GB
Physical Characteristics
Dimensions (LxWxH) (mm) 115 X 165
Net Weight 350g
Storage
Storage 2 x SATA :6Gb/s with 5V SATA power connector(RAID0,1 supported)
I/O Interface
Display Output 1 x DVI-I :up to 2048x1536@75Hz
2 x HDMI :up to 1920x1200@60Hz
1 x LVDS :18/24-bit dual-channel (up to 1920x1200@60Hz)
Ethernet 2 x LAN :LAN1: Intel® 82583V PCIe controller
LAN2: Intel® 82579 PHY with Intel® AMT 8.0
Audio Description: Realtek ALC662 HD codec
1 x Front Audio :2x5 pin
I/O Interface 4 x External USB 3.2 Gen1x1
Expansion 1 x PCIe mini Card Slot :Full-size(support mSATA)
Other Features
TPM 2x10 pin
Power
Power Consumption 12V@4.89A (Intel® 1.8GHz CPU with one 1333
MHz 4 GB DDR3 SO-DIMM)
Power Supply 12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode
Environment
Operating Temperature -10°C ~ 60°C
Storage Temperature -20°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

NANO-QM770-R10 EPIC SBC supports 3rd generation Intel Core i7/i5/i3 mobile processor,Dual HDMI/ DVI-I/ LVDS,Dual GbE,USB 3.0,PCIe Mini,SATA 6Gb/s and Audio

Package Contents

Package Content
  • 1 x NANO-QM770 single board computer

  • 1 x Audio cable

  • 1 x Mini jumper pack

  • 1 x Power cable

  • 2 x RS-232 cable

  • 1 x QIG (Quick Installation Guide)

  • 2 x SATA with power cable kit
