End of Life Notice
* Effective Date: 2019/08/28

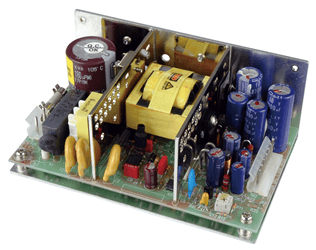

70 W AC-DC Open Frame AT Power Supply
Hardware Spec.
| General | |
|---|---|
| Dimensions | 127 x 81 x 50 |
| Efficiency | 70% |
| MTBF | 296,000 |
| Operating temperature | 0°C ~ 50°C |
| Output Connector | Optional cable |
| Storage temperature | -20°C ~ 85°C |
| Watt | 70W |
| Input | |
| Voltage | 85 ~ 264 VAC Full Range |
| Frequency | 47 Hz ~ 63 Hz |
| Input Current | 1.5A (RMS)@115VAC, 0.8A (RMS)@230VAC |
| Inrush Current | 25A max. for 115VAC, 50A max. for 230VAC |
| Output | |
| Voltage | +5V/7A,+12V/2.5A,-5V/0.3A,-12V/0.3A |
Ordering Information
| ACE-870A-RS | 70W AC input compact size AT power supply;CCL;RoHS |
|---|
