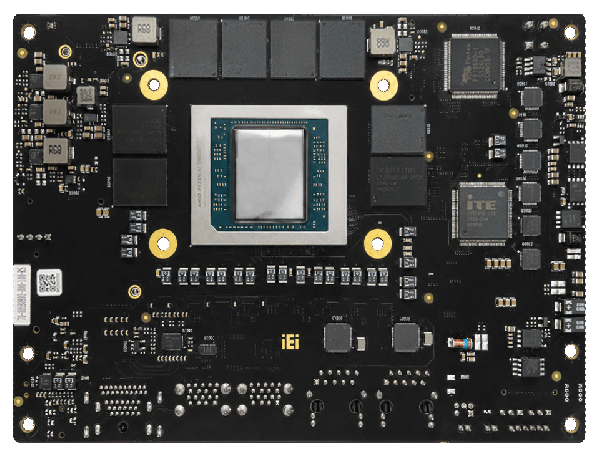

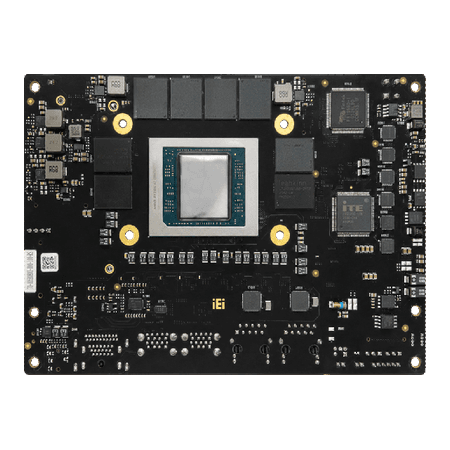

NANO-X100
» AMD X100 series
» Onboard 64GB LPDDR5x-8533
» Dual 2.5GbE LAN
» 4 x USB 3.2, 1 x HDMI™, 1 x DP
» 3 x M.2 expansion for Wi-Fi, SSD & 5G
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | EPIC SBC |
| System | |
|---|---|
| CPU | Ryzen AI Embedded X100 Series (Glacier Peak) |
| Memory | Onboard 64GB (8G x 8) LPDDR5-8533 |
| Cooling method / System Fan | Heatsink W/Fan |
| Supported OS | Windows® 11, Linux |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 115 x 165 |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port |
| 1 x HDMI™ | |
| Ethernet | 2 x LAN - LAN1: Intel® I226V 2.5GbE LAN2: Intel® I226V 2.5GbE |
| Audio | 1 x Mic |
| I/O Interface | 1 x DIO |
| 4 x External USB 3.2 Gen2x2 (Type-A) | |
| 1 x I²C (1×4 pin) | |
| 4 x Internal RS-232 : RS-232 (2×5 pin) | |
| 2 x Internal RS-232/422/485 : RS-232/422/485 (2×5 pin) | |
| Expansion | 3 x M.2(NGFF) - 1 × M.2 E Key 2230(Wifi) or 2242 1 × M.2 M Key 2242/2280 1 × M.2 B Key 3052(5G) or 2242 |
| Power | |
|---|---|
| Input | 12-24V DC Input Jack |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C (Test range -10°C ~ 65°C) |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~ 95% (non-condensing) |
| Certifications | |
|---|---|
| Safety & EMC | CE / FCC Compliant |
