UPC-F12M1-ADLP

12.1” Fanless Panel PC with Intel® Alder Lake-P Processor

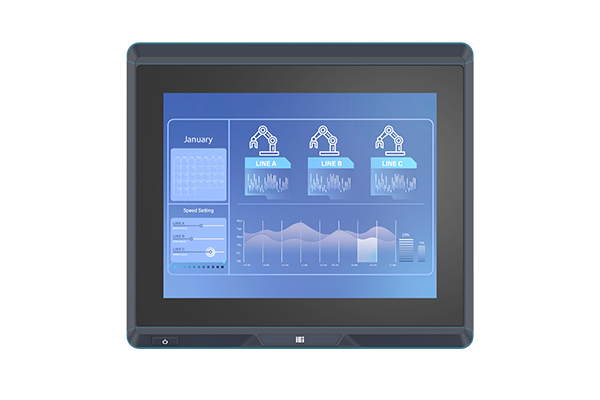

UPC-F12M1-ADLP Front

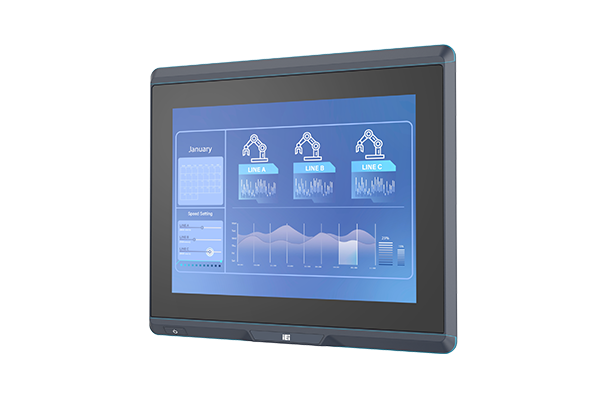

UPC-F12M1-ADLP Right

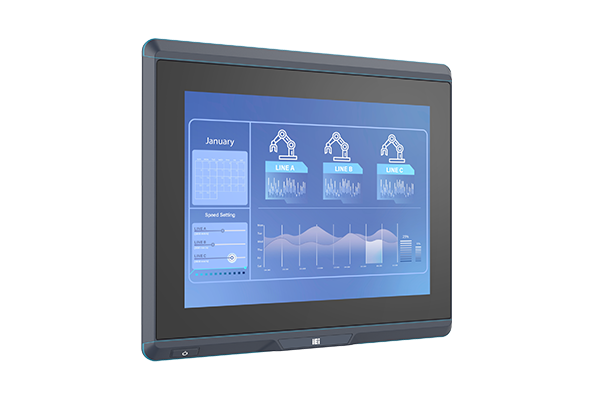

UPC-F12M1-ADLP Left

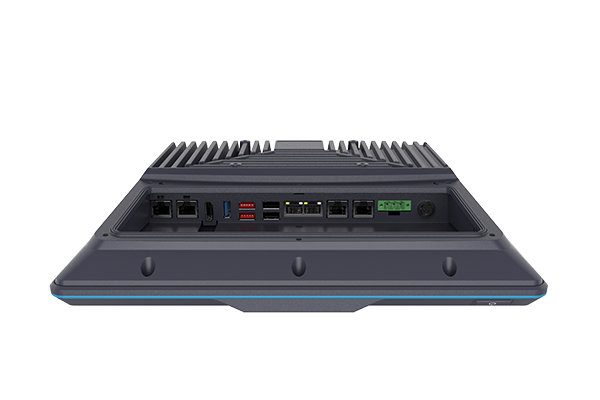

UPC-F12M1-ADLP Front IO

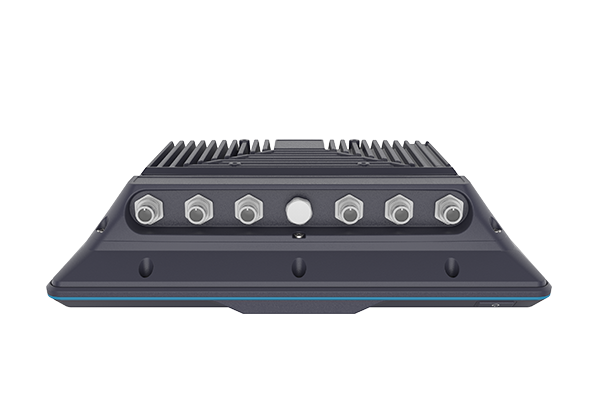

UPC-F12M1-ADLP Back IO

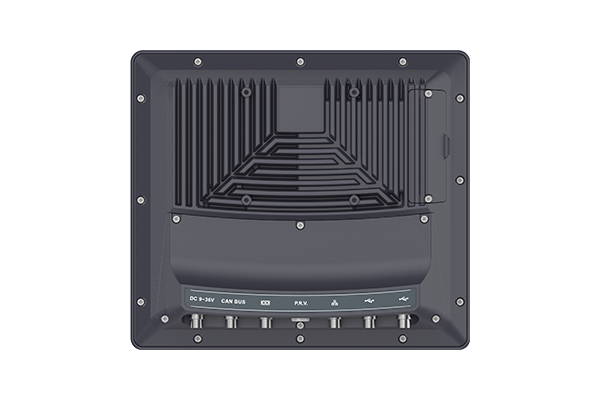

UPC-F12M1-ADLP Back
  • UPC-F12M1-ADLP Front
  • UPC-F12M1-ADLP Right
  • UPC-F12M1-ADLP Left
  • UPC-F12M1-ADLP Front IO
  • UPC-F12M1-ADLP Back IO
  • UPC-F12M1-ADLP Back
» Intel® Alder Lake-P Processor
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Full-body IP66
» Support WIFI 6E and Bluetooth 5.2

Specifications

Hardware Spec.

System
Cooling method / System Fan Fanless
CPU Intel® Alder Lake-P Celeron® 7305E /i5-1250PE SoC Processor
On-board Memory Dual channel 8GB LPDDR4x on board
Storage 1 x M.2 M key 2280 (PCIe Gen3 x4)
I/O Interface
Ethernet LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225-LM 2.5GbE controller
Expansion 1 x M.2 B key 3042/3052/3080 (SATA & PCIe Gen3 x1 & USB 3.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)
Environment
Operating Temperature -20°C ~ 60°C
Operating Vibration MIL-STD-810F 514.5G-1 (with SSD)
Operating Shock Half-sine wave shock 5G; 11ms; 100 shocks per axis
Safety & EMC CE/FCC/UKCA
Humidity 10% ~ 95%@40°C, non-condensing
Storage Temperature -20°C ~ 70°C
IP Level Full IP66
Physical Characteristics
Color Black
Mounting VESA 100mm x 100mm
Dimensions (LxWxH) (mm) 316 x 279 x 67
Net Weight 5kg
Construction Aluminum die-casting
LCD
Size 12.1” (4:3)
Resolution 1024 x 768
Brightness (cd/m2) 600
Contrast Ratio 700:1
LCD Color 16.7M
Pixel Pitch (mm) 0.24 x 0.24
Viewing Angle (H-V) 160°/140°
Backlight MTBF 50,000 hours
Touch
Touch Screen PCAP with USB interface (anti-UV/AG coating)
Touch Controller ILITEK: ILI2520
I/O Interface
I/O Interface 1 x CAN-bus (5pin)
1 x LAN (2.5GbE)
1 x Power In (1 x 9-36V power jack/ terminal)
1 x RS-232/422/485 (by DB9)
2 x USB 2.0 (8pin)
OS Support
OS Support Windows 10/11 IoT
Linux

Ordering Information

UPC-F12M1-ADLP-i5/PC/8G-R10 12.1” 600cd/m² XGA fanless ultra panel PC with Intel® Alder Lake-P Core™ i5-1250PE Processor, TDP 28W, 8GB LPDDR4x RAM, 802.11a/b/g/n/ac/ax Wi-Fi module, PCAP touch, M12 I/O, R10
UPC-F12M1-ADLP-C/PC/8G-R10 12.1" 600cd/m² XGA fanless ultra panel PC with Intel® Alder Lake-P Celeron® 7305E Processor, TDP 15W, 8GB LPDDR4x RAM, 802.11a/b/g/n/ac/ax WiFi module, PCAP touch, M12 I/O, R10

Package Contents

Package Content

  • 1 x UPC-F12M1-ADLP

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x Panel Mount Kit

  • 1 x QIG

  • 1 x Screw Pack

Download Specs.
