Mustang-V100-MX4

Computing Accelerator Card with 4 x Intel® Movidius™ Myriad™ X MA2485 VPU, PCIe Gen 2 x 2 interface, RoHS

End of Life

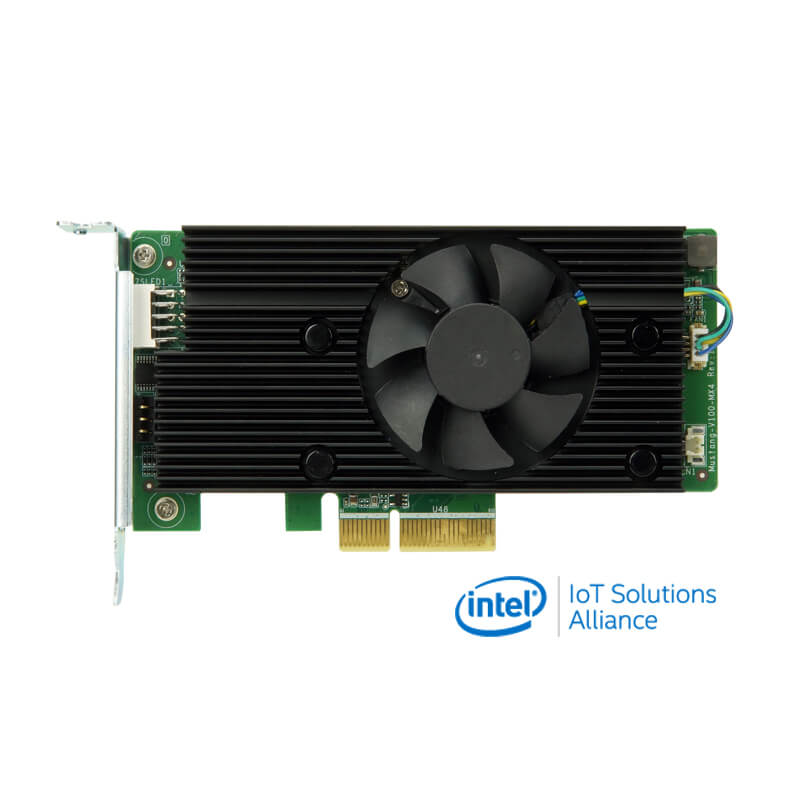

Mustang-V100-MX4 Accelerator Card
Mustang-V100-MX4 Accelerator Card
Mustang-V100-MX4 Accelerator Card
  • Mustang-V100-MX4 Accelerator Card
  • Mustang-V100-MX4 Accelerator Card
  • Mustang-V100-MX4 Accelerator Card

End of Life Notice

* Effective Date: 2024/04/09

» PCIe Gen 2 x 2 form factor
» 4 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, Approximate 15W
» Operating Temperature -20°C~60°C
» Powered by Intel's OpenVINO™ toolkit
» Multiple cards supported

Hardware Spec.

System
Chipset 4 x Intel® Movidius™ Myriad™ X MA2485 VPU
Cooling method / System Fan Active fan
Physical Characteristics
Dimensions (LxWxH) (mm) 113 X 56 X 23
Power
Power Consumption Approximate 15W
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 90%
Card Slot Interface
PCIe Gen 2 x 2

Ordering Information

Mustang-V100-MX4-R10 Computing Accelerator Card with 4 x Intel® Movidius™ Myriad™ X MA2485 VPU, PCIe Gen2 x2 interface, RoHS

Package Contents

Package Content
  • 1 x Full height bracket
