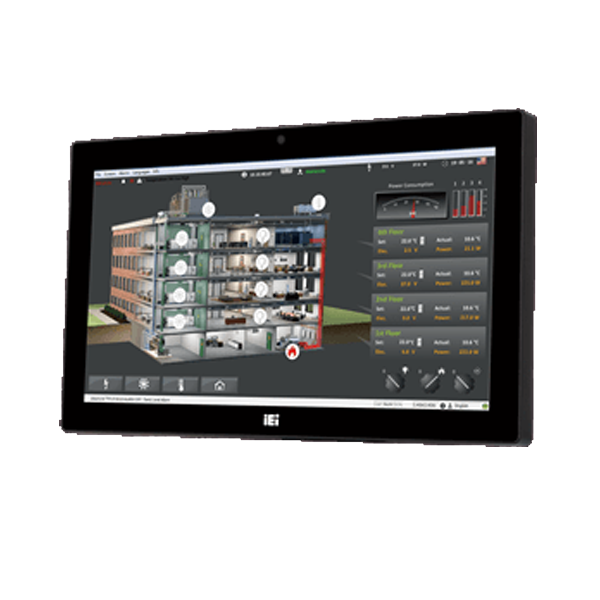

AFL3-W15C-ULT3

Intel Core™ i7/i5/i3 and Celeron® on-board Processor

  • Overview
    ● W15” light industrial interactive panel PC
    ● 9 V ~ 30 V wide range DC power input
    ● Selectable AT/ATX power mode
    ● Built-in speakers
    ● One mSATA slot
    ● IP64 compliant front panel
    ● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

  • Specifications

    • Hardware Spec.

      Spec Item Description
      System
      Cooling method / System FanFanless
      CPU6th Generation Intel® Core™ i5 and Celeron® on-board processor
      Storage1 x 2.5” SATA 3Gb/s HDD bay
      1 x M.2 M key PCIe storage (2280 or 22110)
      1 x mSATA slot
      Communication
      BluetoothBluetooth v4.0
      WirelessIEEE 802.11a/b/g/n/ac
      I/O Interface
      Ethernet2 x Intel® I211 PCIe GbE controller
      I/O Ports and Switches1 x RS-232 by DB-9 (RI/5V/12V)
      1 x RS-232/422/485 by DB-9 (RI/5V/12V)
      2 x GbE LAN
      4 x USB 3.0
      1 x HDMI output
      1 x Power switch
      1 x Reset button
      1 x AT/ATX switch
      1 x 9-30V lockable power jack
      AudioAMP 3W + 3W (internal speakers)
      Audio CodecALC892
      RAMTwo 260-pin 2133/1867 MHz dual-channel
      DDR4 SO-DIMMs (system max. 32 GB)
      Power
      Power consumption12V@6A (Intel® Core™ i5-6300U CPU with 4GB DDR4 2133 MHz DDR4 memory)
      Environment
      Operating Temperature-20°C~50°C
      Safety & EMCCE / FCC
      Humidity10% to 95% (non-condensing)
      Storage Temperature-20°C~60°C
      IP LevelIP 64 compliant front panel
      Physical Characteristics
      ColorBlack C
      MountingPanel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
      Dimensions (LxWxH) (mm)396 x 250 x 64
      Net Weight4.5Kg
      Construction Front PanelPC + ABS Plastic
      Weight
      Weight4.5/6.5Kg
      LCD
      Size15.6”
      Resolution1366 x 768 (16:9)
      Brightness (cd/m2)400
      Contrast Ratio500:1
      LCD Color16.2M
      Pixel Pitch (mm)0.240 (H) x 0.240 (V)
      Viewing Angle (H-V)170º / 160º
      Backlight MTBF50000 (LED backlight)
      Touch
      Touch Screen5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
      Touch ControllerPenMount DMC9000/ EETI EXC7200
      Other Features
      Microphonedigital microphone
      Camera2-megapixel with low light function
      OSD FunctionSoftware OSD
      System CoolingFanless
      I/O Interface
      I/O Interface1 x RS-232 (DB-9 (RI/5V/12V))
      1 x RS-422/485 (DB-9 (RI/5V/12V))
      4 x USB 3.2 Gen1x1
      1 x HDMI (output)
      2 x LAN (Gbe)
      1 x Reset Button
      1 x Power Switch
      1 x AT/ATX switch
      1 x Power In (9-30V lockable power jack)

    • Ordering Info.

      Item No. Description
      AFL3-W15C-ULT3-i5/PC/4G-R14 Wide 15.6” 400 cd/m² 1366x768 fanless Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone , with AG, R14
      AFL3-W15C-ULT3-C/PC/4G-R14 Wide 15.6” 400 cd/m² 1366x768 fanless Panel PC with Intel® 14nm 6th Generation Mobile Celeron®3955U (15W) on-board Processor (ULT), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,with AG,R14

    • Package Contents

      • 4 x Round head machine screw

      • 4 x Pan head machine screw

      • 2 x Fix holder

      • 1 x Power cord

      • 1 x Power adapter 96W; Vin: 90V~264V AC; Vout: 12VDC

      • 1 x RJ-45 to DB-9 COM port transfer cable

      • 1 x Touch pen
