Overview● Intel® Skylake ULT /Baytrail processor● 4 x PoE IEEE802.3af● 2x Hot-swappable 2.5"" drive bay● Optional 3G/Wi-Fi● 2 x RS-232, 1 x Isolated RS-422/485● 4 x DI/DO● 1 x HDMI (lockable), 1 x VGA

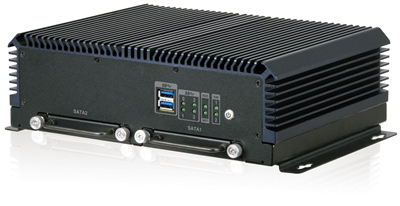

In-Vehicle Computer : IVS Series
The IVS series in-vehicle computer is designed with reliable performance for harsh environments. Rich I/O ports are provided to connect with multiple peripheral devices in vehicle for different applications.
Wide Range Temperature
IEI fanless product series has leading-edge thermal design and has been tested under extreme temperature conditions in order to ensure that IEI fanless products can work in any harsh environment.
All vehicles, vehicle parts, and electronic products for the car must be enforced EMC testing. IEI IVS and IKARPC In-Vehicle series product all get E-Mark certification which are required for the European market.
Vibration and Shock Resistance
In-vehicle systems must be able to withstand the shock and vibration that comes with driving a vehicle. IEI transportation series meet the requirement for different environments and has passed particular verification dependent on MILSTD-810G 514.5 standard, EN61373 for railway market, EN60721 for in-vehicle market.
Particular Power Solution
We design wide power input to prevent surge when starting engine. We develop power management for users. For in-vehicle market, we design wide DC input and ACC power to ensure users can operate the system well.
[Webinar] Smart Transportation : IVS-300-ULT3 In Vehicle Computer
Fully Integrated I/O
Spec Item Description Form factor SBC Form Factor CPU: Intel® Skylake ULT /Baytrail processor
System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface I/O Ports 2 x USB3.0
4 x PoE IEEE802.3af (one port max 15.4W)
2 x DB-9 RS-232
1 x DB-15 isolated RS-422/485
Isolated 8-bit digital I/O (4-bit input, 4-bit output)
1 x DB9 CAN-Bus/OBD-II
1 x VGA
1 x HDMI
1 x Mic in, 1 x Line out
2 x SIM slot
Expansion Slots Expansion Slots 1 x Half-size PCIe Mini (reserved for Wi-Fi)
1 x Full-size PCIe Mini (reserved for 3G)
1 x Full-size PCIe Mini (only for skylake platform)
System Cooling method / System Fan Fanless Drive Bays 2 x 2.5"" SATA 3Gb/s HDD/SSD drive bay Indicator&Buttons Indicators 8 x LED (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM) Color Color Blue C Dimensions Dimensions 255 x 80 x 185 Weight Weight 3kg/4.5kg Environment Operating Temperature -20°C ~ 60°C with air flow Humidity 5% ~ 95%, non-condensing
Item No. Description IVS-300-BT-J1/4G-R10 Fanless embedded system with Intel® Celeron® Processor J1900 (10W) Processor with 4GB DDR3L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs IVS-300-ULT3-i5/4G-R10 Fanless embedded system with Intel® Core™ i5-6300U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs IVS-300-ULT3-i7/4G-R10 Fanless embedded system with Intel® Core™ i7-6600U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI, VGA, two 2.5" removable SATA HDD bay, RoHs
1 x ACC power cable
1 x GPS/GSM antenna
