Overview

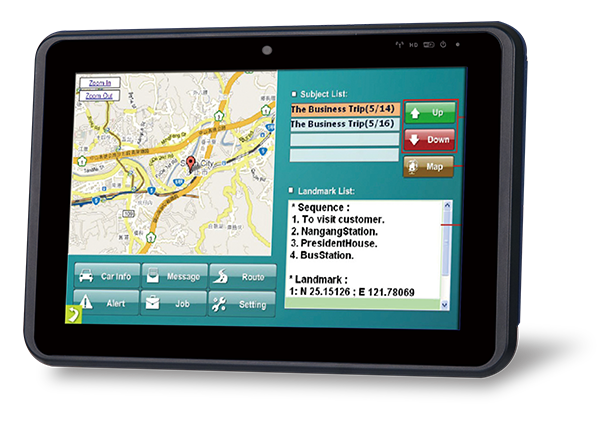

● 10.1” TFT LCD with projected capacitive touchscreen● Intel® Atom™ E3826 1.46 GHz CPU● Windows® Embedded Standard 7● Option HSUPA/GPRS/GSM, Wi-Fi and Bluetooth● Built-in GPS function● Built-in OBD-II/CAN 2.0 -
Specifications
-
Hardware Spec.
Spec Item Description Form factor SBC Form Factor CPU: Intel® Atom™ processor E3826 (dual-core, 1.46 GHz, 7W)
Chipset: SoC
System Memory:On-board 2 GB SDRAMI/O Interface I/O Ports 1 x USB3.0
1 x USB2.0
1 x GbE LAN
2 x DB-9 RS-232
8-bit digital I/O (4-bit input, 4-bit output)
1 x DB-9 CAN-bus/OBD-II
1 x HDMI
1 x Line out, 1 x Mic in
2 x SIM slotExpansion Slots Expansion Slots 1 x Full-size PCIe Mini (reserved for 3G module),
1 x Full-size PCIe Mini (reserved for Wi-Fi module)System Cooling method / System Fan Fanless Drive Bays 1 x 2.5” SATA 3Gb/s HDD/SSD drive bay Indicator&Buttons Indicators Power/Wi-Fi/HDD/3.5G Color Color Blue C + Black C Dimensions Dimensions 277 x 186 x 27 Weight Weight 1.3 kg/2.8 kg Environment Operating Temperature -20°C ~ 60°C with air flow Humidity 5% ~ 95%, non-condensing -
Ordering Info.
Item No. Description IKARPC-W10A-BT-E3/2G-R10 10.1" 350 cd/m2 1280 x 800, In Vehicle Panel PC with Intel® Atom E3826 1.46GHz, 7W TDP, 2GB DDR3L on borad memory, OBDII, GPS on borad, 2M Camera, ROHS -
Package Contents
-
1 x ACC power cable
-
1 x GPS/GSM antenna
-
-
