Single Board Computer

Full Size Single Board Computer

The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

PCIE-RPL-Q670

PCIE-RPL-Q670

Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)

LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)

Two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display
2 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

● Triple independent display
2 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● Internal I/O Interface
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54) (RS485 support AFC)
4 x USB 2.0 to backplane
1 x USB 3.2 Gen2 (Type A 180°)
4 x USB 3.2 Gen1 (2x10 pin P=2.00) (5Gb/s)
2 x RS-232 (2x5 pin, P=2.54)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● Internal I/O Interface
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54) (RS485 support AFC)
4 x USB 2.0 to backplane
1 x USB 3.2 Gen2 (Type A 180°)
4 x USB 3.2 Gen1 (2x10 pin P=2.00) (5Gb/s)
2 x RS-232 (2x5 pin, P=2.54)

PCIE-Q470 Full-size PICMG 1.3 CPU

PCIE-Q470

Full-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4, HDMI™, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, IAUDIO and RoHS

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G

4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128G

One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)

One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)

● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
4 x SATA 6Gb/s (Support RAID 0/1/5/10)
6 x USB 2.0 (2x4 pin, P=2.54)
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin)
1 x USB 3.2 Gen1 (Type A 180°)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-422/485 (1x4 pin, P=2.0)

1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)

1 x PCIe x16 signal via golden finger
(Support x16, or x8 + x8, or x4 + x4 + x8)
4 x PCIe x1 signal from PCH via golden finger (support1 x4, or 4 x1)
4 x PCI signal via golden finger
1 x M.2 A Key (2230) (with PCIe Geb3 x2/USB 2.0)
1 x M.2 B Key (3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)
1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)

SPCIE-C246 Full Size Single Board Computer

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI™, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS

‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246

‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC

‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)

‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI™ and DP, Dual Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS

● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370

● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB

Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB

Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)

Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)

● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)

● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170

Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB

Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB

One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)

One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)

1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,

Intel® H81
LGA1150

Intel® H81
LGA1150

Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB

Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB

Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

Half Size Single Board Computer

IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

HPCIE-RPL-Q670

Half-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI™, DP, Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

CPU:
LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)

CPU:
LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W)

Two 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs supported up to 96GB

Two 262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs supported up to 96GB

Double independent display
1 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

Double independent display
1 x interface DP (up to 4k @60Hz) 180° (DP++)
1 x HDMI™ (up to 4k @30Hz)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● Internal I/O Interface
2 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.00) (RS485 support AFC)
4 x USB 2.0 (2x4 pin, P=2.54)
1 x USB 3.2 Gen2 (Type A 180°)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
● Internal I/O Interface
2 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.00) (RS485 support AFC)
4 x USB 2.0 (2x4 pin, P=2.54)
1 x USB 3.2 Gen2 (Type A 180°)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)

PICOe-EHL Front

PICOe-EHL

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

Half-size PCIe CPU Card supports Intel® Elkhart Lake Processor Intel® Celeron® J6412 on-board SoC, with 8GB LPDDR4x memory on board default, DDR4, HDMI™, iDPM display module, Dual Lan, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS

LPDDR4x-3200Gbps 8GB, up to 16GB

LPDDR4x-3200Gbps 8GB, up to 16GB

● Dual independent displays
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Dual independent displays
1 x HDMI™ 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
2 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot

1 x M.2 M Key (2242/2280, PCIe x2)
1 x PCIe x4 slot (1 x PCIe x4 or 4 x PCIe x1)
4 x PCI slot

HPCIE-Q470 Half-size PICMG 1.3 CPU Card

HPCIE-Q470

Half-size PICMG 1.3 CPU Card supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium®, Celeron® CPU with Q470/Q470E, DDR4 SO-DIMM, HDMI™, Dual Intel® 2.5GbE, USB 3.2 Gen2, SATA 6Gb/s, M.2, IAUDIO, and RoHs

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G

2 x 260-pin 2933 MHz Dual-channel DDR4 SO-DIMM,support up to 64G

One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)

One display output
1 x HDMI 1.4 (up to 4096 x 2160@30Hz)

● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)

● External I/O Interface
2 x USB 3.2 Gen1 (5Gb/s)
1 x USB 3.2 Gen2 (10Gb/s) by USB Type-C

● Internal I/O Interface
2 x SATA 6Gb/s (Support RAID 0/1 )
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0) (RS-485 support AFC)

16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4

16-lanes PCIe signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
4-lanes PCIe signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
1 x M.2 A key (2230) with PCIe Gen3 x2/USB 2.0
1 x M.2 M key (2280/2242) with PCIe Gen3 x4

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA

On Board

On Board

One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)

One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)

Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)

Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)

1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA

1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA

Backplane

IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

PXE-11S1

PICMG 1.3 Passive Backplane

1 x PCIe x16 (x8 signal)
1 x PCIe x1
3 x PCIe x4 (x4 signal)
1 x PCIe x4 (x2 signal)
4 x PCI Slots
1 x M.2 A key

1 x PCIe x16 (x8 signal)
1 x PCIe x1
3 x PCIe x4 (x4 signal)
1 x PCIe x4 (x2 signal)
4 x PCI Slots
1 x M.2 A key

PXE-14S1

PICMG 1.3 Passive Backplane

1 x PCIe x16（Gen3 x16 signal）
12 x PCI

1 x PCIe x16（Gen3 x16 signal）
12 x PCI

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis

2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card

2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card

2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S

2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI

PCIe x 8:2
PCI Slot:4

PCIe x 8:2
PCI Slot:4

BP-3S

3-slot backplane with three ISA slots

ISA Slot:3

ISA Slot:3

BP-4S

4-slot backplane with four ISA slots

ISA Slot:4

ISA Slot:4

BP-6S

6-slot backplane with six ISA slots

ISA Slot:6

ISA Slot:6

BP-8S

8-slot backplane with eight ISA slots

ISA Slot:8

ISA Slot:8

BP-10S

10-slot backplane with ten ISA slots

ISA Slot:10

ISA Slot:10

IP-6S

6-slot backplane with three PCI slots and two ISA slots

PCI Slot:3
ISA Slot:2

PCI Slot:3
ISA Slot:2

IP-10S

10-slot backplane with four PCI slots and five ISA slots

PCI Slot:4
ISA Slot:5

PCI Slot:4
ISA Slot:5

IP-5SA2

5-slot backplane with four PCI slots

PCI Slot:4

PCI Slot:4

IP-3S

3-slot backplane with two PCI slots

PCI Slot:2

PCI Slot:2

HPE-3S2

3-slot backplane with one PCI slot and one PCIe x4 slot

PCIe x 4:1
PCI Slot:2

PCIe x 4:1
PCI Slot:2

HPE-4S2

4-slot backplane with two PCI slots and one PCIe x4 slot

PCIe x 4:1
PCI Slot:2

PCIe x 4:1
PCI Slot:2

HPE-5S1

5-slot backplane with four PCI slots

PCI Slot:4

PCI Slot:4

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot

PCIe x 4:1
PCI Slot:4

PCIe x 4:1
PCI Slot:4

HPE-8S0

7-slot backplane with four PCI slots and two PCIe x1 slots

PCIe x 1:2
PCI Slot:4

PCIe x 1:2
PCI Slot:4

PCI-5SD6

2U chassis backplane with four PCI slots

PCI Slot:L2+R2

PCI Slot:L2+R2

PCI-6SD

2U chassis backplane with two PCI slots and two ISA slots

PCI Slot:L1+R1
ISA Slot:L1+R1

PCI Slot:L1+R1
ISA Slot:L1+R1

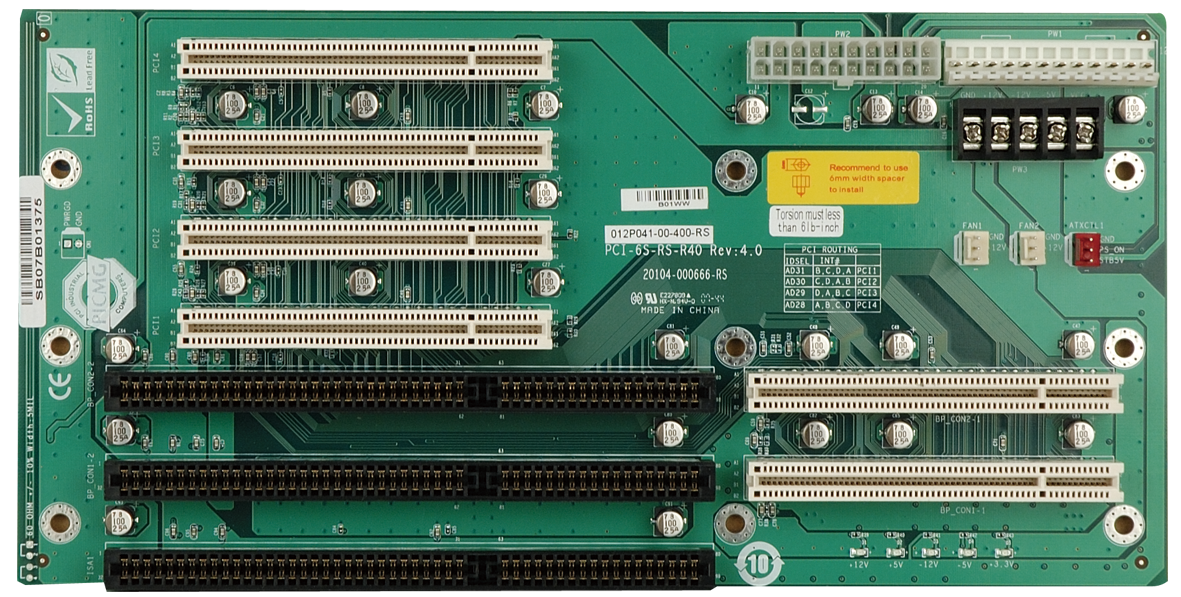

PCI-6S

6-slot backplane with four PCI slots and two ISA slots

PCI Slot:4
ISA Slot:2

PCI Slot:4
ISA Slot:2

PCI-7S

7-slot backplane with four PCI slots and three ISA slots

PCI Slot:4
ISA Slot:3

PCI Slot:4
ISA Slot:3

PCI-10S

10-slot backplane with four PCI slots and five ISA slots

PCI Slot:4
ISA Slot:5

PCI Slot:4
ISA Slot:5

PCI-12S

12-slot backplane with four PCI slots and seven ISA slots

PCI Slot:4
ISA Slot:7

PCI Slot:4
ISA Slot:7

PCI-14S

14-slot backplane with four PCI slots and nine ISA slots

PCI Slot:4
ISA Slot:9

PCI Slot:4
ISA Slot:9

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots

PCIe x 16:1
PCIe x 1:3
PCI Slot:8

PCIe x 16:1
PCIe x 1:3
PCI Slot:8

PE-2SD1

2-slot backplane with one PCIe slot

PCIe x 16:1

PCIe x 16:1

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot

PCIe x 16:1
PCIe x 4:1
PCI Slot:1

PCIe x 16:1
PCIe x 4:1
PCI Slot:1

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size

PCIe x 16:1
PCIe x 4:1
PCI Slot:2

PCIe x 16:1
PCIe x 4:1
PCI Slot:2

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PCIe x 16:1
PCIe x 1:3

PCIe x 16:1
PCIe x 1:3

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots

PCIe x 16:1
PCIe x 1:2
PCI Slot:2

PCIe x 16:1
PCIe x 1:2
PCI Slot:2

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots

PCIe x 16:1
PCIe x 4:1
PCI Slot:3

PCIe x 16:1
PCIe x 4:1
PCI Slot:3

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots

PCIe x 16:1
PCIe x 1:3

PCIe x 16:1
PCIe x 1:3

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots

PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2

PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:2
PCI Slot:3

PCIe x 16:1
PCIe x 1:2
PCI Slot:3

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:3
PCI Slot:3

PCIe x 16:1
PCIe x 1:3
PCI Slot:3

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots

PCIe x 16:1
PCIe x 1:4
PCI Slot:3

PCIe x 16:1
PCIe x 1:4
PCI Slot:3

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PCIe x 16:1
PCIe x 1:4
PCI Slot:4

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS

PCIe x 8:1
PCIe x 1:12

PCIe x 8:1
PCIe x 1:12

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS

PCIe x 4:5

PCIe x 4:5

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS

PCIe x 8:1
PCIe x 4:3
PCI Slot:3

PCIe x 8:1
PCIe x 4:3
PCI Slot:3

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)

PCIe x 16:1
PCI Slot:2

PCIe x 16:1
PCI Slot:2

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots

PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PCIe x 16:1
PCIe x 1:4
PCI Slot:4

Industrial Motherboard

IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

KINO-AH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, double 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

CPU:
LGA1200 socket supports 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

CPU:
LGA1200 socket supports 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs Supported up to 64GB

Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs Supported up to 64GB

Dual independent display
2 x HDMI™ (up to 4096 x 2160@30Hz)

Dual independent display
2 x HDMI™ (up to 4096 x 2160@30Hz)

● External I/O Interface
2 x RS-232 (DB-9)
2 x USB 2.0 (Type-A)
4 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
● Internal I/O Interface
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)

● External I/O Interface
2 x RS-232 (DB-9)
2 x USB 2.0 (Type-A)
4 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
● Internal I/O Interface
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) (PCIe Gen 3 x2 /USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

IMB-AM5

micro-ATX motherboard supports AMD 7000 & 8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB

Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 192GB

● Triple independent display
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI™ (up to 4096 x 2304@30Hz)

● Triple independent display
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI™ (up to 4096 x 2304@30Hz)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface
1 x RS-232/422/485 (RS-485 support AFC) (2x5 pin, P=2.54)
4 x SATA 6Gb/s
4 x RS-232 (2x5 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.54)

● External I/O Interface
2 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface
1 x RS-232/422/485 (RS-485 support AFC) (2x5 pin, P=2.54)
4 x SATA 6Gb/s
4 x RS-232 (2x5 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.54)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
2 x PCIe x4 open-end (Slot3 & 4) Gen4 (slot3 will disable with Ryzen™ 8000G PHX1)
1 x PCIe x1 (Slot 2, PCIe Gen4 x1 signal)
1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (disable with Ryzen™ 8000G PHX1)
1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support)

1 x PCIe x16 (Slot1) with x8 Signal Gen4
2 x PCIe x4 open-end (Slot3 & 4) Gen4 (slot3 will disable with Ryzen™ 8000G PHX1)
1 x PCIe x1 (Slot 2, PCIe Gen4 x1 signal)
1 x M.2 M Key (2242/2280, PCIe x4) NVMe support (disable with Ryzen™ 8000G PHX1)
1 x M.2 M Key (2242/2280, PCIe x2) NVMe support (NVME RAID 0/1 support)

KINO-ADL-N

Mini-ITX SBC with Intel® Alder Lake-N SoC Processor,DDR5 SO-DIMM, 12~28V DC input, Triple Display, Intel 2.5GbE, M.2, RoHS

● CPU:
Intel® Alder Lake-N SoC Processor

● CPU:
Intel® Alder Lake-N SoC Processor

1 x 262-pin 4800 MHz DDR5 SO-DIMM

1 x 262-pin 4800 MHz DDR5 SO-DIMM

● Triple Independent Displays
1 x DP 1.4 4k@60Hz
2 x HDMI 1.4 4k@30Hz

● Triple Independent Displays
1 x DP 1.4 4k@60Hz
2 x HDMI 1.4 4k@30Hz

● External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
2 x USB 2.0
● Internal I/O Interface
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x USB 3.2 (Type A, 180°) (Only embedded CPU)

● External I/O Interface
2 x USB 3.2 Gen 2 (10Gb/s)
2 x USB 2.0
● Internal I/O Interface
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
1 x USB 3.2 (Type A, 180°) (Only embedded CPU)

KINO-AM5

Mini-ITX SBC with AMD Ryzen™ 7000 & 8000G Series Desktop Processors, DDR5 SO-DIMM, Triple Display, Dual Intel 2.5GbE , USB3.2, M.2, RoHS

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

● CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB

Two 262-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI (up to 4096 x 2304@30Hz)

● Triple independent display
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI (up to 4096 x 2304@30Hz)

● External I/O Interface
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
1 x RS-232/422/485
● Internal I/O Interface
2 x SATA 6Gb/s
1 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)

● External I/O Interface
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
1 x RS-232/422/485
● Internal I/O Interface
2 x SATA 6Gb/s
1 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)

1 x PCIe x16 (Slot1) with Gen4 x16 Signal (Ryzen8000G PHX1 only x8 Signal,PHX2 only x4 Signal)
1 x 2280 M.2 M key (PCIe Gen4 x4)
1 x 2230 M.2 A key (PCIe Gen3 x1 & USB 2.0) (A key will disable with Ryzen8000G PHX2)

1 x PCIe x16 (Slot1) with Gen4 x16 Signal (Ryzen8000G PHX1 only x8 Signal,PHX2 only x4 Signal)
1 x 2280 M.2 M key (PCIe Gen4 x4)
1 x 2230 M.2 A key (PCIe Gen3 x1 & USB 2.0) (A key will disable with Ryzen8000G PHX2)

IMBA-AM5

ATX motherboard supports AMD 7000&8000G PHX1 series processor, DDR5, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

CPU:
AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors

Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB

Four 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs supported up to 128GB

Triple independent display:
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI™ (up to 4096 x 2304@30Hz)

Triple independent display:
1 x DP (up to 4096 x 2304@60Hz)
2 x HDMI™ (up to 4096 x 2304@30Hz)

● External I/O Interface
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface
2 x USB2.0 (2x4 pin, P=2.54)
1 x RS-232/422/485 (RS-485 support AFC) (2x5 pin, P=2.54)
2 x USB 3.2 Gen1 (2 x 10 pin) (5Gb/s)
4 x SATA 6Gb/s (RAID 0/1/10 supported)
4 x RS-232 (2x5 pin, P=2.54)

● External I/O Interface
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
1 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface
2 x USB2.0 (2x4 pin, P=2.54)
1 x RS-232/422/485 (RS-485 support AFC) (2x5 pin, P=2.54)
2 x USB 3.2 Gen1 (2 x 10 pin) (5Gb/s)
4 x SATA 6Gb/s (RAID 0/1/10 supported)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16 (Slot1) with x16 Signal（witn Ryzen8000G PHX1 only X8 Signal）
2 x PCIe Gen4 x4 open-end
4 x PCIe Gen4 x1 open-end
1 x M.2 M Key (2242/2280, PCIe Gen4 x2) NVMe support

1 x PCIe Gen4 x16 (Slot1) with x16 Signal（witn Ryzen8000G PHX1 only X8 Signal）
2 x PCIe Gen4 x4 open-end
4 x PCIe Gen4 x1 open-end
1 x M.2 M Key (2242/2280, PCIe Gen4 x2) NVMe support

KINO-ADLP front

KINO-ADL-P

Mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-P SoC Processor, DDR4 SO-DIMM, 12~28V DC input, Triple Display, Triple Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, RoHS

● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU

● CPU:
Intel® 12/13th mobile Alder Lake-P/Raptor Lake-P on-board processor, support Intel® Core™ i9/i7/i5/i3 and Celeron® CPU

Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB

Two 260-pin Dual-Channel 3200 MHz DDR4 SO-DIMMs, supported up to 64GB

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● Internal I/O Interface：
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x RS-232/422/485
● Internal I/O Interface：
2 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)

1 x PCIe Gen3 x4 Slot Open-ended
1 x M.2 E Key for WIFI & BT 2230(PCIe Gen3 x1 & USB 2.0)
1 x M.2 B key 3042 (PCIe Gen3 x2/USB2.0)
1 x M.2 M key 2280 (PCIe Gen3 x4)

KINO-ADL-PS Front

KINO-ADLPS

Mini-ITX SBC support Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor, DDR4 SO-DIMM, triple display with DP, HDMI™ and iDPM slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS

● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor

● CPU:
Intel® Alder Lake-PS Core™ i7/i5/i3 and Celeron® processor

Two 3200 MHz DDR4 SO-DIMMs

Two 3200 MHz DDR4 SO-DIMMs

● Triple Independent Displays
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (up to 4096 x 2304 @60Hz)
1 x iDPM support iEi eDP/LVDS/VGA module

● Triple Independent Displays
1 x DP 1.4 (up to 4096 x 2304 @60Hz)
1 x HDMI™ 2.0 (up to 4096 x 2304 @60Hz)
1 x iDPM support iEi eDP/LVDS/VGA module

● External I/O Interface
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)

● External I/O Interface
2 x RS232/422/485 via DB-9 (RS-485 support AFC)
2 x USB 2.0 (Type A)
4 x USB 3.2 Gen 2 (Type A) (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
2 x USB 2.0(2x4 pin, P=2.00)
4 x RS-232 (2x5 pin, p=2.00)

1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)

1 x PCIe Gen3 x4 (x4 & x2 + x2 & x2 + x1 + x1)
1 x M.2 A Key for WIFI & BT 2230 (PCIe Gen3 x1 & USB2.0)
1 x M.2 M Key 2242/3080 (PCIe Gen4 x4)

IMB-H420 Front

IMB-H420

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual 2.5GbE LAN, M.2, 6 USB 3.2, 8 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS

● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E

● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processor. up to 65W TDP
● Chipset: Intel® H420E

Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)

● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x internal DP (up to 3840 x 2160@60Hz)

● External I/O Interface：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

● External I/O Interface：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot

1 x PCIe Gen3 x16 slot
1 x PCIe Gen3 x1 slot

IMB-Q470 Front

IMB-Q470

Micro-ATX motherboard supports LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple displays, dual LAN, M.2, 8 USB 3.2, 6 USB 2.0, 10 COM, SATA 6Gb/s, HD Audio and RoHS

● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E

● CPU: LGA1200 socket supports 10th/11th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor. up to 125W TDP
● Chipset: Intel®Q470/Q470E

Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

Two 288-pin 2933 MHz unbuffered DDR4 SDRAM DIMM slots (system max. 64GB)

● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)

● Triple display support
1 x VGA (up to 1920 x 1080@60Hz)
1 x DVI-D (up to 2560 x 1600@60Hz)
1 x interna DP (up to 3840 x 2160@60Hz)

● External I/O Interface：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

● External I/O Interface：
8 x USB 3.2 Gen1
6 x USB 2.0
1 x KB/MS
● Internal I/O Interface：
10 x RS-232 (2 x 2 *20-pin, 2 x 2*5 pin, P=2.54)
1 x LPT (2*13 pin)
4 x SATA 6Gb/s

1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)

1 x PCIe Gen3 x16 slot
2 x PCIe Gen3 x4 slot
1 x M.2 B key 2242/2280 (PCIe Gen3 x2)
1 x M.2 M key 2242/2280 (PCIe Gen3 x4)

IMB-ADL-Q670

micro-ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

● CPU:LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E

● CPU:LGA1700 socket supports 12th/13th/14th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E

Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB

Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB

● Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)

● Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-I (up to 1920x1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)

● External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● Internal I/O Interface：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)

● External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
6 x USB 3.2 Gen1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type A)
● Internal I/O Interface：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
2 x RS-232/422/485 (2x5 pin, P=2.54)
8 x RS-232 (2x20 pin, P=2.54)

*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support

*1 x PCIe Gen4 x16 with x16 Signal
*1 x PCIe Gen4 x4 open-end
(*Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storagedevices)
1 x PCIe Gen4 x4 open-end
1 x PCIe Gen3 x1
1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe Gen3 x2 for SSD) NVMe support

IMBA-ADL-Q670 Front

IMBA-ADL-Q670

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, iAUDIO and RoHS

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
● Chipset: Intel®Q670/Q670E

Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB

Four 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 128GB

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 3.2 Gen1 (2 x 10pin, P=2.00 pin wafer) (5Gb/s)
4 x USB 2.0 (2 x 4 pin, P=2.54)
4 x RS-232 (2 x 5 pin, P=2.54)

**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support

**1 x PCIe Gen4 x16 slot
**1 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen4 x4 open-end slot
2 x PCIe Gen3 x1 slot
1 x PCI slot
1 x M.2 M Key (2242/2280, PCIe x4 ) NVMe support
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support

KINO-ADL mini-ITX SBC supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

KINO-ADL-H610

mini-ITX SBC supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

Two 260-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @60Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
2 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
2 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)

1 x PCIe Gen4 x16
1 x M.2 M key (2280, PCIe Gen3 X 4)
1 x M.2 A key (2230, PCIe Gen3 x1 &USB 2.0)

IEI IMB-ADL-H610 micro ATX motherboard supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® CPU

IMB-ADL-H610

micro ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent display:
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 ) NVMe supported

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
1 x M.2 M Key 2280( PCIe x1 ) NVMe supported

IMBA-ADL-H610 ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor

IMBA-ADL-H610

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s and RoHS

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

● CPU: LGA1700 socket supports 12th/13th/14th generation Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)
● Chipset: Intel® H610/H610E

Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent display :
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 4096 x 2304 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 x1 (Type-A) (5Gb/s)
4 x USB 2.0 (Type-A)
2 x RS-232/422/485 (RS-485 support AFC)
● Internal I/O Interface：
4 x SATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI

1 x PCIe Gen4 x16
1 x PCIe Gen3 x4 open-end
2 x PCIe Gen3 x1
2 X PCI

IEI IMBA-R680 ATX motherboard photo

IMBA-R680

ATX motherboard supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR5, Triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, and RoHS

CPU: LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E

CPU: LGA1700 socket supports 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 125W TDP CPU)
Chipset: Intel®R680E

Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs (ECC&non-ECC support)

Four 288-pin Dual-Channel DDR5 (up to 4400 MHz) SDRAM Unbuffered DIMMs (ECC&non-ECC support)

Triple independent display

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 3840*2160 @30Hz)
1 x iDPM support IEI eDP/ LVDS/ VGA module

Triple independent display

1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI™ (up to 3840*2160 @30Hz)
1 x iDPM support IEI eDP/ LVDS/ VGA module

External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
Internal I/O Interface：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)

External I/O Interface：
4 x USB 3.2 Gen2 (Type-A) (10Gb/s)
2 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
Internal I/O Interface：
4 x SATA 6Gb/s (RAID 0/1/5/10 supported)
4 x USB 2.0 (2x4 pin, P=2.00)
2 x USB 3.2 Gen1 (2 X 10PIN P=2.00 pin wafer) (5Gb/s)
4 x RS-232 (2x5 pin, P=2.54)

** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) NVMe supported

** 2 x PCIe Gen5 x16 slot with x8 Signal
** 1 x PCIe Gen4 x4 open-end
2 x PCIe Gen4 x4 open-end
2 x PCIe Gen3 x1
2 x M.2 M Key (2242/2280, PCIe x4) NVMe supported

KINO-EHL-J6412 mini-itx motherboard supports Intel® Elkhart Lake Celeron® on-board SoC

KINO-EHL

Mini-ITX SBC supports Intel® Elkhart Lake Celeron® on-board SoC with 8GB LPDDR4x memory on board default, Triple Independent Display with HDMI™, DP and iDPM, SATA 6Gb/s, Dual 2.5GbE, USB 3.2, M.2, 12V DC input and RoHS

Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

Intel® Elkhart Lake Processor
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

Onboard LPDDR4x-3200MHz 8GB, system up to 16GB

Onboard LPDDR4x-3200MHz 8GB, system up to 16GB

Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI™ 2.0b (up to 4096x2160 @ 30 Hz)

Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI™ 2.0b (up to 4096x2160 @ 30 Hz)

External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)

External I/O Interface :
2 x USB 3.2 Gen2 (10Gb/s) (USB Type A)
2 x USB 2.0 (USB Type A)
2 x RS-232
Internal I/O Interface :
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
4 X RS-422/485 (1x4 pin,P=2.0)

1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

1 x PCIe x4 Slot Open-ended (PCIe Gen3 x1 signal)
1 x M.2 B key 3042/3052/2242/2280 (PCIe x2 & USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key

IEI KINO-TGL-U Mini-ITX Industrial Motherboard Supports Dual Intel® 2.5 GbE LAN

KINO-TGL-U

Thin Mini-ITX SBC supports Intel® Tiger Lake-UP3 Processor, 9 ~ 36V DC input, triple independent displays, HDMI™, DP, iDPM, SATA 6Gb/s, Dual Intel® 2.5GbE, USB 3.2 Gen2, M.2 and RoHS

11th generation Intel® mobile Tiger Lake-UP3 on-board processor

11th generation Intel® mobile Tiger Lake-UP3 on-board processor

Two 260-pin 3200 MHz DDR4 SO-DIMM slots

Two 260-pin 3200 MHz DDR4 SO-DIMM slots

Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI™ 2.0b (up to 4096x2160 @ 30 Hz)

Triple 4K independent display
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)
1 X HDMI™ 2.0b (up to 4096x2160 @ 30 Hz)

External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)

External I/O Interface:
4 x USB 3.2 Gen2 (10Gb/s) by USB Type-C
Internal I/O Interface:
2 x SATA 6Gb/s (Support RAID 0/1)
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 by 4-pin (1x4) wafer (RS-485 supports AFC)
5 x RS-232 by 10-pin header (2x5 pin, P=2.0)

1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)

1 x PCIe x8 slot (PCIe 4.0 with x4 signal, open-ended)
1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)

IMBA-Q471 ATX Industrial Motherboard

IMBA-Q471

ATX Motherboard Supports 10 th / 11 th Gen. LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® Processors, DDR4, Triple Independent Displays, Triple 2.5GbE, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E

CPU: 10 th / 11 th Generation LGA1200 Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processors
Chipset: Intel® Q470/Q470E

Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory

Four 288-pin 2933 MHz dual-channel unbuffered DDR4 SDRAM DIMM slots supporting up to 128 GB memory

Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI™ (up to 4096 x 2304 @ 30 Hz)

Triple independent display
1 x VGA (up to 1920 x 1080 @ 60 Hz)
1 x DP (up to 4096 x 2304 @ 60 Hz)
1 x HDMI™ (up to 4096 x 2304 @ 30 Hz)

External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)

External I/O Interface:
1 x RS-232 DB-9
2 x USB 2.0 (Type-A)
2 x USB 3.2 Gen 1 (5Gb/s) (Type-A)
2 x USB 3.2 Gen 2 (10Gb/s) (Type-A)

Internal I/O Interface:
6 x USB 2.0 (2x4 pin, p=2.54)
2 x USB 3.2 Gen1 (2x10 pin, p=2.0)
2 x RS-232 (2x5 pin, p=2.54)
1 x RS-422/485 (1x4 pin, p=2.0)

2 x PCIe Gen3 x16 (x8 signal）
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1

2 x PCIe Gen3 x16 (x8 signal）
3 x PCIe Gen3 x4
2 x PCIe Gen3 x1

KINO-DH420 Mini-ITX SBC

KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E

CPU: LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E

Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB

Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB

Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)

Dual independent display
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2160 @30Hz)

External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)

External I/O Interface:
2 x RS-232
2 x USB 2.0
4 x USB 3.2 Gen1 (5Gb/s)
Internal I/O Interface:
1 x RS-232 (2x5 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6Gb/s (No RAID)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)

1 x PCIe Gen3 x16
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2 /USB 2.0)

IMBA-H420 ATX Industrial Motherboard

IMBA-H420

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® H420E

CPU:
LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® H420E

Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2160@30Hz)

Triple display
1 x VGA (up to 1920 x 1200@60Hz)
1 x internal DP++ (up to 4096 x 2304@60Hz)
1 x HDMI™ (up to 4096 x 2160@30Hz)

External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)

External I/O Interface:
4 x USB 3.2 Gen 1 (5Gb/s)
2 x USB 2.0
1 x RS-232
1 x KB/MS
Internal I/O Interface:
1 x RS-232/422/485 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
4 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (no RAID)

1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI

1 x PCIe Gen3 x16
1 x PCIe Gen3 x4
4 x PCI

IMBA-Q470 ATX Industrial Motherboard

IMBA-Q470

ATX motherboard supports LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual 2.5GbE LAN, M.2, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

CPU:
LGA1200 Intel® 10/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset：Intel® Q470/Q470E

Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB

Four 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 128GB

Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)

Triple independent displays
1 x VGA (up to 1920 x 1080 @60Hz)
1 x DP (up to 4096 x 2304 @60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)

External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin，P=2.0)
3 x RS-232 (2x5pin,P=2.54)

External I/O Interface
2 x USB 3.2 Gen2x2 (Type-C) (20Gb/s)
1 x USB 3.2 Gen2 (Type-A) (10Gb/s)
4 x USB 3.2 Gen1 (Type-A) (5Gb/s)
2 x RS-232/422/485 (RS-485 support AFC)
1 x RS-232

Internal I/O Interface
6 x SATA 6G/s (support RAID 0/1/5/10)
4 x USB 2.0 (2x4pin，P=2.0)
3 x RS-232 (2x5pin,P=2.54)

2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)

2 x PCIe x16 (Slot2,4) with x8 Signal Gen5
3 x PCIe x4 open-end (Slot1&5&6) Gen4
2 x PCIe x1 (Slot 3&7) Gen3
1 x M.2 M Key (2242/2280, PCIe x2 for SSD) NVMe support
1 x M.2 B Key (3042/3052/2280) (PCIe x2 w/ USB3.2 Gen1/SATA) NVMe support
1 x M.2 B Key (2280) (SATA)

KINO-KX Mini-ITX SBC supports Zhaoxin 16nm processor

KINO-KX

Rich I/O Mini-ITX with Zhaoxin 16nm KX-6000 Series Processor

● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200

● SoC
Zhaoxin Kaixian KX-6000 series 8-core processor
Zhaoxin KX-U6580 on-board SoC (8-Core, 8MB Cache, 2.5GHz, 70W)
Zhaoxin KX-U6780A on-board SoC (8-Core, 8MB Cache, 2.7GHz, 70W)

● Chipset
Zhaoxin ZX-200

2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)

2 x 260-pin 2666MHz Dual-channel DDR4 SO-DIMM (system max. 64GB)

1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)

1 x VGA (up to 1920x1080@60Hz)
1 x DVI-I (up to 1920x1080@60Hz)

● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s

● External I/O Interface
10 x USB 2.0
4 x USB 3.2 Gen 1 (5Gb/s)
1 x KB/MS

● Internal I/O Interface
2 x RS-232 (2x5 pin, P=2.0)
8 x RS-232 (2x20 pin, P=2.0)
4 x SATA 6G/s

● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

● Expansion
1 x Full-size PCIe Mini card slot
1 x PCIe x16 slot (with x8 Gen 3.0 signal)

IMBA-H310

ATX motherboard supports 14nm LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays, dual GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310

● CPU
LGA1151 Intel® H310 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor

● Chipset
Intel® H310

Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Two 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)

● Triple independent display
1 x DVI-D (up to 2560x1600@60Hz)
1 x VGA (UP to 1920x1200@60Hz)
1 x Internal 180⁰ DP (up to 4096x2304@60Hz)

● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)

● External I/O Interface
4 x USB 3.2 Gen 1 (5Gb/s)
2 x RS-232
2 x USB 2.0
1 x KB/MS

● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x USB 2.0 (2x4 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
1 x RS-232/422/485 (2x5 pin, P=2.54)
4 x SATA 6G/s (no RAID)

● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

● Expansion
1 x PCIe x16 (Gen3)
1 x PCIe x4 (Gen2)
4 x PCI

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI™, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS

˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110

˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110

Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)

˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)

˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS

LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor

LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor

Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB

* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

* Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485

* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485

* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310

LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310

Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB

Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB

* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)

* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)

● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)

● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)

● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

IMBA-Q370 ATX Industrial Motherboard

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS

LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370

LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370

Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB

Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)

Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)

● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)

● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)

● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

gKINO-DMF mini-itx Industrial Motherboard

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor

FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)

FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)

Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB

Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB

Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)

Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)

1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output

1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output

IMBA-H110 ATX Industrial Motherboard

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3, Celeron® and Pemtium® processor

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110

Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)

1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170

LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170

LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170

Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)

Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB)

Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)

2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)

Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot

Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110

Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB

Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB

Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP

Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP

1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)

1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)

Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot

Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot

IMBA-C2360

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236

LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236

LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB

Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s

1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s

Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)

Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC

*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC

*Intel® Pentium® N3710 on-board SoC
*Intel® Celeron® N3160 on-board SoC
*Intel® Celeron® N3060 on-board SoC
*Intel® Celeron® N3010 on-board SoC

Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB

Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB

Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)

Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)

2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485

2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1

IMBA-Q170 ATX Industrial Motherboard

IMBA-Q170

ATX motherboard supports 14nm LGA1151 Intel® CPU Intel® Q170,

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170

LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB

Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)

4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT

4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB

VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

IMB-H810

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB

Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB

Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)

8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0

8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81

Intel® H81
LGA1150

Intel® H81
LGA1150

Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)

Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)

Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)

1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0

1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)

Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)

VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0

2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)

2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB)

Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)

Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

Embedded Board

IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

WAFER-IMX8MP Front

WAFER-IMX8MP

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)

NXP i.MX 8M Plus Quad (Quad-core Cortex-A53 up to 1.8 GHz)

4GB LPDDR4-3200

4GB LPDDR4-3200

1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K

1 x MIPI DSI 4 lanes (40-pin 0.5mm FPC 90°)
1 x HDMI™ output 2.0a Type A, up to 4K

2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)

2 x GbE RJ45
2 x USB 5Gbps Type A
1 x Full RS-232/422/485 (DB9 Port)
1 x RS-232/RS-485 (2x3 pin header)
1 x I²C (for Touch, 8-pin 2.0mm FPC)
GPIO 8 bit (4 in / 4 out, pin header)

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

3.5” SBC supports NXP i.MX 8M Plus Processors with 4GB LPDDR4 memory & 16 GB eMMC NAND FLASH on board default, dual display and MIPI_CSI, I²C , GPIO, dual GbE Lan, USB 3.2 Gen 1, Full RS-232, 0°C~70°C and RoHS

WAFER-RK3588 Front

WAFER-RK3588

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~ 60°C and RoHS

Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)

Rockchip RK3588 (Quad core Cortex A76 + Quad core Cortex A55)

On-board 8GB LPDDR4x

On-board 8GB LPDDR4x

1 x MIPI DSI
1 x LVDS out
1 x HDMI-input up to 4K@60FPS
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz

1 x MIPI DSI
1 x LVDS out
1 x HDMI-input up to 4K@60FPS
1 x HDMI-output up to 8K@60Hz
1 x HDMI-output up to 4K@60Hz

1 x GbE LAN
1 x 2.5 GbE LAN
1 x USB 3.2 GEN 1 Type C with DP (OS update)
1 x USB 3.2 GEN 1 Type A
2 x USB2.0 Type A
UART (2x9pin header)
SATA (1 x SATA3.0 up to 6 Gb/s)
1 x DC jack

1 x GbE LAN
1 x 2.5 GbE LAN
1 x USB 3.2 GEN 1 Type C with DP (OS update)
1 x USB 3.2 GEN 1 Type A
2 x USB2.0 Type A
UART (2x9pin header)
SATA (1 x SATA3.0 up to 6 Gb/s)
1 x DC jack

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~60°C and RoHS

3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4x memory & 32GB eMMC NAND FLASH on board default, single HDMI™ input and dual HDMI™ out, 2.5GbE LAN, GbE LAN, USB 3.2 GEN 1, USB 2.0, 0°C ~60°C and RoHS

WAFER-EHL-x6000EWC Front

WAFER-EHL-x6000

3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C

● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)

● On board Intel® Elkhart Lake Atom™ x6000 series / Pentium® / Celeron® processor
Intel® Atom™ x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Atom™ x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Atom™ x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)

On-board LPDDR4x 8GB

On-board LPDDR4x 8GB

● Triple Independent Displays
1 x HDMI™ 1.4 (up to 4096 x 2160@30Hz)
1 x DP 1.2 (up to 4096 x 2160@60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA Module)

● Triple Independent Displays
1 x HDMI™ 1.4 (up to 4096 x 2160@30Hz)
1 x DP 1.2 (up to 4096 x 2160@60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA Module)

● External I/O Interface:
2 x USB 3.2 Gen 2
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2*4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

● External I/O Interface:
2 x USB 3.2 Gen 2
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
4 x USB 2.0 (2*4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C

3.5” SBC supports Intel® Elkhart Lake Atom™ x6000 series on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO, PSE Module, +12V~28V DC input, RoHS, -20°C ~85°C

WAFER-EHL2

3.5” SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, -10°C ~60°C

CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

Onboard 8GB 3200MHz LPDDR4x support up to 16 GB

Onboard 8GB 3200MHz LPDDR4x support up to 16 GB

● Triple Independent Displays
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)

● Triple Independent Displays
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)

● External I/O Interface
2 x USB 3.2 Gen2 (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)

● External I/O Interface
2 x USB 3.2 Gen2 (10Gb/s)
● Internal I/O Interface
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x RS-232 (1x9 pin, p=1.25)

1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1 / USB 2.0 signal)
1 x M.2 B key (3042/2242) w/ SIM holder (PCIe Gen3 x2 / USB 2.0 signal)
1 x PCIe x4（PCIe Gen3 x2 signal）(x2 or x1 + x1)

1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1 / USB 2.0 signal)
1 x M.2 B key (3042/2242) w/ SIM holder (PCIe Gen3 x2 / USB 2.0 signal)
1 x PCIe x4（PCIe Gen3 x2 signal）(x2 or x1 + x1)

HYPER-RK3566 Front

HYPER-RK3566

Pico-ITX SBC with RK3566, 2/4GB LPDDR4/4X, 16/32GB eMMC, HDMI™2.0, MIPI DSI, LVDS, 1 x 1GbE RJ45, 1 x USB3.0, 3 x USB2.0, 2 x (RS232+RS485), Options: WIFI5/6 + BT, 12V DC IN, Debian 10 / Android 12, RoHS

Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)

Rockchip RK3566 (Quad-code Cortex-A55 up to 1.8Ghz)

One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB

One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB

Single screen/both screen at the same time
display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode)

Single screen/both screen at the same time
display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● LVDS,
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode)

● External I/O Interface
1 x DC Port
1 x Mirco SD Slot
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI2.0
1 x 1GbE RJ45
● Internal I/O Interface
8 bit-GPIO Pinheader
2 x (RS232+RS485) Pinheader
1 x I²C Connector
1 x MIPI DSI
1 x Console port
1 x Mic Connector
1 x Speaker Connector
1 x LVDS BL Connector
1 x LVDS
1 x RTC Battery Connector
2 x USB2.0 Connector

● External I/O Interface
1 x DC Port
1 x Mirco SD Slot
1 x USB3.0 TypeA
1 x USB2.0 Type A
1 x HDMI2.0
1 x 1GbE RJ45
● Internal I/O Interface
8 bit-GPIO Pinheader
2 x (RS232+RS485) Pinheader
1 x I²C Connector
1 x MIPI DSI
1 x Console port
1 x Mic Connector
1 x Speaker Connector
1 x LVDS BL Connector
1 x LVDS
1 x RTC Battery Connector
2 x USB2.0 Connector

1 x B TO B Connector
1 x Micro SD Card Slot

1 x B TO B Connector
1 x Micro SD Card Slot

WAFER-RK3568 Front

WAFER-RK3568

3.5”SBC supports RK3568 with 2/4GB LPDDR4/X, 16/32GB eMMC. Triple display with HDMI™, MIPI and eDP. USB 3.0 x 2. Built-In USB 2.0 x 3. RoHS compliant

Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)

Rockchip RK3568 (Quad-code Cortex-A55 up to 2.0Ghz)

One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB

One 200-pin 1866 MHz 2/4GB LPDDR4/4X, support up to 8GB

Triple display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode) and
● eDP (Up to 2560 x 1650@60Hz)

Triple display with
● HDMI (Up to 1080p@120Hz and 4096 x 2304@60Hz),
● MIPI (Up to 1920 x 1080@60Hz display output for single MIPI mode and 2560 x 1440@60Hz for dual-MIPI mode) and
● eDP (Up to 2560 x 1650@60Hz)

● External:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI 2.0
2 x 1GbE RJ45
● Internal:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI

● External:
DC Jack
1 x DB9 (2 x RS232 + 2 x RS485)
2 x USB 3.0 TypeA
1 x HDMI 2.0
2 x 1GbE RJ45
● Internal:
1 x 4 pin DC Port
1 x Line Out + Mic In
1 x Mic Connector
1 x Speaker Connector
1 x USB 2.0 Connector
1 x USB 2.0 Pinheader
1 x 14-bit GPIO Pinheader
1 x eDP
1 x MIPI DSI
1 x MIPI CSI

1 x M.2 B key Slot
1 x B TO B Connector
1 x SIM Slot
1 x Micro SD Card Slot

1 x M.2 B key Slot
1 x B TO B Connector
1 x SIM Slot
1 x Micro SD Card Slot

WAFER-ADL-N Front

WAFER-ADL-N

3.5 SBC supports Intel® Alder Lake-N/Amston Lake on-board SoC, triple display with DP, HDMI™ and iDPM slot, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM and RoHS, -10°C ~ 60°C

12th/13th Gen. Intel® Alder Lake-N/Amston Lake on board SoC

12th/13th Gen. Intel® Alder Lake-N/Amston Lake on board SoC

On-board LPDDR5x 8GB, up to 16GB

On-board LPDDR5x 8GB, up to 16GB

● Triple Independent Displays
1 x HDMI™ 2.0 (up to 4096x2160 @ 30Hz)
1 x DP 1.4a (up to 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple Independent Displays
1 x HDMI™ 2.0 (up to 4096x2160 @ 30Hz)
1 x DP 1.4a (up to 4096x2160 @ 60Hz)
1 x IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen 2
2 x USB 2.0
● Internal I/O Interface：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

● External I/O Interface：
2 x USB 3.2 Gen 2
2 x USB 2.0
● Internal I/O Interface：
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)

1 x M.2 A Key 2230 (PCIe Gen3 x1 & USB 2.0)
1 x M.2 M Key 2280 (PCIe gen3 x1)
1 x PCIe Gen3 x4 Slot (x2 signal)

WAFER-ADL-P Front

WAFER-ADL-P

3.5 SBC supports Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with DP, HDMI™, dual 2.5 GbE, USB 3.2 gen 2, M.2, SATA 6Gb/s, COM, PCIe x4 for riser card and RoHS

12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

On-board LPDDR4x 3200 MHz 8GB up to 32GB

On-board LPDDR4x 3200 MHz 8GB up to 32GB

● Quadruple independent display
2 x HDMI™ 1.4a (up to 4096 x 2160@30Hz)
2 x DP 1.4a (up to 4096 x 2160 @60Hz)

● Quadruple independent display
2 x HDMI™ 1.4a (up to 4096 x 2160@30Hz)
2 x DP 1.4a (up to 4096 x 2160 @60Hz)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280
1 x M.2 M Key 2242/2280

NANO-EHL Front

NANO-EHL

EPIC SBC supports Intel® Celeron® on-board SoC, with 8GB LPDDR4x memory on board default, with DP, HDMI™, iDPM, M.2 A key, M.2 B key, USB 3.1, SATA 6Gb/s, COM, iAUDIO, PCIe x4 (x2 signal) for riser card and RoHS

● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

LPDDR4x-3200Gbps 8GB, up to 16GB

LPDDR4x-3200Gbps 8GB, up to 16GB

● Triple independent displays
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Triple independent displays
1 x DP 1.4 (up to 4096 x 2160 @60Hz)
1 x HDMI 1.4 (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 2.0 Type-A
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

● External I/O Interface:
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
2 x USB 2.0 Type-A
● Internal I/O Interface:
1 x SATA 6Gb/s with 5V SATA power connector
1 x iSATA
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)

1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)

1 x M.2 B Key (2280/2242) PCIe x2&USB2.0
1 x M.2 A Key (2230) PCIe x1/USB2.0
1 x PCIe x4 slot (PCIe Gen3 x2) (x2 or x1+x1)

NANO-ADL-P Front

NANO-ADL-P

EPIC SBC supports Intel® Alder Lake-P/Raptor Lake-P Core™ i7/i5/i3 and Celeron® processor with 8GB LPDDR4x memory on board default, with Dual HDMI™, DP, IDPM, M.2 A key, M.2 B key, USB 3.2, SATA 6Gb/s, COM, iAUDIO, PCIe x4 for riser card and RoHS

12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC

On-board LPDDR4x 3200 MHz 8GB up to 32GB

On-board LPDDR4x 3200 MHz 8GB up to 32GB

● Quadruple independent display
2 x HDMI™ 1.4a (up to 4096 x 2160 @30Hz)
1 x DP 1.4a (up to 4096 x 2160 @60Hz)
1 x IDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Quadruple independent display
2 x HDMI™ 1.4a (up to 4096 x 2160 @30Hz)
1 x DP 1.4a (up to 4096 x 2160 @60Hz)
1 x IDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

● External I/O Interface：
4 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280

1 x PCIe Gen3 x4
1 x M.2 A Key 2230
1 x M.2 B Key 3042/2280

HYPER-EHL

HYPER-EHL

Pico-ITX SBC supports Intel® Celeron J6412/N6210 on-board SoC, with 4GB LPDDR4x memory on board default, with HDMI™, iDPM, M.2 M key, USB 3.2, iSATA 6GB/s, COM, PCIe x4 for riser card and RoHS

● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)

● On board Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
● Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)
● Intel® Celeron® N6210 on-board SoC (up to 2.6GHz, dual-core, 1.5M Cache, TDP=6.5W)

LPDDR4x-3200Gbps 4GB,up to 8GB

LPDDR4x-3200Gbps 4GB,up to 8GB

● Dual independent display:
1 x HDMI (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● Dual independent display:
1 x HDMI (up to 4096 x 2160 @30Hz)
1 x iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)

● External I/O Interface：
2 x USB 3.2 Gen2 x1 (Type-A) (10Gb/s)
● Internal I/O Interface：
1 x iSATA 6Gb/s
2 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-232/422/485 (1x9 pin, P=1.25)

1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)

1 x PCIe Gen3 x4
1 x M.2 M key (2242,PCIe Gen3 X 2)

WAFER-EHL-J6412_Embedded_Board supports Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)

WAFER-EHL

3.5＂ SBC supports Intel® Celeron® J6412 on-board SoC, triple display with DP, HDMI™ and IDPM slot, dual 2.5 GbE, USB 3.2 Gen 2, M.2, SATA 6Gb/s, COM, iAUDIO and RoHS, -10°C ~60°C

CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

CPU:
Intel® Celeron® J6412 on-board SoC (up to 2.6GHz, quad-core, 1.5M Cache, TDP=10W)

Onboard LPDDR4x-3200MHz support up to 8 GB

Onboard LPDDR4x-3200MHz support up to 8 GB

Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)

Triple Independent Displays:
1 x HDMI 1.4 (up to 4096x2160 @ 30Hz)
1 x DP 1.4 (up to 4096x2160 @ 60Hz)
1 x iEi iDPM 3040 slot (only for iEi eDP/LVDS/VGA module)

External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)

External I/O Interface:
2 x USB 3.2 Gen2 (10Gb/s)
Internal I/O Interface:
1 x SATA 6Gb/s
4 x USB 2.0 (2x4 pin, P=2.00)
2 x RS-232/422/485 (1x9 pin, P=1.25)

1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)

1 x M.2 A Key for WIFI & Bluetooth (2230) (PCIe Gen3 x1/USB 2.0 signal)
1 x M.2 B key (3042) w/ SIM holder (PCIe Gen3 x2/USB 2.0 signal)
1 x PCIe x4 (PCIe Gen3 x2 signal) (x2 or x1+x1)

IEI WAFER-TGL-U Embedded Board

WAFER-TGL-U

3.5＂ SBC supports Intel® Tiger Lake-UP3 Core I™ Celeron® Proccessor, with HDMI™, DP, iDPM, triple 2.5 GbE Lan port, USB 3.2, M.2, SATA 6Gb/s, COM, Audio and RoHS, -10°C ~60°C

11th generation Intel® mobile Tiger Lake-UP3 on-board processor

11th generation Intel® mobile Tiger Lake-UP3 on-board processor

One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)

One 260-pin 3200 MHz DDR4 SO-DIMM slots
(system max. 32 GB)

Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

Quadruple 4K independent display
2 X HDMI 2.0b (up to 4096x2160 @ 30 Hz)
1 X DP 1.4a (up to 4096x2160 @ 60 Hz)
1 X IEI iDPM 3040 slot (only for IEI eDP/LVDS/VGA module)

External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)

External I/O Interface:
4 x USB 3.2 Gen2(10Gb/s)by USB Type-C
Internal I/O Interface:
1 x SATA 6G/s
2 x USB 2.0 PIN Header(p=2.0)
2 x RS-232/422/485 (2 x 5 pin, P=2.0)
1 x RS-232 (2 x 5 pin, P=2.0)

1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)

1 x M.2 2230 A-key slot (PCIe x1 & USB 2.0)
1 x M.2 2242/3052 B-key slot (PCIe x2 & USB 2.0)

WAFER-JL Embedded Board

WAFER-JL

3.5＂ SBC with Intel® 10nm Jasper Lake Celeron® N5105 Processor with Dual Displays, DDR4, Triple Intel® 2.5 GbE, USB3.2, M.2, SATA, COM, SoC, RoHS

CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)

CPU:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)
Chipset:
Intel®Celeron® N5105 on-board SoC (up to 2.90GHz, Quad-core, 4M Cache, TDP=10W)

One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB

One 260-pin 2933 MHz DDR4 SO-DIMM support up to 16 GB

Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4

Dual Independent Displays
1 x HDMI 1.4
1 x DP 1.4

External I/O Interface：
2 x USB 3.2 Gen2
Internal I/O Interface：
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC

External I/O Interface：
2 x USB 3.2 Gen2
Internal I/O Interface：
1 x SATA 6Gb/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232 (1x9 pin, P=1.25) from EC

1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces

1.support TDP 10W low power consumption Intel® Celeron® N5105 CPU
2.support Intel® I225V 2.5GbE Ethernet controller
3.Various I / O interfaces

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC

*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC

*Intel® Pentium® N4200 on-board SoC
*Intel® Celeron® N3350 on-board SoC
*Intel® Atom™ x7-E3950 on-board SoC
*Intel® Atom™ x5-E3940 on-board SoC
*Intel® Atom™ x5-E3930 on-board SoC

One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB

One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB

Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)

Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)

2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)

2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)

Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)

Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)

NANO-BT

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

WAFER-BT Embedded Board

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC, VGA/LVDS/iDP, Dual PCIe GbE, USB 3.2 Gen 1 (5Gb/s), PCIe Mini, SATA 3Gb/s, mSATA, COM, Audio and RoHS

Intel® Atom™/Celeron® on-board SoC

Intel® Atom™/Celeron® on-board SoC

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)

2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0

2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0

3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)

One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)

Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)

Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)

1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)

1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3845 on-board SoC
*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC)
*Intel® Celeron® N2807 on-board SoC

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)

6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)

Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)

Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)

Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)

Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)

3 x Internal USB 2.0
4 x USB 3.0

3 x Internal USB 2.0
4 x USB 3.0

Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

ETX / COM EXPRESS / Q7

IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.

CPU Socket / Chipset

Memory

Display

I/O / Slot

Features

HUK-CR680

COM-HPC Client size C Module, supports LGA1700 Intel® 12th/13th/14th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, quadruple independent display, Dual 2.5 GbE, PCIe Gen 5, SATAIII, USB 3.2, RoHS

CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E

CPU: Intel® Alder Lake-S/Raptor Lake-S/Raptor Lake-S Refresh LGA1700 Desktop CPU (TDP up to 65W)
Chipset: R680E

2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)

2 x 262pin DDR5 5600 SO-DIMM sockets (up to 96GB)

Quadruple independent display signals to baseboard
3 x DDI
1 x eDP

Quadruple independent display signals to baseboard
3 x DDI
1 x eDP

USB and UART signals to the baseboard
8 x USB 2.0
4 x USB 3.2 Gen2
2 x UART

USB and UART signals to the baseboard
8 x USB 2.0
4 x USB 3.2 Gen2
2 x UART

PCIe signals to the baseboard
1 x PCIe Gen5 x16
4 x PCIe Gen4 x4
1 x PCIe Gen3 x4
6 x PCIe Gen3 x1

PCIe signals to the baseboard
1 x PCIe Gen5 x16
4 x PCIe Gen4 x4
1 x PCIe Gen3 x4
6 x PCIe Gen3 x1

iQ7-EHL

Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS

Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS

Qseven® Rev. 2.1 module supports Intel® Celeron® Processor J6412 (10W), with 8GB LPDDR4x memory on board default, Support DP, LVDS, 2.5GbE, SATA 6Gb/s, USB 3.1, Audio and RoHS

LPDDR4x-3200Gbps 8GB,up to 16GB

LPDDR4x-3200Gbps 8GB,up to 16GB

● Dual independent displays
1 x HDMI 1.4 (4K@30Hz)
1 x LVDS or EDP

● Dual independent displays
1 x HDMI 1.4 (4K@30Hz)
1 x LVDS or EDP

● I/O Signal：
2 x USB 3.2 Gen2 x1 (10Gb/s)
6 x USB 2.0
1 x UART
2 x SATA 6Gb/s

● I/O Signal：
2 x USB 3.2 Gen2 x1 (10Gb/s)
6 x USB 2.0
1 x UART
2 x SATA 6Gb/s

4 x PCIe Gen3 x1 signal to baseboard

4 x PCIe Gen3 x1 signal to baseboard

iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)

2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)

6 x USB 2.0
1 x USB 3.0

6 x USB 2.0
1 x USB 3.0

Expansion:
3 x PCIe x1 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)

2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)

2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)

Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)

6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard

6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

Expansion:
3 x PCIe x1 signal to baseboard

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1

Supports COM Express Compact/Mini module using connector pin out Type 6

Supports COM Express Compact/Mini module using connector pin out Type 6

1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)

1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)

4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)

4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)

Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor

*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

*Intel® Atom™ E3827 on-board SoC
*Intel® Atom™ E3826 on-board SoC
*Intel® Atom™ E3825 on-board SoC
*Intel® Atom™ E3815 on-board SoC
*Intel® Celeron® J1900 on-board SoC
*Intel® Celeron® N2930 on-board SoC
*Intel® Celeron® N2807 on-board SoC

Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB

Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB

1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)

7 x USB 2.0
4 x USB 3.0

7 x USB 2.0
4 x USB 3.0

Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

ICE-DB-T6

Baseboard for COM Express Type 6 Module

Supports COM Express Compact/Mini module using connector pin out Type 6

Supports COM Express Compact/Mini module using connector pin out Type 6

1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)

1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)

1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)

1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)

Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

English - Global

English - Global

Privacy Policy | Security Policy | Terms of Use | Sitemap

Copyright ©2024 IEI Integration Corp. All Rights Reserved.
