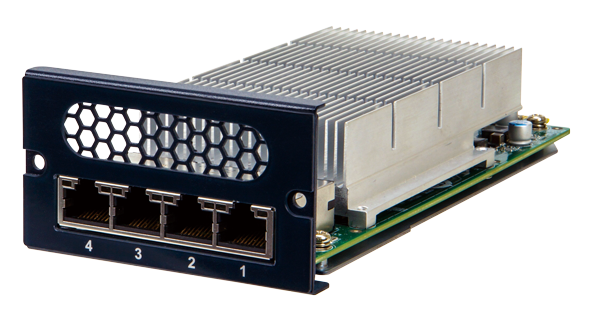

Overview
• 4 x Aquantia AQC107• 4 ports 10G BASE-T connector• 4 PCIe 2.0 x2• RoHS compliant -
Features
Architecture Diagram
Smart NIC is getting more and more important. Faster networking and data center impose too much networking overhead on the CPU cores, not a doubt, the compute virtualization, software-defined storage (SDS), and hyperconverged infrastructure (HCI) and other network applications, make this problem worse, as they create more east-west traffic.
Smarter NICs – IEI PulM series can resolve all this virtualization and packet processing faster, more efficiently, and at lower cost than standard CPUs. It is ideal for users want to, for instance, build up a network server with virtual machine and provide storage function.
Offload Functions
IEI provides four brands of NIC from Aquantia, Intel, Broadcom, Mella-nox, and with 1G, 2.5G, 5G, 10G or 25G different kinds of speed.
-
Specifications
-
Hardware Spec.
Spec Item Description Physical Characteristics Dimensions (LxWxH) (mm) 165.50 (L) x 77.8 (W) x 44.2 (H) I/O Interface Ethernet 4 x LAN (10GBASE-T (RJ-45)) Environment Operating Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F) Humidity 5% ~ 90% RH, Non-condensing Certifications Safety & EMC RoHS Card Slot Interface PCIe 4 PCIe 3.0 x2 Card Features Speed 10GBASE-T/5GBASE-T/2.5GBASE-T/1000BASE-T/100BASE-TX Controller Chip Aquantia AQC107 -
Ordering Info.
Item No. Description PulM-10G4T-AQC107-R10 Aquantia AQC107 based Network Interface Card with 4x10GBASE-T by 4 PCIe 3.0 x 2 Interface. -
Package Contents
-
1 x PulM-10G4T-AQC107 module
-
1 x L-shaped T10 Plum Wrench
-
1 x QIG
-
-
-
