強固型工業電腦
TANK | ECN | ECW Series Embedded System
IEI offers complete rugged box pc products with a wide range of I/O interface and multiple expansions, allowing users to connect to different devices for comprehensive automation solution. IEI industrial rugged box pc provides a reliable platform to fulfill a wide variety of application demand, such as machine automation, surveillance station application and information kiosk.
CPU
Chipset
I/O
Expansion

ECN-360A-ULT3

Fanless Embedded System with Intel® Solution
Refer to SBC Refer to SBC 4 x USB3.0
2 x LAN
1 x RS-232/422/485
2 x RS-232
1 x 8-bit digital I/O
2 x HDMI
1 x Line-out
2 x 802.11b/g/n (optional)
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

ECN-380-QM87

Fanless Embedded System with Intel® Solution
Intel® mobile Core™ i5-4400E with AMT 9.0 support (up to 2.7GHz, dual-core, 3MB cache, TDP=37W)
Intel® mobile Celeron® 2000E (up to 2.2GHz, dual-core, 2MB cache, TDP=37W)
Intel® QM87 2 x USB 3.0
4 x USB 2.0
2 x RJ-45
IntelR I217LM PHY with IntelR AMT 9.0 support
IntelR I210-AT PCIe controller
2 x RS-232
2 x HDMI
1 x VGA
1 x Line-out, 1 x Mic-in
1 x 802.11b/g/n (optional)
PCIe Mini:
1 x Full-size PCIe Mini (support mSATA, SATA 6Gb/s signal only)
1 x Half-size PCIe Mini (only for iRIS-1010)

ECW-281B

Fanless Embedded System with Intel® Atom™ Dual-core D525/N270 CPU
IIntel® Atom™ D525 dual-core 1.8GHz/1MB L2 cache Intel® ICH8M 4 x USB 2.0
2 x Realtek 8111E PCIe GbE
6 x RS-232 ports for ECW-281B-D525
(COM2: Default RS-232, RS422/485 optional)
6 x RS-232 ports for ECW-281B-N270
(COM2: Default RS-232, RS422/485 optional)
1 x VGA
1 x Speaker out
1 x PCIe Mini card slot

ECW-281B-BT

Fanless Embedded System with Intel® Celeron® J1900 Processor
Intel® Celeron® J1900 processor
(2 GHz, quad-core, 2 MB cache, TDP=10W)
Soc
Soc 1 x USB 3.0
3 x USB 2.0
LAN 1: PCIe GbE by IntelR I210 controller
LAN 2: PCIe GbE by IntelR I211 controller
3 x RS-232
1 x RS-422/485
8-bit digital I/O
1 x VGA
1 x Line out
1 x 802.11b/g/n (optional)
1 x Full-size PCIe Mini card slot (supports mSATA)
1 x Half-size PCIe Mini card (only for iRIS)

ECW-281B-D2550

Fanless Embedded System with Intel® Atom™ Dual-core D2550 CPU
Intel® Atom™ dual-core D2550 1.86GHz Intel® NM10 4 x USB 2.0
2 x Realtek RTL8111E PCIe GbE controller
3 x RS-232
1 x RS-422/485
8-bit digital I/O
1 x VGA
1 x Line-out
1 x 802.11b/g/n (optional)
1 x Full-size (supports mSATA)
1 x Half-size

ECW-281B2

Fanless Embedded System with Intel® Atom™ Dual-core D525/N270 CPU
IIntel® Atom™ D525 dual-core 1.8GHz/1MB L2 cache Intel® ICH8M 4 x USB 2.0
2 x Realtek 8111E PCIe GbE
5 x RS-232 ports for ECW-281B2-D525
5 x RS-232 ports for ECW-281B2-N270
2 x VGA
1 x Speaker out
1 x PCIe Mini card slot

TANK-610-BW

Fanless Embedded System with AWS IoT Greengrass Qualified
Intel® Celeron® N3160 processor (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
SoC
SoC 4 x USB 3.0
2 x RJ-45 PCIe GbE by IntelR I210-IT
6 x RS-232, 2 x RS-232/422/485
1 x VGA, 1 x HDMI
1 x Line-out, 1 x Mic-in
1 x 802.11 b/g/n (optional)
PCIe Mini:1 x Full size (support mSATA, co-lay SATA), 1 x Half size

TANK-620-ULT3

Fanless Multiple COM Ports Embedded System
Intel® Celeron® 3855U (1.6GHz, TDP=15W)
SoC
SoC ●4 x USB 3.0
●4 x USB 2.0
●Ethernet:2 x RJ-45
PCIe GbE by Intel® I211 controller
●COM Port:
6 x RS-232 (DB-9)
8 x RS-232/422/485 ports with automatic flow control (DB-9)
●1 x 24-bit digital I/O (12-bit input/12-bit output)
●Audio:
1 x Mic in, 1 x Speaker out, 1 x Line out
●Display:2 x VGA
M.2:
1 x M.2 2280 (M key,PCIe by 4, SATA co-lay SATA2)
PCIe Mini:
2 x Full-size PCIe mini slot (PCIe by1, USB2.0)

TANK-801-BT

Intel® Celeron® J1900 2 GHz, 10W
Intel® Celeron® J1900 2 GHz
SoC
SoC 2 x USB 3.0
2 x USB 3.0
2 x RJ-45
1 x PCIe GbE by IntelR I210
1 x PCIe GbE by IntelR I211
2 x RS-232 (DB-9)
2 x RS-232/422/485 (DB-9, with isolation)
16-bit digital I/O, 8-bit input/8-bit output
1 x DisplayPort, 1 x DVI-I
1 x Line-out, 1 x Mic-in
1 x Full size PCIe Mini
PCI/PCIe:
3A: One PCIe x1 + Two x PCI
3B: Two PCIe x1 + One x PCI
3C: Three x PCI

TANK-860-HM86

Intel® HM86 mobile solution. Fanless wide temperature embedded system
CPU:
Intel® Core™ i5-4400E 2.7 GHz
Chipset:Intel® HM86 4 x USB 3.0
2 x USB 2.0
2 x RJ-45
1 x PCIe GbE by IntelR I210
1 x PCIe GbE by IntelR I217LM
4 x RS-232 (DB-9, two with isolation)
2 x RS-422/485 (RJ-45)
8-bit digital I/O, 4-bit input/4-bit output
1 x VGA, 1 x DVI-I, 1 x DisplayPort
1 x Line-out, 1 x Mic-in
1 x 802.11b/g/n (optional)
PCI/PCIe
2 A: Two PCIe x8 (physical PCIe x16 slot)
4 A: Two PCIe x8 (physical PCIe x16 slot) +2 x PCI
6 A: One PCIe x8 (physical PCIe x16 slot) +two PCIe x4 + three PCI
PCIe Mini
2A: 1 x Full-size (co-lay mSATA)
4A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)
6A: 1 x Full-size (co-lay mSATA) +1 x Full-size (on backplane)

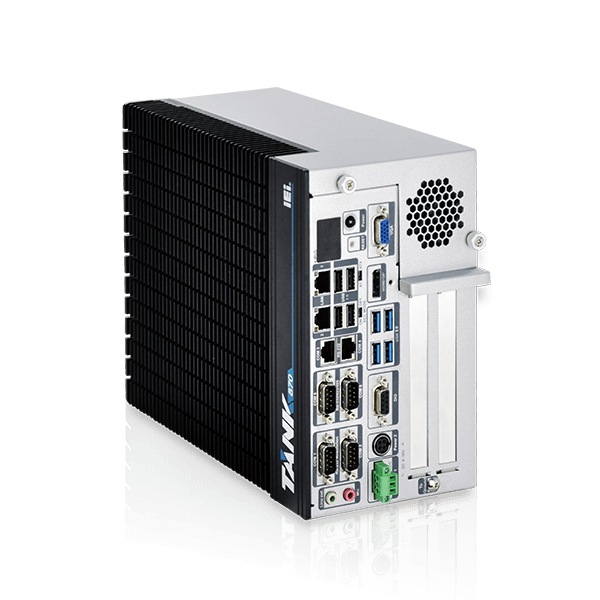

TANK-870-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® Q170 ●USB: 4 x USB 3.0, 4 x USB 2.0
●Ethernet:
2 x RJ-45
LAN1 (iRIS): Intel® I210 PCIe controller
LAN2: Intel® I219LM PCIe controller
●COM Port:
4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
2 x RS-232/422/485 (DB-9)
●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI+DP (Up to 4096x2304@60Hz)
1 x iDP (optional)
●Audio: 1 x Line-out, 1 x Mic-in
●PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
2-slot model: 1 x PCIe x16, 1 x PCI
2-slot model: 2 x PCIe x8
4-slot model: 2 x PCIe x8, 2 x PCI, 1 x Full-size PCIe Mni
4-slot model: 1 x PCIe x16, 3 x PCI, 1 x Full-size PCIe Mni

TANK-870e-H110

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® H110 ●USB: 4 x USB 3.0
●Ethernet:
2 x RJ-45 PCIe GbE by RTL8111G controller
●COM Port:
2 x RS-232/422/485 (DB-9, w/ 2.5kV isolation protection)
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI 1.4 (up to 3840x2160@30Hz)
●Audio: 1 x Line-out, 1 x Mic-in
●PCIe Mini:
1 x Full-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
●Backplane:
3A: 1 x PCIe x16, 2 x PCI
3B: 1 x PCIe x16, 1 x PCIe x4, 1 x PCI
3C: 3 x PCI

TANK-871-Q170

High-Performance 6th/7th Generation Intel® Core™ Processor
Intel 7th Gen Core CPU &
Intel® Core™ i7-6700TE (2.4 GHz, quad-core, TDP=35W)
Intel® Core™ i5-6500TE (2.3 GHz, quad-core, TDP=35W)
Intel® Q170 ●USB: 4 x USB 3.0, 4 x USB 2.0
●Ethernet: 2 x RJ-45
LAN1 (iRIS): Intel® I210 PCIe controller
LAN2: Intel® I219LM PCIe controller
●COM Port:
4 x RS-232 (2 x RJ-45, 2 x DB-9 w/2.5KV isolation protection)
2 x RS-232/422/485 (DB-9)
●Digital I/O: 8 bit Digital I/O, 4 bit input / 4 bit output
●Display:
1 x VGA (Up to 1920 x 1200@60Hz)
1 x HDMI/DP (Up to 3840x2160@30Hz / 4096×2304@60Hz)
1 x iDP (optional)
●Audio: 1 x Line-out, 1 x Mic-in
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot (supports mSATA, colay with SATA)
Industrial Data Collection Server
Four 2.5" drive bays industrial data collection server for factory automation and harsh environment.
CPU
Chipset
I/O
Expansion

IBX-660

Ultrahigh storage capacity embedded system for smart factory and harsh environment
Intel® Atom™ E3845 quad-core 1.91GHz
SoC
SoC 2 x USB 3.0
2 x USB 2.0
2 x Gigabit RJ-45 Ethernet port
1 x HDMI Display port (Resolution: up to 1080p support)
1 x Mic-in
1 x Audio out
1 x Full-size PCIe Mini slot
1 x onboard SIM card slot
Industrial NAS
4-bay Industrial NAS/NVR for Tough or Mobile Environments
CPU
Chipset
I/O
Expansion

IS-453S

4-bay Industrial NAS/NVR for Tough or Mobile Environments
22nm Intel® Atom™ quad-core 1.91GHz
2 x Gigabit RJ-45 Ethernet port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
1 x QNAP UX-500P / UX-800P expansion unit
