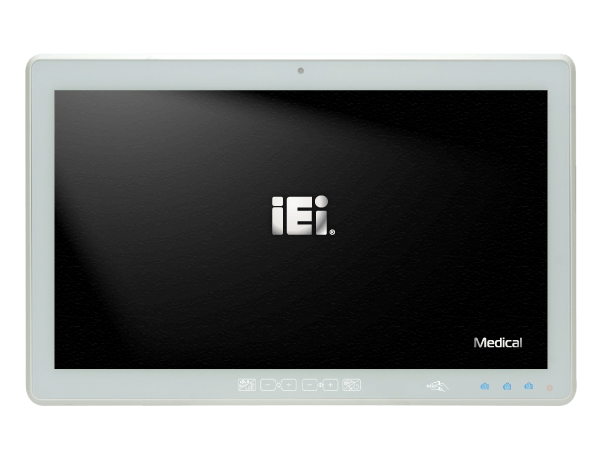

POCm-W24C-ULT3

24” Medical Panel PC with 6th Generation Intel® mobile
ULT Core™ i7/i5/Celeron® processor

  • Overview
    ● 24＂ fanless FHD medical grade panel PC
    ● Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor
    ● Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts
    ● The battery docking station can perform fast charging, taking only 3 hours from 0 to 100%
    ● Optional integrated RFID, 3-in-1 card reader, external 1D/2D barcode reader and USB phone

  • Features
    pocm-medical-panel-pc-bn

    Medication carts for healthcare facilities need a better energy storage solution to power their equipment, but most of current battery solutions do not have the capacity to complete each shift, are slow to recharge, add considerable weight to the carts, and need annual replacement. IEI’s latest mobile POC series, the POCm, allows for easier movement of medical carts as well as providing longer run time for the non-powered medical cart use.

    20% Weight Off Makes the Cart Lighter

    Each battery pack used in the POCm only weights 460 grams, which is much lighter than traditional hospital nursing cart battery (LiFePO4/ 6.5 Kg).

    light-weight

    6th Generation Intel® Mobile ULT Processor

    The POCm series integrated with Intel® Skylake-ULT i5-6300U processor offers dramatically higher CPU and graphics performance running at 15W thermal design power (TDP). With low power consumption design, the fanless system runs longer on battery, ideal for mobile medical care applications.

    mobile-processor

    Three Hot-swappable Batteries

    IEI’s POCm series with three hot-swappable, rechargeable lithium-ion batteries provides non-stop operation service for nursing cares
    ● Long lasting battery (7800mAh/87Wh each battery pack) provide sufficient power for running 8~16 hours
    ● The user can change the low power hot-swappable battery anytime without work interruption and avoid water and dust dropping
    ● Ergonomic side-facing design ease the use for nurses with different height and avoid dust and water accumulation
    ● The fool-proof battery slot with clean indication can avoid wrong operations.

    Three Hot-swappable Batteries

    6-Slot Battery Charging Station

    The 6-slot battery charging station built-in with an optimized charging module provides fast charging capability. Six batteries can be fully charged within 3.5 hours delivering greater convenience for the daily charging task.
    ● Side slide-in design prevents the station from dust and water accumulation
    ● Sleek outlook design with 15V/280W AC power adapter.

    pocm-medical-panel-pc-docking-6bay

    IRM Utility (IEI Real-time Monitoring)

    The workload of the IT departments in digital hospitals is increased, owing to the prevalence of IT device deployment. The built-in IRM (IEI Real-time Monitoring) software not only helps the terminal users check the status of batteries but also allows the IT technicians to monitor the whole system at a remote site. This design greatly enhances the working efficiency of our users and reduces time wasting in daily system inspection job.

    IRM Utility

    Multi-touch Screen for Medical Use

    IEI’s POCm series integrated with seamless PCAP glass touch screen is extremely easy to clean and very resistant to scratches and chemicals.
    ● 10-point PCAP touch enabling smooth operation and easily customized to 1-point or 2-point touch by firmware adjustment.
    ● 6H surface scratch resistance
    ● Gloved touch support in standard firmware allows operation with multiple layers of surgical gloves
    ● Advanced water handling prevents false touch phenomena caused by fluids and gels on the touch surface

    Multi-touch Screen for Medical Use

    Anti-bacteria Housing

    The shell of the POCm series contains antibacterial silver ion to effectively inhibit the propagation of bacteria. And the test was executed in accordance with JIS Z 2801“Anti-microbial products test for anti-microbial activity and efficacy”.

    Bacteria Types:

    ● Staphylococcus aureus
    ● Escherichia coli
    ● Pseudomonas aeruginosa
    ● Klebsiella pneumoniae
    ● MRSA

    Bacteria Types

    Antimicrobial Mechanism of IONPURE

    With the presence of moisture, IONPURE releases a few Ag ions gradually. As microbes charged with minus on their surface, Ag ions that have plus are drawn toward microbes, and disturb their electric balance. And just then microbes are burst their cell wall and extinguished.

    I/O Interface

    pocm-medical-panel-pc-io

    Dimension

    pocm-w24c-medical-panel-pc-dimension

  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      BluetoothV4.2 (M.2 2230 A-E key module)
      Wi-FiIEEE 802.11 a/b/g/n/ac 2T2R module
      Display
      Backlight MTBF(hrs)30000
      Brightness(cd/m2)250
      Contrast Ratio1000:1
      LCD Size24＂
      Max Resolution1920x1080
      Environment
      Humidity10% to 90% (non-condensing)
      IP LevelFront: IP65, Back: IP32
      Operating Temperature0°C~40°C
      Storage Temperature-20°C~60°C
      I/O Interface
      Audio2 x 3W Speaker
      Expansion1 x Full-size/half-size PCIe Mini (PCIe+USB)
      I/O Ports and Switches2 x USB 2.0 (side)
      4 x USB 3.0 port
      2 x HDMI output
      2 x GbE LAN port
      2 x RS-232/422/485
      1 x Audio out (side) + 1 x Mic in (side)
      1 x Digital Mic
      1 x DC jack
      RAM1 x 4GB, 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB)
      Other Features
      Camera5-megapixel CMOS front-facing camera with auto-focus and digital microphone
      Microphonedigital microphone
      System CoolingFanless
      Physical Characteristics
      ColorWhite
      Construction Front PanelABS+PC plastic with anti-bacterial material
      Dimensions (LxWxH) (mm)594.6 x 379.6 x 71 mm
      MountingWall, Stand and Arm VESA 100/75
      Power
      Power adapter150W medical power adapter
      Power Supply3 slots for hot swappable battery pack
      System
      Cooling method / System FanFanless
      CPU6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U
      Storage1 x 2.5＂ accessible SATA HDD bay
      2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID
      Touch
      Touch ScreenProjected capacitive type with 10-point multi-touch
      Weight
      Weight8.18 kg without batteries
      9.53 kg with 3 batteries
      I/O Interface
      I/O Interface1 x AT/ATX Switch
      2 x HDMI
      2 x LAN(GbE)
      1 x Line out
      1 x Mic
      1 x Power In(19V DC jack)
      2 x RS-232
      2 x Speaker
      2 x USB 2.0
      4 x USB 3.0
      LED Function
      LED Function1 x RFID indicator
      3 x Battery indicator (Color : Blue/Red)
      1 x Power Indicator
      OSD Function
      OSD Function1 x Brightness up
      1 x Brightness down
      1 x Volume up
      1 x Volume down
      1 x Touch lock & LCD on/off
      1 x Task Manager & Power on/off

    • Ordering Info.

      Item No. Description
      POCm-W24C-ULT3-C/PC/4G-R1023.8" 250cd/m² FHD Medical panel PC ,with Intel® Celeron 3855U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10
      POCm-W24C-ULT3-i5/PC/4G-R1023.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10
      POCm-W24C-ULT3-i7/PC/4G-R1023.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i7-6600U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10

    • Package Contents

      • 1 x Power Adapter

      • 1 x Power Cord
