シングルボードコンピュータ
フルサイズCPUカード
The PICMG 1.3 allows users to protect their investment in PCI (PCI-X) technology while taking advantage of the speed and increased bandwidth of PCI Express. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

PCIE-H810

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® with Intel® H81
Intel® H81
LGA1150
Two 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
support up to 16 GB
Display Output :
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 2.0

PCIE-Q170

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU per Intel® Q170
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170 Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (Q170 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

PCIE-Q370

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i9/i7/i5/i3/ Pentium®/Celeron® CPU per Intel® Q370, DDR4, VGA/HDMI and DP, Dual Intel® PCIe GbE, USB 3.1, SATA 6Gb/s, M.2, HD Audio, iAMT and RoHS
● CPU:
LGA1151 socket supports 8th/9th generation Intel® Core® i9/i7/i5/i3, Pentium® or Celeron® processor
● Chipset:
Intel® Q370
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB Dual display supported
» PCIE-Q370-R11
1 x VGA (up to 1920 x 1080@60Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
» PCIE-Q370-HDMI-R11**
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DP (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.0 (Rear IO type A)
1 x USB 2.0 (Type A 180°)
● Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.0 (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
● Expansion
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

PCIE-Q670

Full-size PICMG 1.3 CPU Card supports LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q67
Intel® Q67
LGA1155
Two 240-pin 1066/1333MHz
dual-channel DDR3 SDRAM
DIMMs (system max. 16GB)
Display Output
1 x VGA
1 x DVI-D (via header to IO-KIT-001-R20 DVI-D/USB module) (optional)
4 x Internal RS-232/422/485
1 x Internal RS-422/485
6 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x SMBus
2 x USB 2.0
1 x VGA

PCIE-Q870-i2

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32GB
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x LPT
2 x USB 3.0

SPCIE-C2260-i2

Full-size PICMG 1.3 CPU Card supports LGA 1150 Intel® Xeon® E3, Core™ i3, Pentium® and Celeron® with Intel® C226, DDR3
Intel® C226
LGA1150
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
Display Output :
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x Ethernet
1 x I²C
1 x Internal Display
4 x Internal RS-232
1 x Internal RS-422
1 x Internal RS-485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 3.0

SPCIE-C236

Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236 Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
2 x RS-232
1 x iDP
2 x RS-232/422/485
1 x LPT
2 x USB 3.0 (19-pin box header)
6 x SATA 3.0 (6Gb/s) (C236 supports RAID 0, 1, 5, 10)
7 x USB 2.0 (1 type A 180°, 6 by pin header)

SPCIE-C246

Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E, Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU per Intel® C246, ECC & non-ECC DDR4, HDMI, DP, Dual Intel® PCIe GbE, USB 3.1 Gen 1, SATA 6Gb/s, M.2, HD Audio, Intel® AMT and RoHS
‧CPU:
LGA1151 socket supports Intel® Xeon® E, 8th/9th generation Core™ i9/i7/i5/i3, Pentium® or Celeron® processor
‧Chipset:
Intel® C246
Four 288-pin 2666MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64GB ECC & non-ECC ‧Dual display supported:
1 x HDMI (up to 4096 x 2304@30Hz)
1 x Internal DisplayPort (up to 4096 x 2304@60Hz)
‧External I/O Interface:
2 x USB 3.1 Gen 1 (5Gb/s) (Rear IO type A)
1 x USB 2.0 (Type A 180°)
‧Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-422/485 (1x4 pin, P=2.0)
2 x USB 3.1 Gen 1 (5Gb/s) (2x10 pin)
3 x RS-232 (2x5 pin, P=2.54)
6 x SATA 6Gb/s (RAID 0/1/5/10 supported)
6 x USB 2.0 (2x4 pin, P=2.54)
‧Expansion:
1 x M.2 M key
1 x PCIe x16 & 4 x PCIe x1 signal via golden finger
4 x PCI signal via golden finger

WSB-BT

Full-size PICMG 1.0 CPU Card supports Intel® Celeron™ on-board SoC with VGA, iDP, Dual Intel® PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA, COM, CF, Audio and RoHS
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1333/1066MHz dual-channel DDR3L SDRAM unbuffered DIMM supports
up to 8GB (J1900) or 4GB (N2807)
1 x VGA (up to 1920x1200@60Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
•External I/O Interface
1 x USB 3.0
1 x USB 2.0
•Internal I/O Interface
1 x CF Type II
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin)
1 x mSATA (SATA 3Gb/s)
1 x USB 2.0 (180º Type-A)
2 x RS-232/422/485 (2x5 pin, P=2.54)
2 x SATA 3Gb/s
4 x RS-232 (2x5 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.54)
•Expansion
1 x Full/Half-size PCIe Mini card slot
PCI and ISA signal via golden finger

WSB-H610

Full-size PICMG 1.0 CPU Card supports 32nm LGA 1155 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® H61,
Intel® H61
LGA1155
Two 240-pin 1333/1066MHz dualchannel
DDR3 & DDR3L (1.35V) DIMMs
supported
(system max. 16GB)
1 x VGA
1 x DVI-D(via header to IO-KIT-001-R20 DVI-D/USB module)(optional)
1 x USB 2.0
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
6 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x SMBus

WSB-H810

Full-size PICMG 1.0 CPU Card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81,
Intel® H81
LGA1150
Twp 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Dual independent display
VGA (up to 1920x1200@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x USB 2.0
1 x VGA
ハーフサイズCPUカード
IEI offers ISA, PCISA, PCI and PICOe half size CPU cards. (PICOe = PCI + PCIe x4) The benefits of PICOe : *Same dimension, backwards compatible but half the size of PCI SBC. *Higher performance as PCI only solution for the same price. -->Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

HPCIE-C236

Half-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i3/ Pentium®/Celeron® CPU per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236 Two 260-pin 1600/2133MHz Dual-Channel DDR4 SODIMM ECC & non-ECC unbuffered Memory supported up to 32GB 1 x VGA ( via Chrontel CH7517A, up to 1920x1200 @ 60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485
4 x USB 2.0 (by pin header)
2 x SATA 3.0 (SATA0, SATA1) (Q170 supports RAID 0, 1)

HPCIE-Q170

Half-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170 Two 260-pin 1867/2133 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 32 GB memory 1 x VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x 6-pin wafer for KB/MS
1 x iDP
2 x RS-232/422/485 4 x USB 2.0 (by pin header)
2 x SATA 6Gb/s (SATA0, SATA1) (Q170 supports RAID 0, 1)

IOWA-LX

Half-size Pure ISA CPU Card with On-board AMD Geode™ LX600 Processor (366 MHz), 128KB L2 cache, On-board 128MB Memory
AMD Geode™ CS5536
On Board
On-board 128MB (max.) 200/266MHz DDR SDRAM supported
One 200-pin 512MB (max.) 200/266MHz DDR SDRAM supported
Single HD VOP 2.0 output
1920x1440 CRT output
1600x1200 TFT output
2 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
1 x KB/MS
1 x LPT
1 x RS-232
1 x RS-422/485
1 x VGA

PCISA-BT

Half-size PCISA CPU Card supports Intel® 22nm Atom™ On-board SoC with VGA
On Board One 204-pin 1066/1333MHz single-channel DDR3L SDRAM unbuffered DIMM
(system max. 8GB)
Dual independent display
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 20x1200@60Hz)
1 x I²C
2 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x SMBus
1 x USB 2.0
1 x USB 3.0
1 x VGA
バックプレーン
IEI offers PEMUX PICMG1.3, PICMG 1.0, PCI/PCI EXPRESS, PCISA and ISA backplane. --> Backplane Selection Table
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

BP-10S-RS

10-slot backplane with ten ISA slots
ISA Slot:10

BP-3S-RS

3-slot backplane with three ISA slots
ISA Slot:3

BP-4S-RS

4-slot backplane with four ISA slots
ISA Slot:4

BP-5S-RS

5-slot backplane with firve ISA slots
ISA Slot:5

BP-6S-RS

6-slot backplane with six ISA slots
ISA Slot:6

BP-7S-RS

7-slot backplane with seven ISA slots
ISA Slot:7

BP-8S-RS

8-slot backplane with eight ISA slots
ISA Slot:8

HPE-3S1

3-slot backplane with two PCI slots
PCI Slot:2

HPE-3S2

3-slot backplane with one PCI slot and one PCIe x4 slot
PCIe x 4:1
PCI Slot:2

HPE-4S1

4-slot backplane with three PCI slots
PCI Slot:3

HPE-4S2

4-slot backplane with two PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:2

HPE-5S1

5-slot backplane with four PCI slots
PCI Slot:4

HPE-5S2

5-slot backplane with three PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:3

HPE-6S1

6-slot backplane with four PCI slots and one PCIe x4 slot
PCIe x 4:1
PCI Slot:4

HPE-8S0

7-slot backplane with four PCI slots and two PCIe x1 slots
PCIe x 1:2
PCI Slot:4

HPE2-3S1

1* PCIE x16 slot from CPU
1* PCIE x4 slot from PCH
1* ATX power connector (20pin)
1* IOPWR (20 pin)
1* SM BUS connector (2 pin)
1* PWRGD connector (2 pin)
1* Reset connector (2 pin)
1* PWRBTN connector (2 pin)
2* Fan connector (3 pin)
1* ATXCTL connector (3 pin)
Power LED

HPXE2-5S1

5-slot PICMG 1.3 backplane for half-size SBC, with two PCI slots and one PCIe x16 slot (x16 signal)
PCIe x 16:1
PCI Slot:2

HPXE2-6S1

6-slot PICMG 1.3 backplane for half-size SBC, with three PCI
PCIe x 8:1
PCI Slot:3

HPXE2-7S1

7-slot PICMG 1.3 backplane for half-size SBC, with three PCI slots and two PCIe x16 slots (x8 signal)
PCIe x 8:5
PCI Slot:3

HPXE2-8S1

8-slot PICMG 1.3 backplane for half-size SBC, with four PCI
PCIe x 8:2
PCI Slot:4

IP-10S-RS

10-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5

IP-3S-RS

3-slot backplane with two PCI slots
PCI Slot:2

IP-4S-RS

4-slot backplane with three PCI slots
PCI Slot:3

IP-4S2A-RS

4-slot backplane with three PCI slots
PCI Slot:3

IP-5SA2-RS

5-slot backplane with four PCI slots
PCI Slot:4

IP-6S-RS

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2

IP-6SA-RS

6-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2

IPX-13S-RS

13-slot backplane with twelve PCI slots
PCI Slot:12

IPX-9S-RS

9-slot backplane with eight PCI slots
PCI Slot:8

PCI-10S-RS

0-slot backplane with four PCI slots and five ISA slots
PCI Slot:4
ISA Slot:5

PCI-10S2-RS

10-slot backplane with four PCI slots and five ISA slotsS
PCI Slot:4
ISA Slot:5

PCI-12S-RS

12-slot backplane with four PCI slots and seven ISA slots
PCI Slot:4
ISA Slot:7

PCI-13SD-RS

13-slot dual-system backplane with system 1 having three PCI slots and three ISA slots and system 2 having four PCI slots and three ISA slots
PCI Slot:3+4
ISA Slot:3+4

PCI-14S-RS

14-slot backplane with four PCI slots and nine ISA slots
PCI Slot:4
ISA Slot:9

PCI-14S2-RS

14-slot backplane with four PCI slots and eight ISA slots
PCI Slot:4
ISA Slot:8

PCI-14S3-RS

14-slot backplane with four PCI slots and nine ISA slots
PCI Slot:4
ISA Slot:9

PCI-2SD2-RS

1U chassis backplane with two PCI slots
PCI Slot:R2

PCI-4S-RS

4-slot backplane with three PCI slots and one ISA slot
PCI Slot:3
ISA Slot:1

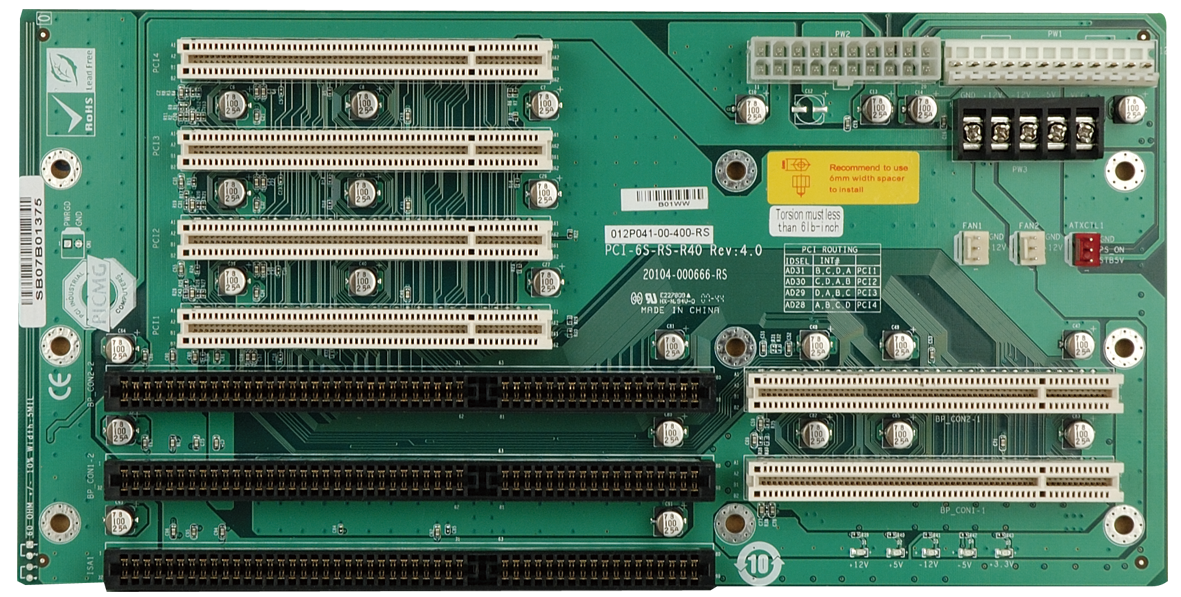

PCI-5S-RS

5-slot backplane with three PCI slots and two ISA slots
PCI Slot:3
ISA Slot:2

PCI-5S2-RS

5-slot AT power backplane with four PCI slots and one ISA slot
PCI Slot:4
ISA Slot:1

PCI-5S2A-RS

5-slot ATX power backplane with four PCI slots and one ISA slot
PCI Slot:4
ISA Slot:1

PCI-5SD6-RS

2U chassis backplane with four PCI slots
PCI Slot:L2+R2

PCI-5SDA-RS

2U chassis backplane with four PCI slots
PCI Slot:L2+R2

PCI-6S-RS

6-slot backplane with four PCI slots and two ISA slots
PCI Slot:4
ISA Slot:2

PCI-6SD-RS

2U chassis backplane with two PCI slots and two ISA slots
PCI Slot:L1+R1
ISA Slot:L1+R1

PCI-7S-RS

7-slot backplane with four PCI slots and three ISA slots
PCI Slot:4
ISA Slot:3

PCI-8S-RS

8-slot backplane with four PCI slots and four ISA slots
PCI Slot:4
ISA Slot:4

PE-10S

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-10S2

10-slot backplane with one PCIe x16 slot, four PCIe x1 slots and four PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:4

PE-13SD

13-slot backplane with two PCIe x16 slots, one PCIe x4 slot, four PCIe x1 slot and four PCI slots
PCIe x 16:1/1
PCIe x 4:1/0
PCIe x 1:0/4
PCI Slot:42402

PE-2SD1

2-slot backplane with one PCIe slot
PCIe x 16:1

PE-2SD2

2-slot backplane with one PCI slot
PCI Slot:1

PE-3S1

1* PCIE x16 slot from CPU
1* PCIE x4 slot from PCH
1* ATX power connector (20pin + 4pin)
1* IOPWR (20 pin)
1* SM BUS connector (2 pin)
1* PWRGD connector (2 pin)
1* Reset connector (2 pin)
1* PWRBTN connector (2 pin)
4* Fan connector (3 pin)
1* ATXCTL connector (3 pin)
Power LED

PE-4S

4-slot backplane with one PCIe x16 slot, one PCIe x4 slot and one PCI slot
PCIe x 16:1
PCIe x 4:1
PCI Slot:1

PE-4S2

4-slot backplane with one PCIe x16 slot and two PCI slots
PCIe x 16:1
PCI Slot:2

PE-5S

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots RACK-500G 5U 5-slot full-size
PCIe x 16:1
PCIe x 4:1
PCI Slot:2

PE-5S2

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3

PE-6S

6-slot backplane with one PCIe x16 slot, two PCIe x1 slots and two PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:2

PE-6S2

6-slot backplane with one PCIe x16 slot, one PCIe x4 slot and three PCI slots
PCIe x 16:1
PCIe x 4:1
PCI Slot:3

PE-6SD

5-slot backplane with one PCIe x16 slot and three PCIe x1 slots
PCIe x 16:1
PCIe x 1:3

PE-6SD3

5-slot backplane with one PCIe x16 slot, one PCIe x4 slot and two PCI slots
PCIe x 16:1
PCIe x 4:1
PCIe x 1:3
PCI Slot:2

PE-7S

7-slot backplane with one PCIe x16 slot, two PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:2
PCI Slot:3

PE-7S2

7-slot backplane with one PCIe x16 slot, four PCIe x1 slots and one PCI slot
PCIe x 16:1
PCIe x 1:4
PCI Slot:1

PE-8S

8-slot backplane with one PCIe x16 slots, three PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:3

PE-9S

9-slot backplane with one PCIe x16 slot, four PCIe x1 slots and three PCI slots
PCIe x 16:1
PCIe x 1:4
PCI Slot:3

PX-10S-RS

10-slot backplane with seven PCI slots and three ISA slots
PCI Slot:7
ISA Slot:3

PX-14S3-RS

14-slot backplane with twelve PCI slots and two ISA slots
PCI Slot:12
ISA Slot:2

PX-14S5-RS

14-slot backplane with seven PCI slots and six ISA slots
PCI Slot:7
ISA Slot:6

PXE-12S

12-slot backplane with one PCIe x16 slot, four PCI-X slots and four PCI slots
PCIe x 16:1
PCI-X Slots:4
PCI Slot:4

PXE-13S

13-slot backplane with one PCIe x16 slot, three PCIe x1 slots and eight PCI slots
PCIe x 16:1
PCIe x 1:3
PCI Slot:8

PXE-19S2

19-slot backplane with one PCIe x16 slot, one PCIe x1 slot and sixteen PCI slots
PCIe x 16:1
PCIe x 1:1
PCI Slot:16

PXE-9S2

9-slot PICMG 1.3 backplane, one PCIe x16 with x16 slot, 3 PCIe x4 with x16 slots, four PCI slots RoHS
PCIe x 16:1
PCIe x 4:3
PCI Slot:4

SPE-4S

4-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,2 PCIe x8 w/ x16 slots,1 PCIe x4,RoHS
PCIe x 8:2
PCIe x 4:1

SPE-6S

6-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,5 PCIe x4,RoHS
PCIe x 4:5

SPE-9S

7-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slots,3 PCIe x4,3 PCI,RoHS
PCIe x 8:1
PCIe x 4:3
PCI Slot:3

SPXE-11S

IEI Server Grade Backplane Solution, PICMG 1.3 Backplane for 4U rack-mount chassis
2 x PCIE x4 from CPU
1 x PCIE x4 from PCH
Slot type: X4 signal with X16 slot
3 x PCIE x4 from CPU via PLX8724
Slot type: X4 signal with X16 slot
4 x PCI from CPU card
2 x ATX power connector (24pin + 4pin)
Power LED
1 x IOPWR (20 pin)
1 x SM BUS connector (2 pin)
1 x PWRGD connector (2 pin)
1 x Reset connector (2 pin)
1 x PWRBTN connector (2 pin)
4 x Fan connector (3 pin)
1 x ATXCTL connector (3 pin)
Mounting hole compatible with PCI-14S

SPXE-14S

14-Slot PICMG 1.3 PCIe to PCI Bridge Backplane,1 PCIe x8 w/ x16 slot,12 PCIe x1,RoHS
PCIe x 8:1
PCIe x 1:12
産業用マザーボード
IEI industrial motherboard series including ATX, Micro-ATX and Mini-ITX motherboards. With multifunctional and high performance features, IEI industrial motherboard series are suited to applications in POS, KIOSK, vending machine, healthcare industry, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

eKINO-BT

Mini-ITX SBC supports AUPS sub-system, 22nm Intel® Atom™/Celeron® on-board SoC
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Two 204-pin 1066/1333MHz dual-channel
unbuffered DDR3L SDRAM SO-DIMM
supports up to 8 GB (J1900, N2930, E3845, E3827,
E3826) or 4 GB (N2807, E3825, E3815)
VGA (up to 2560x1600@60Hz)
LVDS1: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
LVDS2: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x RS-232
1 x RS-422/485
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with USB 2.0)
1 x PCIe x1

gKINO-DMF

Mini-ITX SBC supports AMD Merlin Falcon SoC Proccessor
FP4 BGA supports AMD Merlin Falcon SoC
RX-421BD on-board SoC (2.1GHz, quad-core, 2MB cache, TDP=35W)
RX-216GD on-board SoC (1.6GHz, quad-core, 1MB cache, TDP=15W)
Two 260-pin 2400MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs support up to 64 GB Triple Independent Display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x MicroSD card slot
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x RS-232 (2x5 pin, P=2.0)
2 x RS-232 (support Cctalk, TTL)(1x4 pin, P=2.54)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V/12V output

IMB-H110

microATX Motherboard supports 14nm LGA1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110 Memory Max. : Two 288-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM supported up to 64GB Dual display
VGA (Chrontel 7517)
DVI-I (ASM1442, Chrontel 7517)
LVDS (Chrontel 7511)
iDP
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (1x4 pin, P=2.0, colay with COM4)
1 x LPT (2 x 13pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x SATA 6Gb/s
10 x RS-232 (2x5 pin, P=2.0)
Expansion:
1 x PCIe x16 slot (Gen3)
1 x Full-size PCIe Mini card slot
1 x PCIe x1 slot (Gen2)
2 x PCI slot

IMB-H810-i2

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium®, Celeron® CPU per Intel® H81
Intel® H81
LGA1150
Two 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16GB
Dual independent display
1 x VGA (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
8 x Internal RS-232
8 x Internal USB 2.0
1 x LPT
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x1 slot
2 x PCI slot

IMB-Q870-i2

microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
HDMI (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
KB/MS
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
1 x PCI slot

IMBA-C2260-i2

ATX motherboard supports 22nm LGA1150 Intel® Xeon E3, Core™ i3, Pentium® and Celeron®
Intel® C226
LGA1150
Four 240-pin 1600/1333MHz dual-channel DDR3 & DDR3L SDRAM ECC and non-ECC
unbuffered DIMMs support up to 32GB
VGA (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz)
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
2 x USB 2.0
4 x USB 3.0
1 x I²C
9 x RS-232
1 x RS-422/485
2 x USB 3.0
11 x USB 2.0
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x PS/2 KB/MS
1 x TPM connector (2x10 pin)

IMBA-C2360-i2

ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series,
Core™ i3, Pentium®, Celeron® processor per Intel® C236
LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor + Intel® C236 Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB Display Output : Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1 x 6PIN)
4 x USB 2.0
1 x USB 3.0
4 x RS-232 (2 x 5 PIN,P=2.0)
2 x RS-422/485 (2 x 5 PIN,P=2.54)
1 x LPT (2 x 13PIN,P=2.54)
6 x SATA 6Gb/s
Expansion:
1 x Full-size PCIe Mini card slot
2 x PCIe x8 slot (Gen3)
2 x PCI slot
3 x PCIe x4 slot (Gen3)

IMBA-H110

ATX motherboard supports 14nm LGA1151 6th Generation Intel® Core™ i7/i5/i3,
Celeron® and Pemtium® processor
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® H110 Memory Max. : Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB Display Output : Dual independent display
1 x DVI-I (up to 2560x1200@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
1 x KB/MS (1x6 pin)
1 x LPT (2x13 pin, P=2.54)
1 x USB 2.0 (type A)
2 x USB 2.0 (2x4 pin, P=2.54)
2 x RS-232 (2x5 pin, P=2.54)
4 x SATA 6Gb/s (support hot plug)
2 x RS-232/422/485 (2x5 pin, P=2.54, colay with COM5,6)
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
6 x PCI slot

IMBA-H112

ATX Motherboard supports 14nm LGA1151 6th/7th Generation Intel® Core i7/i5/i3, Celeron® and Pentium® processor, DDR4, Dual Independent Displays VGA and HDMI, Dual Intel® GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
˙CPU:
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor

˙Chipset:
Intel® H110
Two 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB Dual independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
˙External I/O Interface:
4 x USB 3.2 Gen1
2 x USB 2.0
1 x RS-232

˙Internal I/O Interface:
1 x KB/MS (1x6 pin)
1 x RS-232/422/485 (2x5 pin, P=2.54)
1 x LPT (2x13 pin, P=2.54)
3 x SATA 6Gb/s (support Hot plug)
1 x USB 2.0 (type A)
4 x RS-232 (2x5 pin, P=2.54)
2 x USB 2.0 (2x4 pin, P=2.54)
˙Expansion
1 x Full-size PCIe Mini card slot (support mSATA)
1 x PCIe x16 slot (Gen3)
1 x PCIe x4
4 x PCI slot

IMBA-H810

ATX motherboard supports 22nm LGA 1150 4th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU with Intel® H81
Intel® H81
LGA1150
Two 240-pin 1333/1600 MHz dual-channel DDR3 SDRAM unbuffered DIMM supported
(system max. 16 GB)
Dual independent display
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x I²C
3 x Internal RS-232
1 x Internal RS-422/485
5 x Internal USB 2.0
1 x KB/MS
2 x LAN LED
1 x LPT
2 x RS-232
1 x SMBus
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16
2 x PCIe x1
1 x PCIe Mini
4 x PCI
1 x mSATA (share with SATA4)

IMBA-Q170-i2

ATX motherboard supports 14nm LGA1151 IntelR CPU IntelR Q170,
LGA 1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Pentium® or Celeron® processor + Intel® Q170 Four 288-pin 2133 MHz dual-channel DDR4 SDRAM unbuffered DIMMs support up to 64 GB Display Output : Triple independent display
1 x VGA (up to 1920x1200@60 Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz)
4 x Internal RS-232
5 x Internal USB 2.0
1 x Internal USB 3.0
2 x Internal RS-232/422/485
1 x KB/MS
1 x LPT
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA)
2 x PCI slot
2 x PCIe x8 slot (Gen3)
3 x PCIe x4 slot (Gen3)

IMBA-Q370

ATX motherboard supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, triple independent displays, dual GbE LAN, M.2, USB 3.1 Gen 2 (10Gb/s), SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron®
Intel® Q370
Four 288-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs supported up to 64GB Triple independent display
1 x VGA (up to 1920 x 1080@60Hz)
1 x DP++ (up to 4096 x 2304@60Hz)
1 x HDMI (up to 4096 x 2304@30Hz)
1 x internal Displayport (up to 4096 x 2304@60Hz)
● External I/O Interface
2 x USB 3.1 Gen2
1 x RS-232
2 x USB 3.1 Gen1
1 x PS/2 KB/MS
2 x USB 2.0
● Internal I/O Interface
1 x KB/MS (1x6 pin)
2 x RS-232/422/485 (2x5 pin, P=2.54)
3 x RS-232 (2x5 pin, P=2.54)
2 x USB 3.0 (2x10 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.54)
6 x SATA 6G/s (RAID 0/1/5/10 supported)
● Expansion
2 x PCIe x8
3 x PCIe x4
2 x PCI
1 x M.2 M Key (2280, PCIe x2 only)
1 x M.2 A key (2230, PCIe x1 & USB 2.0)

IMBA-Q670

ATX motherboard supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU with Intel® Q67
Intel® Q67
LGA1155
4x240-pin 1333/1066MHz
dual-channel DDR3 SDRAM
unbuffered DIMM (system max.
32GB)
Dual display supported
1 x VGA
1 x HDMI
1 x DVI-D
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
8 x Internal USB 2.0
1 x LPT
1 x RS-232
1 x RS-422/485
1 x SMBus
2 x USB 2.0
2 x USB 3.0
5 x RS-232
1 x RS-422/485
2 x USB 3.0
10 x USB 2.0
1 x LPT
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x PS/2 KB & MS
1 x TPM connector (2x10 pin)

IMBA-Q870-i2

ATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87
Intel® Q87
LGA1150 4th generation
Four 240-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 32 GB
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
HDMI (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
1 x I²C
4 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x Internal USB 3.0
1 x KB/MS
2 x LAN LED
1 x LPT
1 x RS-232
1 x SMBus
4 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
4 x PCI slots

KINO-AQ170

Mini-ITX SBC supports LGA 1151 Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU with Intel® Q170
LGA 1151 socket supports 6th generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processor
Intel® Q170
Memory Max. : Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMM supported (system max.64 GB) Display Output : Triple independent displays
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI converter (up to 4096x2160@60Hz)
1 x HDMI/DP (up to 3840x2160@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
4 x USB 2.0 (2x4 pin, P=2.0)
Expansion:
1 x Full-size PCIe Mini slot (support mSATA)
1 x PCIe x8 slot

KINO-DAL

Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with HDMI/LVDS/VGA, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W) Two 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB Triple independent display
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 3840x2160@30Hz)
- External I/O Interface
4 x USB 3.0
2 x RS-232/422/485
- Internal I/O Interface
1 x KB/MS (1x6 pin)
1 x MicroSD card slot
1 x M.2 (B key) (2242, colay SATA1, with USB signal)
1 x USB 2.0 (180° Type-A)
2 x SATA 6Gb/s with 12/5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
- Expansion
1 x PCIe x1 card slot
1 x M.2 B key (SATA & USB 2.0)
1 x Full/Half-size PCIe Mini card slot

KINO-DBT

Mini-ITX SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC,
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.5W)
2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported (system max. 8GB) Dual independent display
VGA (up to 2560x1600@60 Hz)
DVI-D (up to 1920x1080@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD slot (E38XX SKU only)
1 x PCIe x4 slot (with PCIe x1 signal)
1 x mSATA share with SATA port 2

KINO-DCM236

Mini-ITX SBC supports 6th Intel® Xeon® Processor E3 v5 series, Core™ i3, Celeron® per Intel® CM236, DDR4 with ECC support, HDMI 2.0, dual Intel® GbE, SATA 6Gb/s, USB 3.0, PCIe Mini, M.2, HD Audio and RoHS
6th generation Intel® processor
Intel® Xeon® processor E3-1505M v5 (up to 3.7GHz, quad-core, 8M Cache, TDP=45W)
Intel® Xeon® processor E3-1505L v5 (up to 2.0GHz, quad-core, 8M Cache, TDP=25W)
Intel® Core™ i3-6102E processor (up to 1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® processor G3902E (up to 1.60GHz, dual-core, 2M cache, TDP=25W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 ECC and non-ECC unbuffered
SDRAM SO-DIMMs support up to 64GB
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x KB/MS (1x6 pin, P=2.0)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
Expansion:
1 x PCIe x16 slot
1 x Full-size PCIe Mini card slot (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini card slot

KINO-DH110

Mini-ITX SBC supports 14nm LGA1151 Intel® 6th/7th Generation Core™ i7/i5/i3, Celeron® and Pentium® Processor, DDR4, Dual Independent Displays, Dual GbE LAN, M.2, USB 3.0, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports Intel® 6th/7th generation Core™ i7/i5/i3, Celeron® and Pentium® processor Two 260-pin 2133MHz Dual-Channel DDR4 SDRAM Unbuffered DIMM support up to 32GB * Dual independent display
1 x HDMI (up to 3840x2160@60Hz)
1 x DP++ (up to 3840x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
* External I/O Interface
4 x USB 3.0
1 x RS-232/422/485
* Expansion
1 x Full-size PCIe Mini card slot (PCIe & USB)
1 x M.2 B Key (SATA)
1 x PCIe x16 slot (Gen2)

KINO-DH310

Mini-ITX SBC supports 14nm LGA1151 Intel® 8th/9th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, dual GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS
LGA1151 socket supports 8th/9th generation Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (35W/65W)
Intel® H310
Two 260-pin 2666/2400 MHz Dual-Channel DDR4 SDRAM Unbuffered SO-DIMM slots
supported up to 64GB
* Dual independent display
2 x HDMI (up to 4096x2160@30Hz)
1 x internal Displayport (up to 4096x2304@60Hz) (optional)
● External I/O Interface
4 x USB 3.0
2 x RS-232
● Internal I/O Interface
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 5/12V SATA power connector (No RAID)
● Expansion
1 x PCIe x16
1 x M.2 M key (2280, Gen2 PCIe x2 only)
1 x M.2 A Key (2230, PCIe x1 & USB 2.0)

KINO-DH610

Mini-ITX SBC supports LGA1155 Intel® Core™ i7/i5/i3/Pentium®/Celeron® CPU
Intel® H61
Socket H2
2 x 204-pin, Max.16GB, 1066/1333 MHz
dual-channel DDR3 SO-DIMMs
Dual display supported
1 x VGA
1 x HDMI
1 x DVI-D
1 x RS-232
1 x RS-422/485
10 x USB 2.0
1 x RS-232
1 x RS-422/485
10 x USB 2.0
1 x KB/MS by 6-pin header
1 x TPM connector (2x10 pin)

KINO-DH810

Mini-ITX SBC with LGA1150 4th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU
Intel® H81
LGA1150
Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
VGA (up to 1920x1200@60 Hz)
DVI-D (up to 2560x1600@60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
3 x Internal RS-232
1 x Internal RS-422/485
4 x Internal USB 2.0
2 x RS-232
2 x USB 2.0
2 x USB 3.0
Expansion:
1 x PCIe x1 slot
1 x Full-size PCIe Mini card slot (supports mSATA, SATA 3Gb/s signal only)

KINO-DQM170

Mini-ITX SBC supports 6th Intel® Core™ Mobile CPU
Intel® QM170
6th generation Intel® Core™ mobile processor
Intel® Core™ i7-6820EQ (3.5GHz, quad-core, 8M cache, TDP=45W)
Intel® Core™ i5-6440EQ (3.4GHz, quad-core, 6M cache, TDP=45W)
Intel® Core™ i3-6102E (1.90GHz, dual-core, 3M cache, TDP=25W)
Intel® Celeron® G3902E (1.60GHz, dual-core, 2M cache, TDP=25W)
Two 260-pin 2133 MHz dual-channel DDR4 SDRAM SO-DIMMs supported
(system max. 64 GB)
Triple independent display
2 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI 2.0 by MCDP2800-BB DP to HDMI/DVI converter (up to 4096x2160@60Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x KB/MS (1x6 pin, P=2.00)
4 x SATA 6G/s (RAID 0/1/5/10 support)
2 x RS-232/422/485 (1x9 pin, P=1.25)
4 x USB 2.0 (2x4 pin, P=2.0)
3 x RS-232 (1x9 pin, P=1.25)
Expansion:
1 x Full-size PCIe Mini (support mSATA)
1 x M.2 2230 (A key)
1 x Half-size PCIe Mini
1 x PCIe x16 slot

KINO-DQM871-i1

Mini-ITX SBC supports 4th generation 22nm IntelR mobile processors,
Intel® QM87 Two 204-pin 1066/1333/1600 MHz DDR3 dual-channel SO-DIMMs (support up to 16 GB) Display Output : VGA (up to 1920x1200@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
Dual HDMI (up to 2500x1600@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
4 x Internal RS-232
6 x Internal USB 2.0
2 x Internal USB 3.0
1 x Internal RS-232/422/485
1 x KB/MS
Expansion:
1 x PCIe x16 (Gen.3)
1 x Full-size PCIe Mini card slot (support mSATA)

KINO-QM770

Mini-ITX SBC with Socket G2 for Intel® 22nm mobile CPU
Intel® QM77
Socket G2
2 x 204-pin, Max. 16GB, 1066/1333/1600
MHz dual-channel DDR3 SO-DIMMs
Triple display supported
2 x HDMI
1 x DVI-I
1 x18/24-bit dual-channel LVDS
2 x RS-232
1 x RS-422/485
4 x USB 2.0
4 x USB 3.0
2 x RS-232
1 x RS-422/485
4 x USB 2.0
4 x USB 3.0
1 x 4-pin wafer for SMBus
1 x KB/MS by 6-pin header
1 x TPM connector (2x10 pin)

tKINO-AL

Thin Mini-ITX SBC supports Intel® 14nm Atom™, Pentium® or Celeron® on-board SoC with DP++
Intel® Atom™ x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom™ x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom™ x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Two 204-pin 1867/1600MHz Dual-channel DDR3L DIMMs support up to 8GB Triple Independent Display
1 x eDP (up to 4096x2160 @ 60Hz)
2 x DP++ (up to 4096x2160 @ 60Hz)
1 x KB/MS (1x6 pin)
1 x M.2 (B key) (2242, colay SATA1, with USB signal)
1 x MicroSD card slot (optional)
2 x RS-232/422/485 (2x5 pin, P=2.0)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6G/s with 12/5V SATA power connector (No RAID)

tKINO-BW

Thin Mini-ITX SBC supports 14nm Intel® Pentium®/Celeron® on-board SoC
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
Two 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slots support up to 8 GB Display Output : Triple independent display
1 x HDMI/DP (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x VGA by CH7517 DP to VGA converter (up to 1920x1200@60Hz)
2 x Internal USB 2.0
4 x Internal RS-232
4 x USB 3.0
1 x KB/MS
2 x Internal RS-232/422/485
Expansion:
1 x Full-size PCIe Mini card slot
1 x microSD card slot
1 x PCIe x1

tKINO-ULT3

Thin Mini-ITX SBC supports Intel® Skylake-U Processor
6th generation Intel® mobile ULT on-board processor
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4M Cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3M Cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3M Cache, TDP=15W)
Intel® Celeron® 3955U (up to 2.0GHz, dual-core, 2M Cache, TDP=15W)
Intel® Celeron® 3855U (up to 1.6GHz, dual-core, 2M Cache, TDP=15W)
2 x SO-DIMM DDR4 2133MHz, system maximun up to 32GB 1 x HDMI 1.4 (up to 4096x2160@24Hz)
1 x HDMI/DP (up to 4096x2160@24Hz)
1 x LVDS/eDP (select by switch)
1 x eMMC 5.0 (optional, up to 32G)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA with 5V output (RAID 0/1 supported)
組込みCPUボード
IEI provides various sizes of embedded boards from Pico-ITX to 5.25” SBC and can meet different applications involving data acquisition, video processing, telecommunication, networking, motion control plus the associated field wiring termination, I/O circuit protection, etc.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

HYPER-AL

PICO-ITX SBC supports Intel® 14nm Apollo Lake on-board SoC with DDR3L, HDMI, LVDS, dual GbE, USB 3.0, SATA, M.2 and RoHS
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W) One 204-pin 1866/1600MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
(system max. 8GB)
1 x HDMI
1 x LVDS (2x10 pin, single channel, 24bit)
* External I/O Interface
2 x USB3.0 (on rear I/O)
* Internal I/O Interface
1 x RS-232 (1x9 pin, P=1.25)
1 x SATA 6Gb/s (w/ 5V SATA PWR)
2 x USB 2.0 (2 by pin header) (2x4 pin, P=2.0)
* Expansion
1 x M.2 A key 2230 (PCIe, USB)
1 x M.2 B key 2242 (USB, SATA)

HYPER-BT

Pico-ITX SBC supports Intel® 22nm Atom™/Celeron® on-board SoC
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM supports up to 8GB
(J1900, N2930, E3845, E3827, E3826) or 4GB (N2807, E3825, E3815)
Dual independent display
1 x VGA (up to 2560x1600@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
2 x Internal USB 2.0
1 x USB 2.0
1 x USB 3.0

HYPER-BW

Pico-ITX SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
Intel® Atom® x5-E8000 on-board SoC(up to 2.00 GHz, quad-core, 2M cache, TDP=5W)
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot
support up to 8 GB
Dual independent display
2 x Mini HDMI (up to 3840x2160@30Hz)
1 x Internal RS-232
2 x Internal USB 2.0
RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x M.2 2242 (B key)

HYPER-RK39

PICO-ITX SBC with Rockchip RK3399 Processor, 2GB LPDDR3, 16GB eMMC Flash, HDMI, eDP, GbE LAN, PCIe mini, USB 3.0, USB 2.0, COM, RoHS
Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz) 2GB LPDDR3-1866
16GB eMMC NAND FLASH
Dual independent display
1 x HDMI
1 x eDP
1 x Micro SD slot
1 x RS-232/422/485
1 x GbE RJ45 by RTL8211E
1 x USB 3.0 Type A
1 x USB 2.0 Type A
1 x USB 3.0 Type-C (for OS update)
1 x I²C
1 x Full-size PCIe Mini (reserved for WWAN)
1 x MIPI CSI interfaces
1 x 2 pin DC 12V in wafer connector
8 bit GPIO (4 in / 4 out)
* Pico-ITX SBC supports Rockchip RK3399
* HDMI and eDP dual display suppot
* OS: Android 7.1

NANO-AL

EPIC SBC supports 14nm Intel® Pentium®/Celeron®/Atom™ on-board SoC
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Atom™ x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom™ x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom™ x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
One 204-pin 1866/1600MHz Dual-channel DDR3L DIMMs support up to 8GB Triple Independent Displays:
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160 @ 30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096 x 2304 @60Hz) (colay with HDMI1)
2 x USB 3.0
2 x USB 2.0
2 x SATA 6G/s with 5V SATA power connector (No RAID)
2 x USB 2.0 (2x4 pin, P=2.0)
4 x RS-232 (2x5 pin, P=2.0)
2 x RS-232/422/485 (2x5 pin, P=2.0)
1 x KB/MS (1x6 pin)
Expansion
1 x Full/Half-size PCIe Mini slot (with SIM holder)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional)
1 x SIM holder (Optional)

NANO-BT-i1

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-BTW2

EPIC SBC supports 22nm Intel® Atom™/Celeron® on-board SoC
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1066/1333MHz single-channel unbuffered DDR3L SDRAM SO-DIMM
supports
up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual independent display
VGA (up to 2560x1600@60 Hz)
HDMI (up to 1920x1080@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
3 x Internal RS-232
2 x Internal USB 2.0
1 x Internal RS-422/485
1 x USB 2.0
1 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (support mSATA co-lay SATA port 2)
1 x PCI-104 slot (PCI signal)
1 x microSD slot (E38XX SKU only)

NANO-GLX

EPIC SBC supports AMD® Embedded G-Series SoC with VGA/HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s, mSATA, COM, HD Audio and RoHS
AMD® Embedded G-Series ""LX"" SoC
GX-218GL on-board Soc (1.8GHz, dual core, 1MB cache, TDP=15W)
GX-215GL on-board Soc (1.5GHz, dual core, 1MB cache, TDP=15W)
GX-210KL on-board Soc (1.0GHz, dual core, 1MB cache, TDP=4.5W)
One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM
slot supports up to 8 GB
Dual independent display
1 x VGA (up to 2048x1536@60Hz)
1 x HDMI (up to 3840x2160@60Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
2x Etherent with RJ45
2 x USB 2.0
2 x USB 3.0
1x HDMI
1x VGA
1x PCIe Mini
2x SATA
● EPIC SBC supports AMD® Embedded G-Series SoC
● Dual independent display support
● HD Audio supported by S/PDIF
● COM, USB 3.0, SATA 6Gb/s PCIe Mini, mSATA and audio supported
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery

NANO-KBN-i1

EPIC SBC supports AMD® Embedded G-Series SoC
AMD® Embedded G-Series ""Steppe Eagle"" SoC
GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W)
GX-412HC on-board Soc (1.2GHz, quad-core, 2MB cache, TDP=7W)
GX-212JC on-board Soc (1.2GHz, dual-core, 1MB cache, TDP=6W)
GX-411GA on-board Soc (1.0GHz, quad-core, 2MB cache, TDP=15W)
GX-209HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)
AMD® Embedded G-Series ""eKabini"" SoC
GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)
GX-210HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)
GX-420CA on-board Soc (2.0GHz, quad-core, 2MB cache, TDP=25W)
GX-217GA on-board Soc (1.65GHz, dual-core, 1MB cache, TDP=15W)
One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM
slot supports up to 8GB
Dual independent display
VGA (up to 2048x1536@60Hz)
HDMI (up to 3840x2160@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
5 x Internal RS-232
4 x Internal USB 2.0
2 x USB 2.0
2 x USB 3.0
1 x Internal RS-422/485
Expansion:
1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)

NANO-LX

EPIC SBC with AMD LX800 CPU
AMD Geode LX800 + AMD CS5536 One 200-pin 400/333MHz DDR SDRAM
SO-DIMM Supported (System max. 1GB)
VGA integrated in AMD LX800
24-bit single-channel TTL
18-bit single-channel LVDS
5 x Internal RS-232
4 x Internal USB 2.0
1 x LPT
1 x RS-232
4 x USB 2.0
Expansion:
1 x PC/104-Plus

NANO-QM770

EPIC SBC Supports Socket G2 for Intel® 22nm Mobile CPU,
Intel® QM77
Socket G2
1 x 204-pin 1600/1333MHz
DDR3 SO-DIMM
(system max. 8GB)
Dual display supported
1 x DVI-I
2 x HDMI
1 x 24-bit dual-channel LVDS
2 x RS-232
1 x RS-422/485
2 x USB 2.0
4 x USB 3.0
2 x RS-232
1 x RS-422/485
4 x USB 3.0
2 x USB 2.0
1 x 4-pin wafer for SMBus
1 x 4-pin wafer for I²C
1 x 5-pin header for infrared
1 x PS/2 KB/MS
1 x TPM connector (2x10 pin)

NANO-QM871-i1

EPIC SBC supports 4th Generation Intel® Mobile Processor
Intel® QM87
On board
1 x 204-pin 1600/1333MHz dualchannel
DDR3/DDR3L SO-DIMM
(system max. 8GB)
Dual display supported
1 x VGA
2 x HDMI
1 x 18/24-bit dual-channel LVDS
2 x RS-232
1 x RS-422/485
4 x USB 2.0
2 x USB 3.0
4 x USB 2.0
2 x USB 3.0
2 x RS-232
1 x RS-422/485
1 x PS/2 KB/MS

NANO-SE-i1

EPIC SBC supports AMD® Embedded G-Series SoC
AMD® Embedded G-Series ""Steppe Eagle"" SoC
GX-424CC on-board Soc (2.4GHz, quad-core, 2MB cache, TDP=25W)
GX-412HC on-board Soc (1.2GHz, quad-core, 2MB cache, TDP=7W)
GX-212JC on-board Soc (1.2GHz, dual-core, 1MB cache, TDP=6W)
GX-411GA on-board Soc (1.0GHz, quad-core, 2MB cache, TDP=15W)
GX-209HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)
AMD® Embedded G-Series ""eKabini"" SoC
GX-415GA on-board Soc (1.5GHz, quad-core, 2MB cache, TDP=15W)
GX-210HA on-board Soc (1.0GHz, dual-core, 1MB cache, TDP=9W)
GX-420CA on-board Soc (2.0GHz, quad-core, 2MB cache, TDP=25W)
GX-217GA on-board Soc (1.65GHz, dual-core, 1MB cache, TDP=15W)
One 204-pin 1600/1333 MHz single-channel DDR3 & DDR3L SDRAM unbuffered SODIMM
slot supports up to 8GB
Dual independent display
VGA (up to 2048x1536@60Hz)
HDMI (up to 3840x2160@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
5 x Internal RS-232
4 x Internal USB 2.0
2 x USB 2.0
2 x USB 3.0
1 x Internal RS-422/485
Expansion:
1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)

NANO-ULT3

EPIC SBC supports Intel® 14nm 6th Generarion Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max.
32 GB)
Triple independent display
2 x HDMI (up to 4096x2160@24Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096 x 2304@60Hz) (colay with HDMI1)
3 x Internal USB 2.0
4 x USB 3.0
Expansion:
1 x Full-size PCIe Mini card slot (with SIM holder & mSATA support)
1 x Half-size PCIe Mini card slot

NANO-ULT5

EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C
Intel® Celeron® processor 4305UE (2.20GHz, Dual Core, 2MB cache, TDP=15W)
Intel® Core™ i3-8145UE (2.10GHz, Dual Core, 4MB cache, TDP=15W)
Intel® Core™ i5-8365UE (1.6GHz, Quad Core, 6MB cache, TDP=15W)
Intel® Core™ i7-8665UE (1.9GHz, Quad Core, 8MB cache, TDP=15W)
Dual 260-pin 2400MHz Dual-channel DDR4 SO-DIMMs support up to 32GB Triple Independent Displays :
1 x HDMI up to 3840x2160@60Hz
1 x DP up to 3840x2160@60Hz
1 x Internal LVDS Up to 1920x1200@60Hz
1 x RS-232
4 x USB 3.1 Gen2
2 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x4 pin, P=2.0)
1 x TPM (2x10 pin, p=0.5)
2 x USB 2.0 (2x4 pin, P=2.0)
2 x SATA 6G/s with 5V SATA power connector
1 x SMBus 1x4 pin
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
1 x M.2 slot with 2280 M key
1 x SIM card
EPIC SBC supports Intel® 14nm 8th Generation Mobile Core™ i3/i5/i7 and Celeron® on-board processor (ULT) with HDMI, DP LVDS, mPCIE, M.2 A key M key, USB 3.1 Gen2, SATA 6Gb/s, COM, Audio and RoHS, -20°C ~ 60°C

PM-BT

PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
One 204-pin 1333/1066 MHz single-channel DDR3L SO-DIMM supports up to 8 GB
(J1900, N2930, E3845, E3827, E3826, E3825, E3815) or 4 GB (N2807)
Dual independent display
1 x VGA (up to 2560x1600@60 Hz)
1 x 18/24-bit single-channel LVDS (2x10 pin)
1 x Full-size PCIe Mini slot (supports mSATA)
1 x PC/104-Plus (ISA+PCI)
1 x SATA 3Gb/s with 5V SATA power connector
1 x 8-bit digital I/O (2x5 pin, P=2.0)
3 x USB 2.0 (1x4 pin, P=1.25)
2 x RS-232/422/485 (2x5, P=2.0)
1 x 10-pin header, P=2.0 (power LED, HDD LED, power button and reset button)
PC/104-Plus SBC with Intel® Atom™/Celeron® on-board SoC with DDR3L, VGA, LVDS, GbE, USB 2.0, SATA 3Gb/s, RS-232/422/485 and 5V DC input, RoHS
SoC

PM-LX

PCI-104 Module with on-board AMD Geode™ LX 800 CPU
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536 One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
1 x RS-422/485
2 x USB 2.0
1 x LPT
2 x RS-232
Expansion:
1 x PCI-104

PM-LX2

AMD Geode™ LX 800 CPU on-board PC/104 Module
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536 One 200-pin 400 MHz DDR SDRAM SO-DIMM supports up to 1 GB VGA integrated in AMD Geode™ LX 800
24-bit TTL integrated in AMD Geode™ LX 800
1 x LPT
2 x RS-232
1 x RS-422/485
2 x USB 2.0
Expansion:
1 x PC/104

WAFER-AL

3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC with DP++/VGA/LVDS/iDP support
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Atom™ E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom™ E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom™ E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W)
One 204-pin 1866/1600MHz Single-channel DDR3L DIMMs support up to 8GB Triple independent display
1 x DP++ (up to 4096x2160@60Hz)
1 x VGA (up to 1920x1200@60Hz)
1 x LVDS: 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP (colay with VGA, support by request)
2 x PCIe GbE LAN Ethernet Realtek RTL8111 Controller
1 x Front audio (2x5 pin)
2 x RS-232 (1x9 pin, P=1.25)
2 x RS-232/422/485 (1x9 pin, P=1.25)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID)
4 x USB 2.0 (2x4 pin, P=2.0)
2 x USB 3.0 (External)
1 x SMBus (1x4 pin, P=2.0)
1 x Full/Half-size PCIe Mini slot (supports mSATA, colay with SATA port 2)
1 x Full/Half-size PCIe Mini slot (supports SIM card holder)
1 x 8-bit digital I/O (2x5 pin)
3.5" SBC supports Intel® 14nm Generation Atom™ or Celeron® on-board SoC
with DP++/VGA/LVDS/iDP support, Dual PCIe GbE, USB 3.0, PCIe Mini with
mSATA support, SATA 6Gb/s, COM, Audio and RoHS

WAFER-BT

3.5” SBC with Intel® 22nm Atom™/Celeron® on-board SoC,
Intel® Atom™/Celeron® on-board SoC One 204-pin 1066/1333 MHz single-channel DDR3L SO-DIMM slot
supports up to 8 GB (J1900, N2930, E3845, E3827, E3826) or 4 GB (N2807, E3825, E3815)
Dual display supported
1 x VGA (Resolution: 2560x1600@60Hz)
1 x dual channel 24bit LVDS connector
(1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
2 x Internal RS-232
4 x Internal USB 2.0
3 x RS-232
1 x RS-422/485
5 x USB 2.0
1 x USB 3.0
3 x RS-232
1 x RS-422/485
1 x USB 3.0
5 x USB 2.0
1 x PS/2 KB/MS

WAFER-BT-E38001W2

3.5” SBC with Intel® 22nm Atom™ SoC
IIntel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
4 GB solder-down 1066/1333 MHz DDR3L memory (for E3845)
2 GB solder-down 1066/1333 MHz DDR3L memory (for E3825)
Dual independent dispaly
VGA (up to 2560x1600@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60Hz)
1 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
1 x USB 2.0
1 x USB 3.0
Expansion:
2 x PCIe Mini slot

WAFER-BW

3.5” SBC with Intel® 14nm Pentium®/Celeron® on-board SoC
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W)
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
2 x LAN: Realtek RTL8111GN
1 x 8-bit digital I/O (1x10 pin, P=1.25)
1 x Analog audio (2x5 pin)
2 x Internal RS-232/422/485(2 by pin header; 1x9 pin, P=1.25)
1 x eMMC4.51 (optional)
2 x SATA 6G/s with 5V SATA power connector (no RAID)
1 x KB/MS (1x6 pin)
3 x RS-232 (1x9 pin, P=1.25)
1 x mSATA
4 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (2 by pin header; 1x9 pin, P=1.25)
Expansion:
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA signal from SATA2)

WAFER-KBN-i1

3.5” SBC supports AMD® Embedded G-Series SoC
AMD® Embedded G-Series SoC
GX-415GA on-board SoC (1.5GHz, quad-core, 2MB cache, TDP=15W)
GX-210HA on-board SoC (1.0GHz, dual-core, 1MB cache, TDP=9W)
GX-420CA on-board SoC (2.0GHz, quad-core, 2MB cache, TDP=25W)
GX-217GA on-board SoC (1.65GHz, dual-core, 1MB cache, TDP=15W)
One 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM SO-DIMM slot
supports up to 8GB
VGA (up to 2048x1536@60Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600@60 Hz)
2 x Internal RS-232
4 x Internal USB 2.0
1 x RS-232
2 x USB 3.0
1 x RS-422/485
Expansion:
1 x Full-size PCIe Mini card slot (supports mSATA co-lay SATA port 2)

WAFER-LX

3.5” SBC with on-board AMD Geode™ LX 800 Processor
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536 One 200-pin 400/333MHz DDR SDRAM SODIMM slot
support up to 1GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
1 x Internal RS-232
2 x Internal USB 2.0
1 x LPT
1 x RS-232
2 x USB 2.0
1 x RS-422/485
Expansion:
1 x PC/104

WAFER-LX2

3.5” SBC with AMD Geode™ LX 800 Processor
AMD Geode™ LX800 (500 MHz) processor+AMD CS5536 One 200-pin 400/333MHz DDR SDRAM SODIMM
slot support up to 1GB
VGA integrated in AMD Geode™ LX 800
24-bit TTL
18-bit single-channel LVDS
6 x Internal RS-232
1 x RS-232
4 x USB 2.0
1 x Internal RS-232/422/485
Expansion:
1 x PC/104 (ISA Bus)

WAFER-ULT-i1

3.5” SBC supports Intel® 22nm 4th/ 14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT), VGA/LVDS/iDP, Dual GbE, PCIe Mini, USB 3.0, SATA 6Gb/s Audio, iRIS-1010 and RoHS
5th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)
4th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)
Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots support up to 16 GB Triple independent display
VGA (up to 2560x1600@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
2 x USB 2.0
2 x RS-232
1 x RS-422/485
1 x KB/MS

WAFER-ULT2-i1

3.5” SBC supports Intel® 22nm 4th/14nm 5th Generation Mobile Core™ i7/i5/i3 and Celeron® on-board Processor (ULT)
5th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-5650U (2.2GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-5350U (1.8GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-5010U (2.1GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3765U (1.9GHz, dual-core, 2MB cache, TDP=15W)
4th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-4650U (1.7GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-4300U (1.9GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-4010U (1.7GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 2980U (1.6GHz, dual-core, 2MB cache, TDP=15W)
Two 204-pin 1600/1333 MHz dual-channel DDR3L SDRAM SO-DIMM slots
support up to 16 GB
Triple independent display
VGA (up to 2560x1600@60 Hz)
18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160@60 Hz)
3 x Internal RS-232
2 x USB 3.0
3 x RS-232
2 x USB 2.0
Expansion:
1 x Full-size PCIe Mini card slot (mSATA support)

WAFER-ULT3

3.5” SBC supports Intel® 6th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support
6th generation Intel® mobile ULT processor
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.

WAFER-ULT4

3.5” SBC supports Intel® 7th Generation ULT Processor with DDR4 SO-DIMM/On-board Memory Support
7th generation Intel® mobile ULT processor
Intel® Core™ i7-7600U (up to 3.9GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-7300U (up to 3.5GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-7100U (up to 2.4GHz, dual-core, 3MB cache, TDP=15W)
1 x 260-pin 2133MHz DDR4 SDRAM SO-DIMM (channel 1, supports up to 16GB)
On-board 4GB/8GB DDR4 memory (channel 2, optional support by request)
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x HDMI (up to 4096x2160@30Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (co-layout with VGA)
1 x SATA 6Gb/s with 5V SATA power connector
2 x USB 2.0 (2x4 pin, P=2.0)
2 x RS-232/422/485 (1x9 pin, P=1.25)
Expansion
1 x Full-size PCIe Mini slot (w/ SATA signal, supports mSATA)
1 x Full-size PCIe Mini slot (w/ SIM card slot support)
*3855U belongs to Skylake ULT Base series which supports PCIe Gen 2 signal only.

WAFER-ULT5

3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
Intel® Core™ i7-8665UE 1.9 GHz (up to 4.4GHz, Quad-core, 8MB cache, TDP=15W)
Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
Intel® Core™ i3-8145UE 2.1 GHz (up to 3.9GHz,Dual-core, 4MB cache, TDP=15W)
Intel® Celeron® processor 4305UE (up to 2.0GHz, Dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 4205U (up to 1.8GHz, Dual-core, 2MB cache, TDP=15W)
Single 260-pin 2400MHz DDR4 SO-DIMMs support up to 32GB Triple Independent Displays
2 x HDMI up to 40960x2160@30Hz
1 x Internal LVDS Up to 1920x1200@60Hz
4 x USB 3.1 Gen2
3 x PCIe LAN Port
1 x RS-232 (1x9 pin, P=1.25)
1 x RS-422/485 (1x9 pin, P=1.25)
1 x USB 2.0 (2x4 pin, P=2.0)
1 x SATA 6G/s with 5V SATA power connector
1 x I²C (1x4 pin)
1 x Analog audio (2x5 pin)
1 x M.2 slot with 2230 A key
1 x Full-size PCIe Mini slot
3.5” SBC supports Intel® 8th Generation Whiskey Lake processor with DDR4 SO-DIMM, Triple display with dual HDMI 1.4, LVDS, Triple GbE, USB 3.1 Gen2, M.2 A key, mPCIe with mSATA support, SATA 6Gb/s, COM and RoHS
ETX / COM EXPRESS / Q7
IEI provides ETX, COM Express and Q7 single board computers to fulfill multiple application solution, such as automation controllers, mobile devices and measurement systems.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

ICE-BDE-T7

COM Express Basic Size Type 7 Module Support, Intel® Broadwell-DE Processor D-1500
Intel® Xeon® Processor D-1548 (12MB Cache, 2.00 GHz)
Intel® Xeon® Processor D-1518 (6MB Cache, 2.20 GHz)
Intel® Xeon® Processor D-1508 (3MB Cache, 2.20 GHz)
Two 240-pin 2133/1867 MHz dual-channel DDR4 SDRAM unbuffered DIMM supported
(system max. 32GB)
Support ECC
2 x RS-232 (2-wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board
2 x SATA 6Gb/s signal to base board
● COM Express basic size Type 7 module
● Intel® Xeon® D and Pentium® D SoC (up to 16 cores)
● Up to 32GB dual channel DDR4 at 1866/2133/2400MHz ECC (dependent on SoC SKU)
● Two 10G Ethernet and NC-SI support
● Up to 32 PCIe lanes (24 x Gen3, 8 x Gen2)
● GbE, two SATA 6Gb/s, four USB 3.0/2.0

ICE-BT-T10

COM Express Rev 2.1 Mini Size Type 10 Module, Intel® 4th Generation Atom™ Processor,
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
2GB soldered down 1066/1333 MHz DDR3L memory (up to 8GB) 1 x VGA (2560x1600) (via reserved pin)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
1 x eDP
4 x Internal USB 2.0
1 x Internal USB 3.0
Expansion:
3 x PCIe x1 signal to baseboard

ICE-BT-T6

COM Express Rev 2.1 Basic Type 6 Module, Intel® 4th Generation Atom™ Processor
Intel® Atom™ E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W)
Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W)
Intel® Celeron® J1900 on-board SoC (2GHz, quad-core, 2MB cache, TDP=10W)
Intel® Celeron® N2930 on-board SoC (1.83GHz, quad-core, 2MB cache, TDP=7.5W)
Intel® Celeron® N2807 on-board SoC (1.58GHz, dual-core, 2MB cache, TDP=4.3W)
Two 204-pin 1066/1333 MHz dual-channel DDR3L SDRAM unbuffered DIMMs support up to 8GB 1 x VGA (2560x1600)
1 x DDI 1 (DP/HDMI max. resolution 2560x1600/1920x1080)
1 x LVDS: 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
7 x USB 2.0
4 x USB 3.0
Expansion:
5 x PCIe x1 signal to baseboard (2 from SoC, 3 from PLX PEX8605 switch IC)

ICE-DB-T10

Baseboard for COM Express Type 10 Module COM.0 Rev. 2.1, suppport PICMG EAPI R1.0
microATX form factor baseboard (244mm x 244mm)
1 x eDP
1 x VGA
1 x DisplayPort pin-header
4 x PCIe x1 1 x LPC
2 x SATA port 1 x SD card socket
2 x RS-232 from COM Express (only TX, RX, GND

ICE-DB-T6

Baseboard for COM Express Type 6 Module
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x 18/24-bit single/dual-channel LVDS
1 x VGA
3 x DisplayPort (2 x real connectors, 1 x pin header)
1 x VGA 4 x USB 3.0
1 x RJ-45 3 x DisplayPort
1 x Audio jack (Line-in, Line-out, Mic)
Expansions:
1 x PCIe x16
6 x PCIe x1
2 x PCIe Mini (with USB)
1 x LPC

ICE-DB-T6R

Baseboard for COM Express Type 6 Module COM.0 Rev. 2.1
Supports COM Express Compact/Mini module using connector pin out Type 6
1 x VGA
1 x HDMI (HDMI signal only)
1 x DisplayPort pin-header
1 x DisplayPort connectors
1 x LVDS 18/24-bit single or dual-channel (with PWM back light controller)
4 x SATA port
1 x PS2 KB/MS
2 x RS-232 from SIO
2 x RS-232 from COM Express (only TX, RX, GND)
1 x SD card socket
2 x USB 3.0 (standared USB 3.0 pin-header)
Expansions:
1 x PCIe x16
5 x PCIe x1
1 x LPC
2 x PCIe Mini (MINIPCIE1 colay with m-sata with SATA_4)

ICE-DB-T7-i2

Base Board for COM Express Type 7 Module COM.0 Rev. 2.1
1 x VGA from iRIS-2400 1 x PCIe x16 (x16 Gen 3 signal)
1 x PCIe x8 (x8 Gen 3 signal)
1 x PCIe x4 for 10GbE PHY card
1 x PCIe x4 (x4 Gen 2 signal)
1 x PCIe x4 (x1 Gen 2) (x4 signal option)
2 x PCIe x1 (x1 Gen 2)
2 x RS-232 from COM Express (only TX, RX, GND)
2 x RS-232 from SIO
2 x SATA port
4 x USB 3.0
1 x VGA
1 x RJ-45 connector
● ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7
● Support 1 x PCIe x8 for 10GbE PHY card
● Support 32 PCIe lanes
● Support PICMG EAPI R1.0

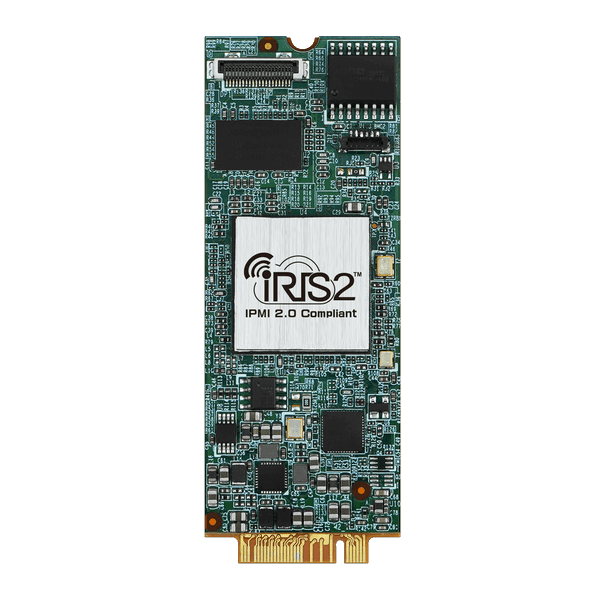

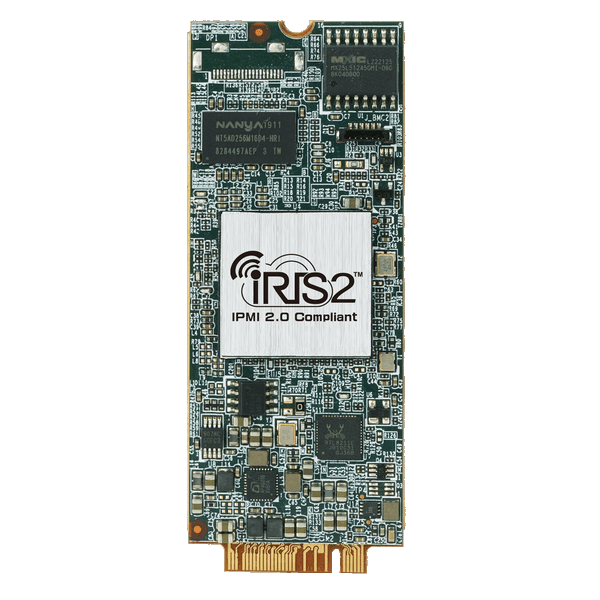

● Support IPMI 2.0 via iRIS-2400 module

ICE-ULT3

COM Express Compact size Type 6 Module, 6th Generation Intel® Core™ ULT Processor
6th generation Intel® mobile ULT on-board SoC
Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W)
Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W)
Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W)
Intel® Celeron® processor 3955U (up to 2.0GHz, dual-core, 2MB cache, TDP=15W)
Intel® Celeron® processor 3855U (up to 1.6GHz, dual-core, 2MB cache, TDP=15W)
Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs
support up to 32GB
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
1 x DDI: DisplayPort/HDMI/DVI (up to 3840x2160@60Hz)
(Option with 1 x CRT via CH7517) (up to 1920x1200@60Hz)
1 x DDI: Embedded DP (up to 3840x2160@60Hz)
(Option with 1 x Dual Channel LVDS 18/24 bit via CH7511B) (up to 1920x1200@60Hz)
2 x RS-232 (2-Wire) to base board
4 x USB 2.0 to base board
4 x USB 3.0 to base board (with 4 x USB 2.0)
2 x SATA 6GB/s signal to base board
Expansion
1 x PCIe x1 signal to base board (Via PCIe x16 channel)
8 x PCIe x1 signal to base board

iQ7-BTW2/iQ7-BT

Qseven Rev. 2.0 Module Supports 4th generation Intel® Atom™ Processor
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz
DDR3L memory (up to 4 GB)
Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0
1 x USB 3.0
Expansion:
3 x PCIe x1 signal to baseboard

iQ7-DB-MATX

Baseboard for Qseven Rev. 2.0 Module
Intel® Atom™ E3845 on-board SoC (1.91GHz, quad-core, 2MB cache, TDP=10W)
Intel® Atom™ E3825 on-board SoC (1.33GHz, dual-core, 1MB cache, TDP=6W)
2 GB soldered-down 1066/1333 MHz DDR3L memory (up to 4 GB) Dual independent display
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz)
1 x DDI (DP/HDMI, max. resolution 2560x1600/1920x1080)
6 x USB 2.0 signal to baseboard
1 x USB 3.0 signal to baseboard
Expansion:
3 x PCIe x1 signal to baseboard
アクセラレーター
VPUアクセラレーター
Intel® Vision Accelerator Design with Intel® Movidius™ VPU

Mustang-M2AE-MX1

Computing Accelerator Card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU,M.2 AE key interface, 2230, RoHS

Mustang-M2BM-MX2

Deep learning inference accelerating M.2 BM key card with 2 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22 mm x 80 mm, RoHS

Mustang-MPCIE-MX2

Computing accelerator card with two Intel® Movidius™ Myriad™ X VPU, providing a flexible AI inference solution

Mustang-V100-MX4

Computing Accelerator Card with 4 x Intel® Movidius™ Myriad™ X MA2485 VPU, PCIe Gen 2 x 2 interface, RoHS

Mustang-V100-MX8

Computing Accelerator Card with 8 x Movidius Myriad X MA2485 VPU, PCIe gen2 x4 interface, RoHS
FPGAアクセラレーター
Intel® Vision Accelerator Design with Intel® Arria® 10 FPGA

Mustang-F100

PCIe FPGA Highest Performance Accelerator Card with Arria 10 1150GX support DDR4 2400Hz 8GB, PCIe Gen3 x8 interface
CPUアクセラレーター
The Mustang-200 is an affordable and scalable advanced computing accelerator for speeding up computations, calculations and applications. Equipped with 2 Intel® Core™ i5/i7 processors, 32GB (4 x 8GB) RAM, and 1TB (2 x 512GB) Intel NVMe SSDs, this PCIe card can be used with your existing system, enabling high-performance computing without costing a fortune. You can install multiple Mustang-200 to further boost your computing capabilities, and assign tasks to any of these units as needed.

Mustang-200

Computing Accelerator Card
PEMUXシリーズ向けバックプレーン
The PEMUX allows users to deliver with maximum 56 lane of PCI Express 3.0 to PEMUX backplane while taking advantage of the speed and increased bandwidth of PCI Express

PEMUX-DB-10S1

1-Slot PEMUX backplane, 4 PCIe Gen 3.0 x8 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-DB-8S1

1-Slot PEMUX backplane, 2 PCIe Gen 3.0 x16 w/ x16 slot,6 PCIe Gen3.0 x4 w/ x4 slos, and RoHS

PEMUX-XEW1

Full-size PEMUX CPU Card supports LGA2066 Intel® Xeon® W CPU per, Intel® C422, DDR4 ECC RDIMM, IPMI VGA output, Aquantia 10GbE, USB 3.0, SATA 6Gb/s, M.2 and RoHS
拡張カード
ディスプレイ変換アダプター
iDP (IEI Internal Display Port) connector is provided on the IEI products. Through the IEI iDP converter cards, the iDP connector can support different display specification, such as VGA, HDMI, DVI-D and LVDS.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

DP-DP

DisplayPort Expansion Board (DP-DP-R10 for IEI iDP Connector)
1 x IEI iDP connector

DP-DVI

DisplayPort to DVI Converter Board (for IEI iDP Connector)
1 x IEI iDP connector

DP-HDMI

DisplayPort to HDMI 1.3a Converter Board (for IEI iDP DP-HDMI-R10 connector)
IEI iDP connector

DP-LVDS

DisplayPort to 24-bit Dual-channel LVDS Converter Board DP-LVDS-R10 (for IEI iDP Connector)
1 x IEI iDP connector

DP-VGA

DisplayPort to VGA Converter Board (for IEI iDP Connector)
1 x IEI iDP connector
産業用通信カード
IEI provides industrial communication cards for different expasion and application through ISA, PCI or PCI Express.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

GPOE-2P

PCI Express Power over Ethernet card, 2-port 1000 Base(T), 802.3at compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power

GPOE-4P

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile, RoHS
1. PCI Express® x1 compliant
2. Support for total 90 watts under full load
3. Support link aggregation/jumbo frames (9 Kbyte)
4. Supports 12V~24V DC input power
IEI GPOE-6P add-on card
icon-new

GPOE-6P

PCI Express Power over Ethernet card, 6-port 1000 Base(T), 802.3at / bt compliant, RoHS
1. Provide 6 x10/100/1000Base-T(X) PoE (P.S.E.) ports
2. Total 180 Watts power budget with maximum 90 Watts per port
3. PoE power sourced from 12 ~ 24VDC of ATX power
4. Each LAN port supports both PoE and Non-PoE connections (Auto Detect & Classification)
5. Supports SW/RDK (IEI GPOE Management Software Tools)
6. Compatible with x4, x8 and x16 PCIe slots
7. IEEE 802.3at/bt PoE compliant

IPCIE-4POE

PCI Express Power over ethernet card
PCI Express Power over ethernet card
無線LANモジュール
PCIe Mini card *Solid design with external antenna diversity *Low power consumption and high performance
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

EMB-WIFI-KIT

PCIe Mini card wireless LAN module kit
● Half size PCIe Mini card form factor
● High speed wireless connection
● Low power consumption and high performance
● Fully qualified Bluetooth 4.0
● Solid design with external antenna diversity

WMPCIE-V02

Wireless LAN Module
PCIe Mini card
Wi-Fi:
802.11a/g/n/ac: OFDM
802.11b: CCK, DQPSK, BPSK
BT:
Header GFSK
Payload 2M: 4-DQPSK
Payload 3M: 8DPSK
ミニPCIeモジュール
PCI Express Mini Card *IO Interface converter *RoHs
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

MPCIE-3G

PCI Express Mini 3G Adapter Card, RoHS
PCI Express Mini card
Antenna 50Ohms. Main GSM/UMTS antenna
USB 2.0 High Speed (480Mbit/s) device
interface, Full Speed (12Mbit/s)

MPCIE-CAN

USB to dual isolated CANbus 2.0B Module
Mini PCIe interface (USB interface)
2 x CANBus 2.0B port module

MPCIE-DLAN

PCI Express Mini Dual Intel® GbE LAN Module, Full Size
PCI Express Mini GbE LAN Module

MPCIE-LAN

PCI Express Mini GbE LAN Module, Full Size
PCI Express mini card

MPCIE-UART-KIT01

PCI Express Mini Card Supports Quad-port RS-232/422/485, Full Size
PCI Express Mini Card

MPCIE-UART-KIT02

PCI Express Mini Card Supports Dual-port RS-232/422/485, 16-bit GPIO, Full Size
PCI Express Mini Card

MPCIE-USB3

PCIe Mini U MPCIE-USB3 SB 3.0 Adapter Card
PCI Express Mini card
USB 3.0 Controller
Asmedia ASM1042
TPMモジュール
Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
CPU Socket / Chipset
Memory
Display
I/O / Slot
Features

TPM-IN01

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration

TPM-IN02

Hardware-based security solution for data protection and reliable authentication via TPM that stores key, passwords and digital certificates.
1. TPM management
2. File & Folder En/De-cryption
3. Personal secure drive
4. Secure Email
5. Key transferring
6. Security policy configuration
icon-new

TPM-IN03

SPI TPM 2.0 module, software management tool, firmware v7.85
Infineon SPI TPM 2.0 with SLB9670VQ2.0 FW7.85
SPI TPM 2.0 module, software management tool, firmware v7.85
