IEI Launches BIS-W19C-ULT4 Medical Panel PC for Bedside Infotainment Application
IEI Product News

BIS-W19C-ULT4-medical-panel-pc

Features Applications I/O Interface
Dimensions Specifications Ordering Information
Options IQ Mounting Options Packing List



Features

medical-panel-pc-feature-icon

18.5" 16:9 LED panel (1366 x 768 / 1920 x 1080)
7th generation Intel® Core™ i5-7300U and Celeron® 3865U CPU
Projected capacitive touchscreen supports multi-touch
IP65 compliant front bezel
Anti-bacteria cover

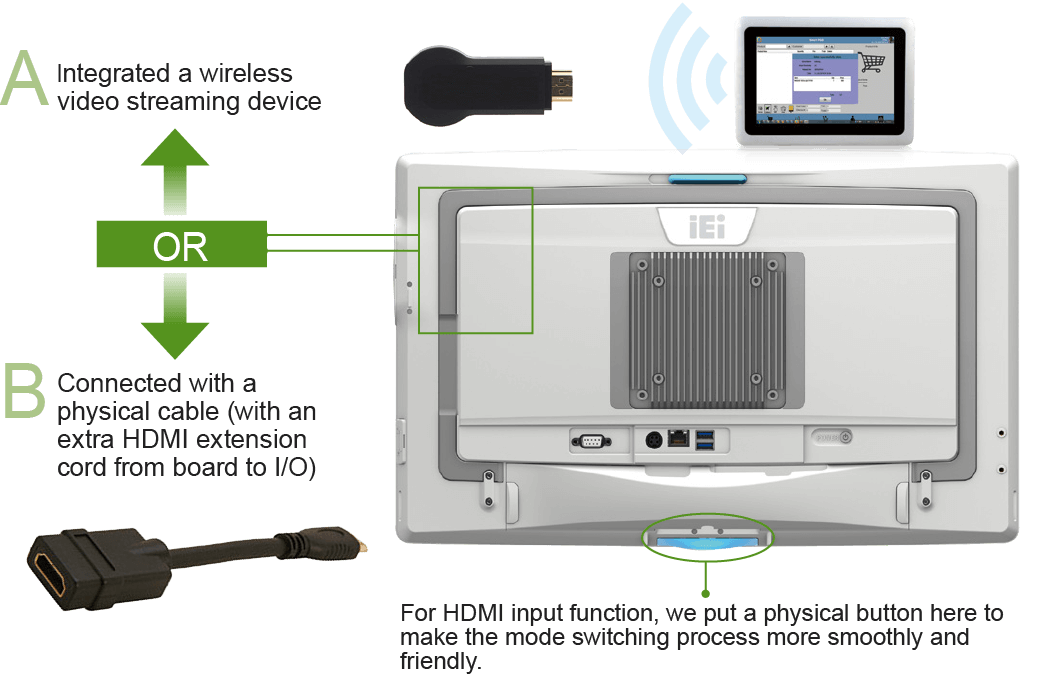

It’s a medical grade PC as well as a monitor!
medical panel pc as well as a monitor

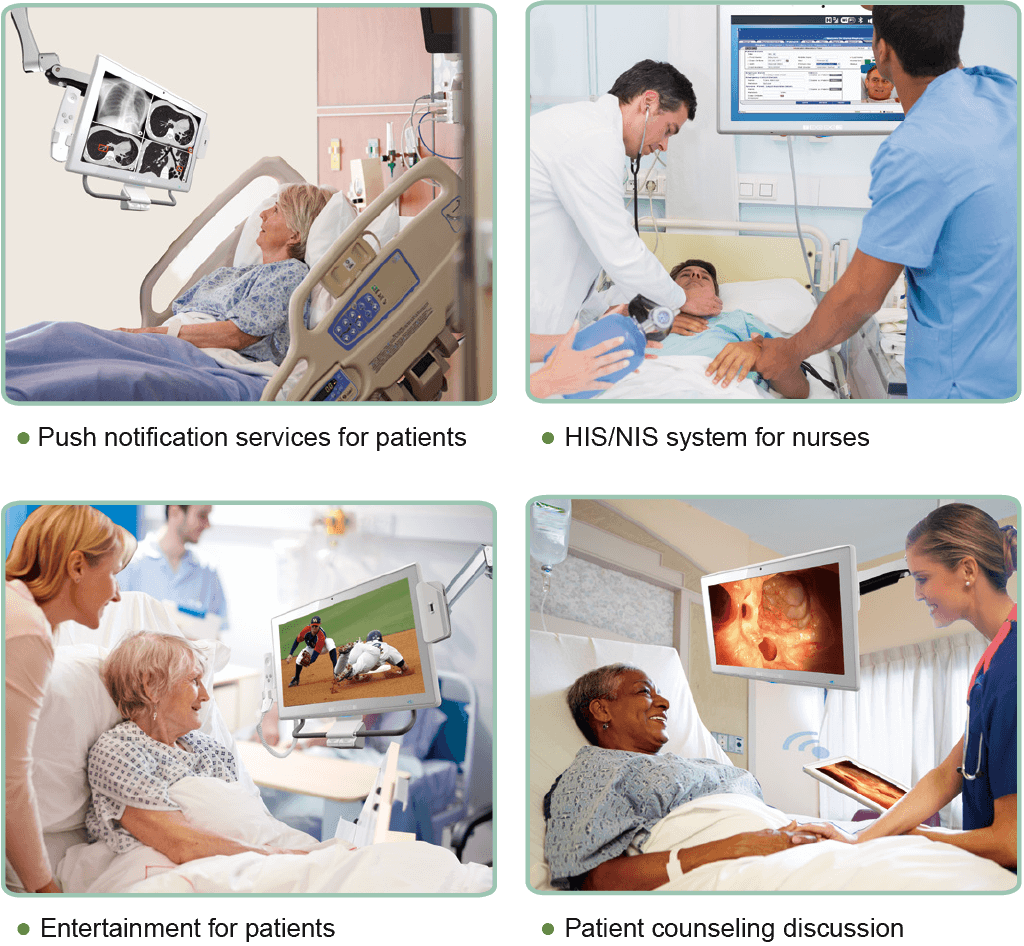

Applications
medical-panel-pc-applications

I/O Interface
medical-panel-pc-interface

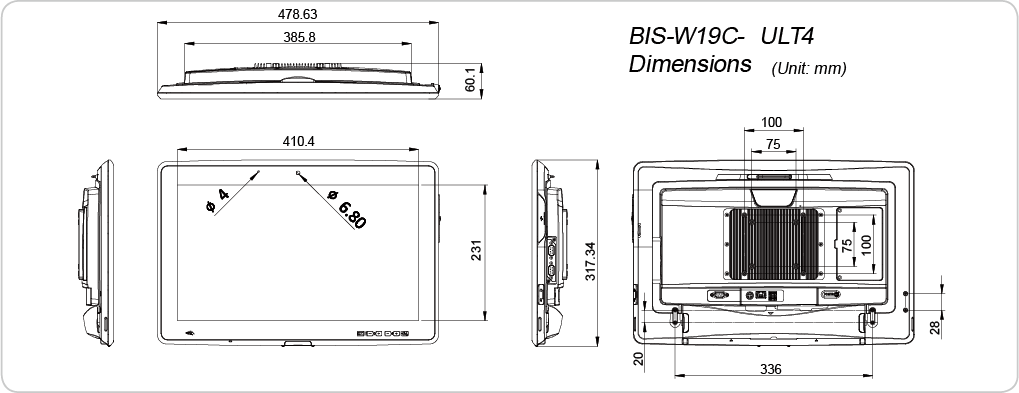

Dimensions
BIS-W19C-ULT4-panel-pc-Dimensions

Specifications
Model BIS-W19C-ULT4
LCD Specifications LCD Display 18.5” (16:9)
Max Resolution 1366 (W) x 768 (H) / 1920 (W) x 1080 (H)
Brightness (cd/m²) 250 / 350
Contrast Ratio 1000:1
LCD Color 16.7M colors (RGB 6-bit) / 16.7M colors (RGB true 8-bit)
Pixel Pitch (mm) 0.3 (H) x 0.3 (V) / 0.213 (H) x 0.213 (V)
Viewing Angle (H-V) 170°(H) / 160°(V), 178°(H) / 178°(V)
Backlight MTBF (hrs) 30000 (LED backlight) / 50000 (LED backlight)
Touch Touchscreen Projected capacitive type with USB interface
Surface Hardness 6H
System CPU Support Intel® Kabylake ULT platform Core™ i5-7300U and Celeron® 3865U
RAM Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB)
I/O Port Rear:
1 x 1.5kV isolation COM port
1 x 12~28V DC Jack
1 x GbE LAN port
2 x USB 3.0 port

Bottom:
1 x RJ-11 for barcode scanner (1D/2D)
1 x GbE LAN port
2 x USB 3.0 port
1 x HDMI output

Side:
1 x HDMI input
2 x USB 2.0 port
1 x Audio out
1 x Mic in
Storage 1 x 2.5” SATA 6Gb/s HDD bay
1 x mSATA (E-Window)
Audio 2 x 2W speaker
Webcam & Microphone 2-megapixel CMOS front-facing camera with auto-focus and digital microphone
LED Indicator RFID indicator LED
Other Features Monitor Mode Yes
Function Key 1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning

Combinations:
1 x Auto-dimming on/off
Light Sensor Ambient light sensor for panel brightness adjustment
Cooling Method Fan-less
Connectivity Wi-Fi and Bluetooth IEEE 802.11 a/b/g/n/ac 2T2R module with Bluetooth V4.1 (M.2 2230 A-E key module)
Physical Construction Material ABS+PC plastic with anti-bacterial material
Mounting Wall, Stand and Arm VESA 100/75
Net Weight 6.5 kg
Dimensions (WxHxD) (mm) 478.6 x 317.3 x 60.1
Environment Operating Temperature 0°C~40°C
Storage Temperature -20°C~60°C
Humidity 10% to 95% (non-condensing)
Vibration 1G
Shock Operating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration)
IP Level IP65 compliant front panel
Power Power Input 12V~28V DC input
Power Adapter 120W medical power adapter: Input: 100V~240V AC, Output: 19V DC


Ordering Information
Part No. Description
HSC-13M3-O-R10 USB 3.0 monochrome camera & opto-isolated I/O, 1/2"
on-semi CMOS, global shutter, 1280x1024 pixels, without lens, RoHS
HSC-13M4-E-R10 USB 3.0 monochrome camera & opto-isolated I/O, 1/1.8”
E2V CMOS, global shutter, 1280x1024 pixels, without lens, RoHS
32001-019800-100-RS USB 3.0 cable, 1800mm, USB 3.0 A type male and micro USB 3.0 B type male+screw, RoHS
32033-001000-100-RS IO connecting cable with an 8-pin male connector (HR25-7TP-8P), flying leads in 3 meter lengths, 28AWG, RoHS (custom lengths upon request)
7I003-M1620MPW2-RS Camera lens, 2/3", focal length 16mm, F2.0 C-Mount, RoHS
7I003-M3514MP-RS Camera lens, 2/3", focal length 35mm, F1.4 C-Mount, RoHS
7I003-SV1214V-RS Camera lens, 1/2", focal length 12mm, F1.4 C-Mount, RoHS
7I003-SV1614V-RS Camera lens, 2/3", focal length 16mm, F1.4 C-Mount, RoHS
7I003-SV2514V-RS Camera lens, 1", focal length 25mm, F1.4 C-Mount, RoHS

Options
Number Description
MEDP-HS-R10 USB interface VoIP phone and its holder, white
MEDP-CR-02-R10 Magnetic card reader/Smart card reader/Fingerprint sensor, white
MEDP-HD-R10 Metal handle covered with soft rubber
MEDP-HD-BR-R11 Metal handle covered with soft rubber, with barcode reader and reading light, White
MEDP-MF-RFID-04-R10 Mifare RFID reader, 13.56MHz, with LED indicator and 100mm antenna, IEI assembly only
MEDP-TPM-04-R10 Trusted platform module kit with 300mm cable, IEI assembly only
MEDP-EZS-R10 VESA 100 x 100 mm panel PC stand with a cable management hole, white
BIS-W19C-ULT4-W10E64-V-R10 OS Image with Windows Embedded Standard 10 E Value 64-bit for BIS-W19C, with DVD-ROM, RoHS
POCP-CC04-R10 BIS-19C-ULT4 cable cover, white, plastic, R10

IQ Mounting Options
Item Part No.
Wall Mount Kit AFLWK-19B
Arm ARM-31-RS
Stand STAND-300SW-RS/STAND-A21-R10

Packing List
Item Qty Description
Utility CD 1 Drivers and User Manual
Power Adapter 1 120W medical power adapter: Input:90V~264V AC, Output: 19 V DC
Power Cord 1 European power cords, 183 CM, C13
