IEI Launches IVS-110-AL In-vehicle Computer for Public Transportation Video Surveillance
IEI Product News

IVS-110-AL-in-vehicle-computer

Features Fleet Management Tracking System Specifications
Fully Integrated I/O Dimensions Ordering Information
Options E-Window Packing List



Features

IVS-110-AL-feature-icons

Intel® Apollo Lake processor
Dual SIM slot
Optional 3G/Wi-Fi
16 x DI/DO
1 x HDMI (lockable), 1 x VGA
Built-in GPS function
E-Mark certification
Built-in OBD-II/J1939
IP4X protection
Top

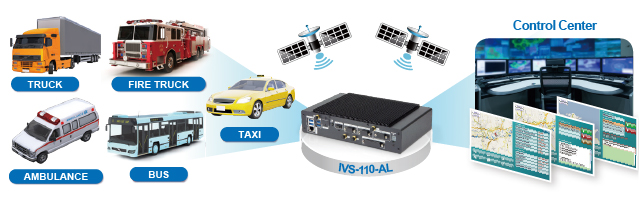

Fleet Management Tracking System

IVS-110-AL-fleet-management-tracking-system

Top

Specifications
Model Name IVS-110-AL
Chassis Color Black
Dimensions (WxHxD) (mm) 261 x 170 x 60
System Fan Fanless
Chassis Construction Extruded aluminum alloy
Motherboard CPU Intel® Atom™ x7-E3950 Processor
(quad-core 2.0GHz, 12W TDP)
Chipset SoC
System Memory 1 x 204-pin DDR3L SO-DIMM. 4GB pre-installed
Storage Hard Drive 1 x 2.5'' SATA 6Gb/s HDD/SSD drive bay
mSATA / eMMC 1 x mSATA (PCIe Mini Slot)
1 x eMMC 5.0 (reserved)
Communication WLAN PCIe Mini Wi-Fi 802.11 a/b/g/n/ac (optional)
Bluetooth BT 4.0/3.0+HS (combo with WLAN optional module)
WWAN PCIe Mini WCDMA/HSDPA/HSUPA (optional)
GPS On board GPS
I/O Interfaces USB 3.0 4
Ethernet 1 x RJ-45 PCIe GbE by Intel® I211
COM Port 1 x RS-232/422/485 (BIOS configuration)
Digital I/O 1 x 16-bit digital I/O (8-bit input / 8-bit output)
OBD-II/J1939 1 x DB9 OBD-II/J1939
Display 1 x VGA, 1 x HDMI
Resolution VGA : Up to 1920 x 1200 @ 60 Hz
HDMI : Up to 3840 x 2160 @ 30 Hz
Audio 1 x Line out
SIM 2 x on board SIM card slot
Expansions PCIe Mini 1 x Full/Half-size PCIe Mini slot (reserved for WWAN)
1 x Full/Half-size PCIe Mini slot (reserved for mSATA or E-window)
1 x Half-size PCIe Mini slot (reserved for WLAN)
Power Power Input Cigarette lighter power cable: 9 V~ 36 V DC
Consumption 12V @ 5A
(Intel® Atom™ x7-E3950 with 8GB DDR3 memory)
Reliability Mounting Wall mount / VESA 100
Operating Temperature -30°C ~ +70°C with air flow
Storage Temperature -40°C ~ 80°C
Humidity 10% ~ 95%, non-condensing
Operating Shock 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
Operating Vibration 5 Grms, 5-500 Hz, 3 Axes(with SSD, according to IEC60068-2-64) MIL-STD-810F 514.5C-2 (SSD)
Weight (Net/Gross) 2.4 kg / 3.8 kg
Safety/EMC CE/FCC/E-Mark/IP rating : IP 4X compliant
OS Supported OS Microsoft® Windows 10 IoT Enterprise
Top

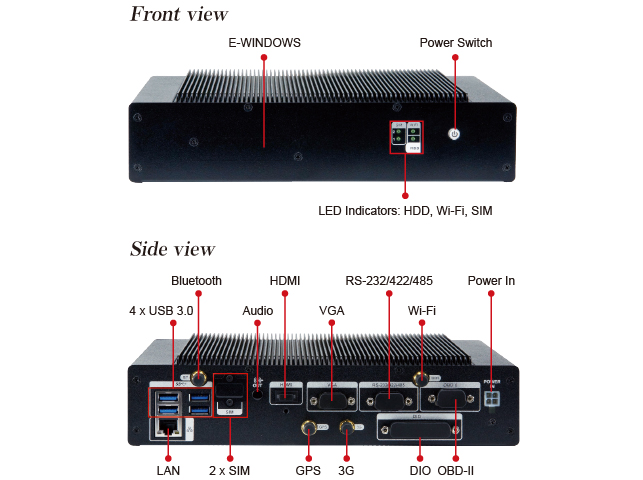

Fully Integrated I/O

IVS-110-AL-vehicle-computer-IO
Top

Dimensions (Unit: mm)

IVS-110-AL-Dimension-vehicle-computer
Top

Ordering Information
Part No. Description
IVS-110-AL-E3/4G-R10 Fanless embedded system with Intel® Atom™ x7-E3950 (12W) Processor with 4GB DDR3L pre-installed memory, on board GPS, HDMI, VGA, one GbE LAN, one 2.5” SATA HDD bay, two SIM slots, RoHs
Top

Options
Item Part No. Description
GPS/LTE antenna 32506-000400-100-RS Integration Antenna, Magnetic Antenna Base+GPS/4G LTE ANTENNA, RG 174, 5000MM, AU-4S-LTE, GPS Gain:27dB, LTE, Gain:0dBi, 50Ω, SANAV, 1575.42MHz/704-960MHz/1710-2766MHz, VSWR ≤ 2.0, SMA PLUG, REVERSE SMA PLUG, RoHS
Power adapter IVIPOWER-4PIN-R10 Power adapter with 4-pin transfer cable, RoHS
OBD-II cable 32025-003400-100-RS Round cable, OBD-II cable, 2000 mm, 24 AWG, (A) OBD-II 16P male, (B) D-sub 9P female, one piece package with label, RoHS
Cigarette lighter power cable 32002-004000-100-RS Round cable, power cable, car cigarette lighter cable, 2000 mm, 18 AWG, (A) cigarette lighter (5 A 250 V)+ ψ3 green LED, (B) MOLEX 5557-0400 P=4.2, SHANGHAI YING YU, RoHS
Wireless kit IVS-WIFI-KIT02-R10 1T1R Wi-Fi module kit for embedded system, IEEE802.11a/b/g/n/ac Wi-Fi with Bluetooth 4.0/3.0+HS, 1 x Wi-Fi module, 2 x Antenna, RoHS
WWAN kit IVS-3G-KIT02-R10 3G module kit for embedded system, F260, 1 x 3G module, RoHs
ACC power cable 32002-001900-100-RS Round cable, power cable, 3000 mm, 16 AWG, (A) MOLEX 5557-04P P=4.2, SHANGHAI YING YU, RoHS
Top

E-Window (for ATO assembly)    e-window-icon
Part No. Description
E-MPCIE-LAN-R10 PCIe Mini card supports 1-port GbE with Realtek RTL8111E controller, with PMS 194C I/O bracket and 250mm cable, R10
E-MPCIE-DLAN-R10 PCIe Mini card supports 2-port GbE with Intel I211 controller, with PMS 194C I/O bracket and 250mm cable, R10
Top

Packing List
Item Part No. Qty Description
Screw pack 44005-030083-RS
42005-000603-RS
44003-030052-RS
44045-020031-RS
4
4
4
5
Screw pack
Screw pack
Screw pack
Screw pack
SATA Cable 32801-003608-100-RS 1 Sata cable, 3, 150mm/150mm, 26AWG, SATA 7+15P female 180°, SATA 7P female 90°+lock, JST PHR-2 P=2.0, One pcs PKG W/ label, RoHS
Wall Mount Kit 41020-0482C2-00-RS 2 Wall mount bracket
Top
