IEI Launches AFL3-12C-ULT3 12.1” Light Industrial Interactive Panel PC
IEI Product News

AFL3-12C-ULT3 light industrial panel pc

dot Key Features dot Specifications dot I/O Interface
dot Dimensions dot Ordering Information dot Options
dot IQ Mounting Options dot Packing List

Key Features
arrow 12.1” light industrial interactive panel PC
arrow Wide range DC input with lockable DC jack
arrow Selectable AT/ATX power mode
arrow Built-in speakers
arrow One mSATA slot
arrow IP64 compliant front panel
arrow IEI One Key Recovery solution alllows you to create rapid OS backup and recovery
(suggested with over 4GB storage capacity)
Top
Specifications

Model AFL3-12C-ULT3
LCD Size 12.1”
Resolution 1024 x 768 (4:3)
Brightness (cd/m²) 500
Contrast Ratio 700:1
LCD Color 16.2M
Pixel Pitch (mm) 0.240 (H) x 0.240 (V)
Viewing Angle (H-V) 160º / 160º
Backlight MTBF (hrs) 50000 hrs
Touch Touchscreen Projected capacitive type with USB interface (anti-UV)
Touch Controller EETI EXC3180
Motherboard CPU 6th Generation Intel® Core™ i5 and Celeron® on-board
processor
RAM One 260-pin 2133MHz single-channel, 4GB
DDR4L SO-DIMM pre-installed (system max. 8GB)
Ethernet 2 x PCIe GbE by Intel® i211 controller
Audio Codec ALC892
Storage 2.5” SATA 3Gb/s HDD bay
M.2 M key PCIe (2230)
mSATA slot (PCIe/mSATA/USB)
I/O Ports & Switch 1 x RS-232/422/485 (DB-9)
1 x RS232 (RJ-45)
2 x GbE LAN
2 x USB 2.0
2 x USB 3.0
1 x DC jack (12-30V DC)
1 x HDMI
1 x Power switch
1 x Reset button
1 x AT/ATX switch
E-Window Expansion Yes, optional
Audio AMP 3W + 3W (internal speaker)
Camera and Microphone 2-megapixel with low light function, digital microphone
Wireless IEEE 802.11 a/b/g/n/ac, Bluetooth V4.0, M.2 slot
OSD Function Software OSD
Physical Front Panel
Construction
PC + ABS Plastic
Mounting Panel, Wall, Stand and Arm VESA
75mm x 75mm / VESA 100mm x 100mm
Color Black C
Dimensions (WxHxD)
(mm)
304 x 243 x 58
Cut-out Dimensions
(WxH) (mm)
272 x 223
Net/Gross Weight (kgs) 3/5.03
Environment Operating Temperature
(Ambient with air flow)
-20°C ~ 50°C
Storage Temperature -30°C ~ 60°C
Humidity 10% to 95% (non-condensing)
IP Level IP 64 compliant front panel
Safety&EMC CE , FCC , ErP 2009/125/EC
Thermal Solution Fanless
Power Power Requirement 12 V ~ 30 V DC
Power Consumption 12V@6A
(Intel® Core™ i5-6300U CPU with 4GB DDR42133 MHz DDR4 memory)
Top
I/O Interface

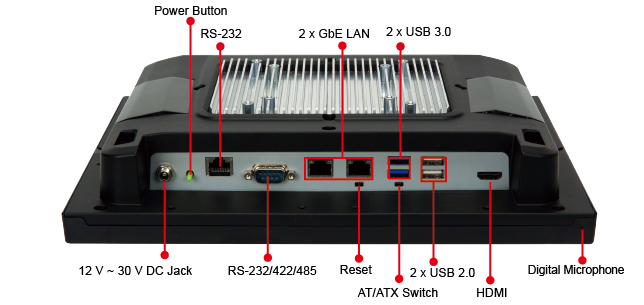

AFL3-12C-ULT3 IO interface


Dimensions (Unit: mm)

AFL3-12C-ULT3 dimension

Top

Ordering Information
Part No. Description
AFL3-W10A-BT-J1/PC/2G-R10 10.1” 350cd/m² 1280 x 800 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac, projected capacitive touch screen, 2GB DDR3L RAM, 2-megapixel camera, microphone, R10
AFL3-12A-BT-J1/PC/2G-R13 12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R13
AFL3-12A-BT-J1/R/2G-R13 12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R13
AFL3-12C-ULT3-C/PC/4G-R10 12.1” 500cd/m² 1024 x 768 panel PC with 6th generation 14nm Intel® mobile Celeron® 3855U (15W) on-board processor (ULT), one 4GB DDR4 RAM,
802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2-megapixel camera, microphone, R10
AFL3-12C-ULT3-i5/PC/4G-R10 12.1” 500 cd/m² 1024 x 768 panel PC with 6th generation 14nm Intel® mobile Core™ i5-6300U (15W) on-board processor (ULT), one 4GB DDR4 RAM,
802.11a/b/g/n/ac Wi-Fi module, PCAP touch, 2-megapixel camera, microphone, R10
Top



Options
Part Number AFL3-12C-ULT3
Panel Mounting Kit AFL3PK-08A-R10
Wall Mounting Kit AFLWK-19B
Rack Mounting Kit AFL3RK-12A-R10
Arm ARM-11-RS/ARM-31-RS
Stand STAND-A12-RS/STAND-C12-R10/
STAND-100-RS
V-Stand VSTAND-A12-R11
Magnetic Card Reader AFL3P-W10MSR-U-R10
Barcode Scanner AFL3-2D-R11
RFID Reader
**(13.56 MHz Mifare Type)
for ATO assembly
AFL3-MF-RFID-KIT02-R10
*OS: Win 7 Embedded (64-bit) AFL3-W12C-ULT3-WES7P64-R10* (for PCAP touch)
AFL3-W12C-ULT3-WES7E64-R10* (for Resistive touch)
*OS: Win 10 IOT Enterprise AFL3-W12C-ULT3-W10E64-R10

**RFID is supported from AFL3-xxA-BT R11 version
*OS image with CD-ROM without storage

Top



E-Window (for ATO assembly)
Part No. Description Supported Model
E-MPCIE-LAN-R10 PCIe Mini card supports 1-port GbE with Realtek RTL8111E controller, with PMS 194C I/O bracket and 250mm cable, R10 AFL3-12A-BT-J1/PC/2G-R12
AFL3-12A-BT-J1/R/2G-R12
AFL3-12C-ULT3-C/PC/4G-R10
AFL3-12C-ULT3-i5/PC/4G-R10
E-MPCIE-DLAN-R10 PCIe Mini card supports 2-port GbE with Intel I211 controller, with PMS 194C I/O bracket and 250mm cable, R10
E-MPCIE-3G-R10 PCIe Mini card supports 3G WWAN, with PMS 130C I/O bracket, 300mm RF antenna cable and GSM antenna cable, R10
Top



Packing List
Item Part No. Q’ty Description
Round head machine screw 44003-020041-RS (12A-BT) 2 M2*4 round head machine screw
Pan head machine screw 44403-040061-RS 4 M4*6 pan head machine screw
Fix holder 46003-009500-RS 2
Power cord 32702-000200-100-RS 1
RJ-45 to DB-9 COM port transfer cable 32005-000200-200-RS 1 300mm, 26AWG,
(A) D-SUB 9 male, (B) RJ-45
Touch pen 43125-0002C0-00-RS 1 Resistive touch screen only
