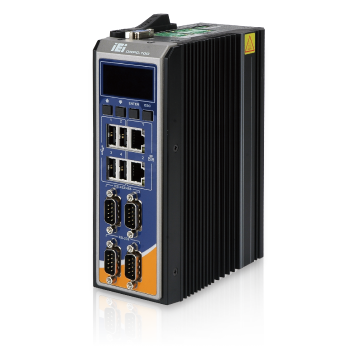

DRPC-100-CV

Fanless DIN-Rail Embedded System,Intel® E3845 1.91GHz/Intel® N2800 1.86GHz Solution

End of Life

End of Life Notice

* Effective Date: 2018/08/29

» Intel® Atom™ N2800 1.86GHz
» Serial, CAN-bus and digital I/O interfaces with isolation protection
» 1 x PCIe Mini expansion slot for addon function purpose
» Programmable OLED display

Hardware Spec.

Color
Color Black
Dimensions
Dimensions 59.4 x 140 x 171.5
Environment
Humidity 5% ~ 95%, non-condensing
Operating Temperature -25°C ~ 65°C with air flow (SSD)
Expansion Slots
Expansion Slots 1 x Full size (support mSATA)
Form factor
SBC Form Factor CPU:
Intel® Atom™ N2800 1.86 GHz
Chipset:SoC
System Memory:
One 2 GB 204-pin DDR3 SO-DIMM pre-installed
(system max: 4 GB)
I/O Interface
I/O Ports 4 x USB 2.0
Ethernet:
2 x RJ-45 Realtek 8111E PCIe GbE
COM Port:
2 x DB9 RS-232
2 x DB9 RS-422/485
1 x Phoenix terminal block w/ 3KV isolation protection
8-bit digital I/O, 4-bit input/4-bit output
1 x Phoenix terminal block w/ 3KV isolation protection,
supporting 2-port CAN-bus
1 x VGA
SATA DOM support
802.11b/g/n 1T1R (optional)
Indicator&Buttons
Indicators Power/HDD/Com port/DIO
System
Cooling method / System Fan Fanless
Drive Bays 1 x 2.5' SATA 6Gb/s HDD/SSD Bay
Weight
Weight 1 kg/2 kg

Ordering Information

DRPC-100-CV-LED-R10 Extended temperture fanless embedded system with Intel® Atom™ N2800, with 2GB DDR3 memory, two GbE, four USB2.0, two RS-232, two RS-422/485 two CANbus, one 8bit DIO, 9V~28V DC, -20ºC~65ºC, LED indicator, RoHS
DRPC-100-CV-OLED-R11 Extended temperture fanless embedded system with Intel® Atom™ N2800, with 2GB DDR3 memory, two GbE, four USB2.0, two RS-232, two RS-422/485 two CANbus, one 8bit DIO, 9V~28V DC,-20ºC~65ºC, OLED indicator, RoHS

Package Contents

Package Content
  • 1 x Screw kit

  • 1 x Mounting bracket

  • 1 x SATA cable & SATA power cable
