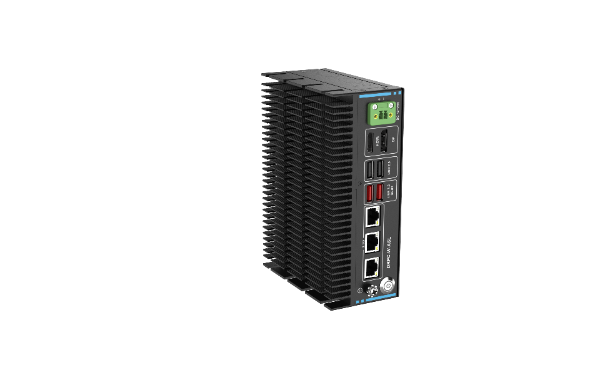

DRPC-W-ASL
SBC Form Factor	● Supported CPU: Intel Atom® x7433RE SoC Processor (up to 3.4GHz, 4 core, TDP 9W) Intel Atom® x7835RE SoC Processor (up to 3.6GHz, 8 core, TDP 12W) Intel® Processor N150 0.8 GHz (up to 3.60 GHz, 4 core, TDP 6W) ● Chipset: SoC ● System Memory: 1 x DDR5 4800MHz SO-DIMM (pre-installed 8GB) (up to 16GB) ● Power: Power Input: 12 ~ 28V DC
I/O Ports	● USB: 2 x USB 3.2 Gen 2 2 x USB 2.0 ● Ethernet: 3 x 2.5 GbE LAN via Intel® I226-IT ● Display: 1 x HDMI™ 1.4 (up to 4K @ 30Hz) 1 x DP 1.4 (up to 4K @ 60Hz)
Expansion Slots	● M.2: 1 x M.2 E Key 2230 (PCIe Gen3 x1 & USB 2.0) 1 x M.2 M Key 2242/2280 (PCIe Gen3 x2)
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5＂ SATA 6Gb/s SSD/HDD bay
Buttons	1 x Power button
Construction	Extruded Aluminum alloy
Color	Black
Dimensions	163mm x 116mm x 60mm
Weight	1.13Kg
Operating Temperature	-40°C ~ 70°C (Intel Atom® x7433RE/ x7835RE) -10°C ~ 60°C (Intel® N150)
Humidity	10% ~ 95%, non-condensing
Operating Vibration	10-500 Hz, 1.04 Grms, random, 1 hr/axis
Operating Shock	Half-sine wave shock 5G, 11ms, 100 shocks per axis
Safety & EMC	CE, FCC
OS Compatible	Microsoft® Windows 10 / 11, Linux
