IEI PPC-F-ULT5 IP66 Industrial Panel PC - Fanless, Intel Whiskey Lake-U CPU, POE PD Power Supply

IEI PPC-FW19D-ULT5 Touch Panel PC

Overview

  • 15”, 15.6”, 17”, 18.5” Panel PC with Intel® Whiskey Lake Core™ i5-8365U, Intel® Celeron® 4305UE
  • Low power consumption and fanless design
  • IP66-rated front panel for water and dust resistance

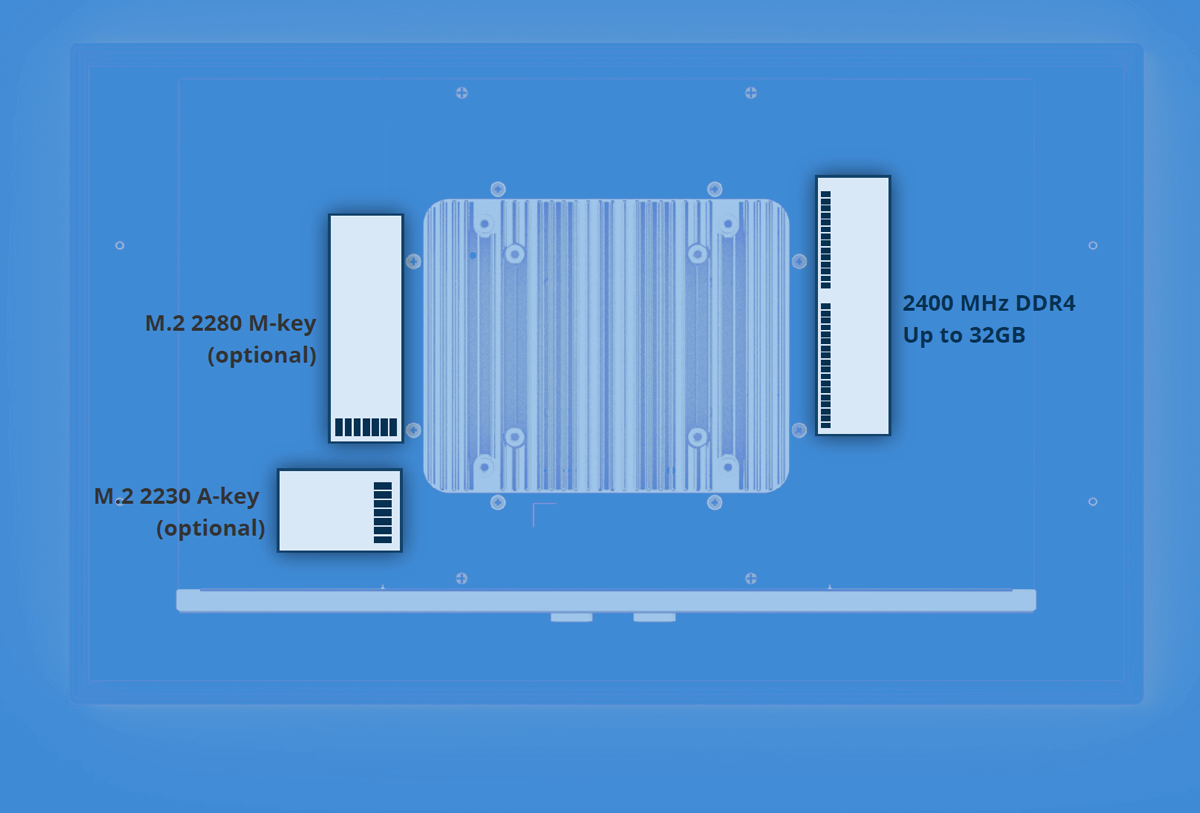

  • Modular architecture
  • VESA 100 mm standard mounting holes for varied mounting demands
  • Support PoE PD power
  • Support NVMe SSD

>Download Datasheet

>Comparison Table

>Send Inquiry


Gen 8th quad core High-speed Processing and Transmission

Support Intel® Whiskey Lake Core™ i5-8365UE and four USB 3.2 Gen 2 (10Gbps)

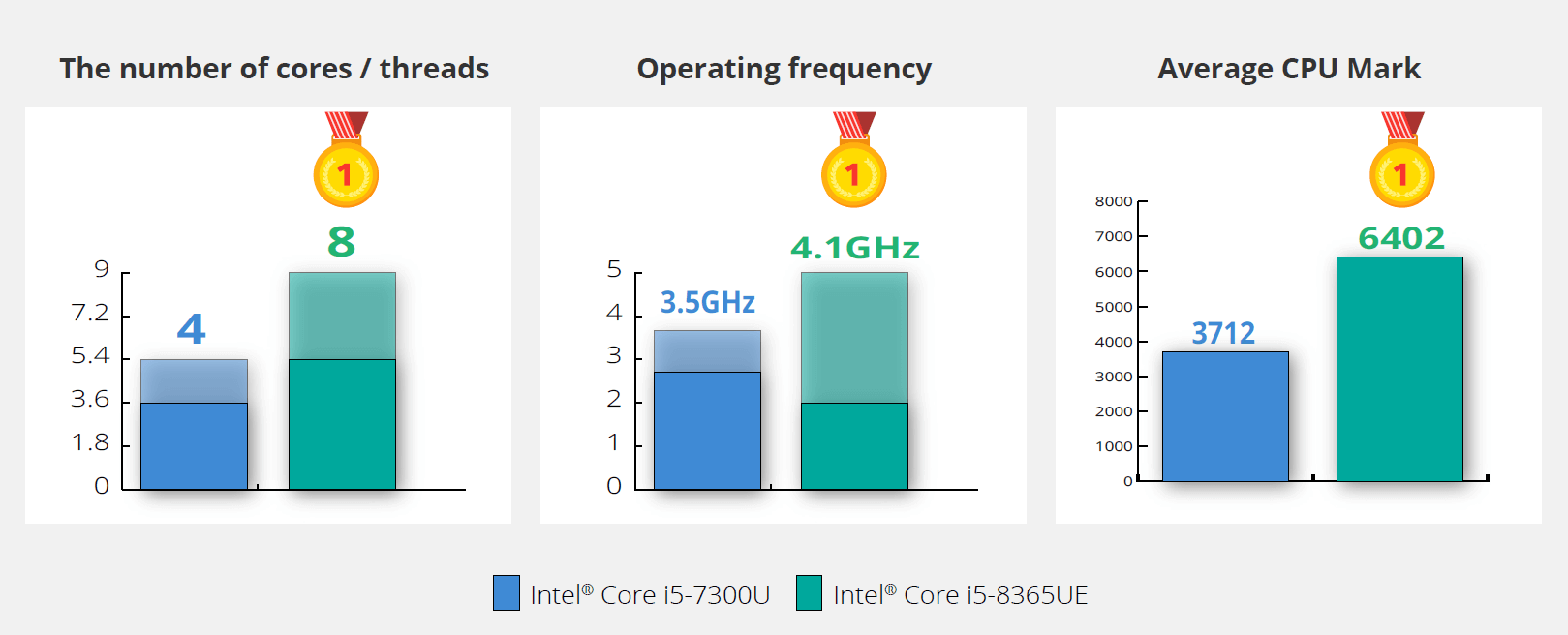

Intel CPU Comparison Chart

The advantages of Core i5-8365UE

  • More processing cores than the Intel® i5-7300U
  • Higher memory bandwidth, owing to faster supported DDR4-2400 memory
  • Executes more simultaneous threads
  • Runs at higher frequency

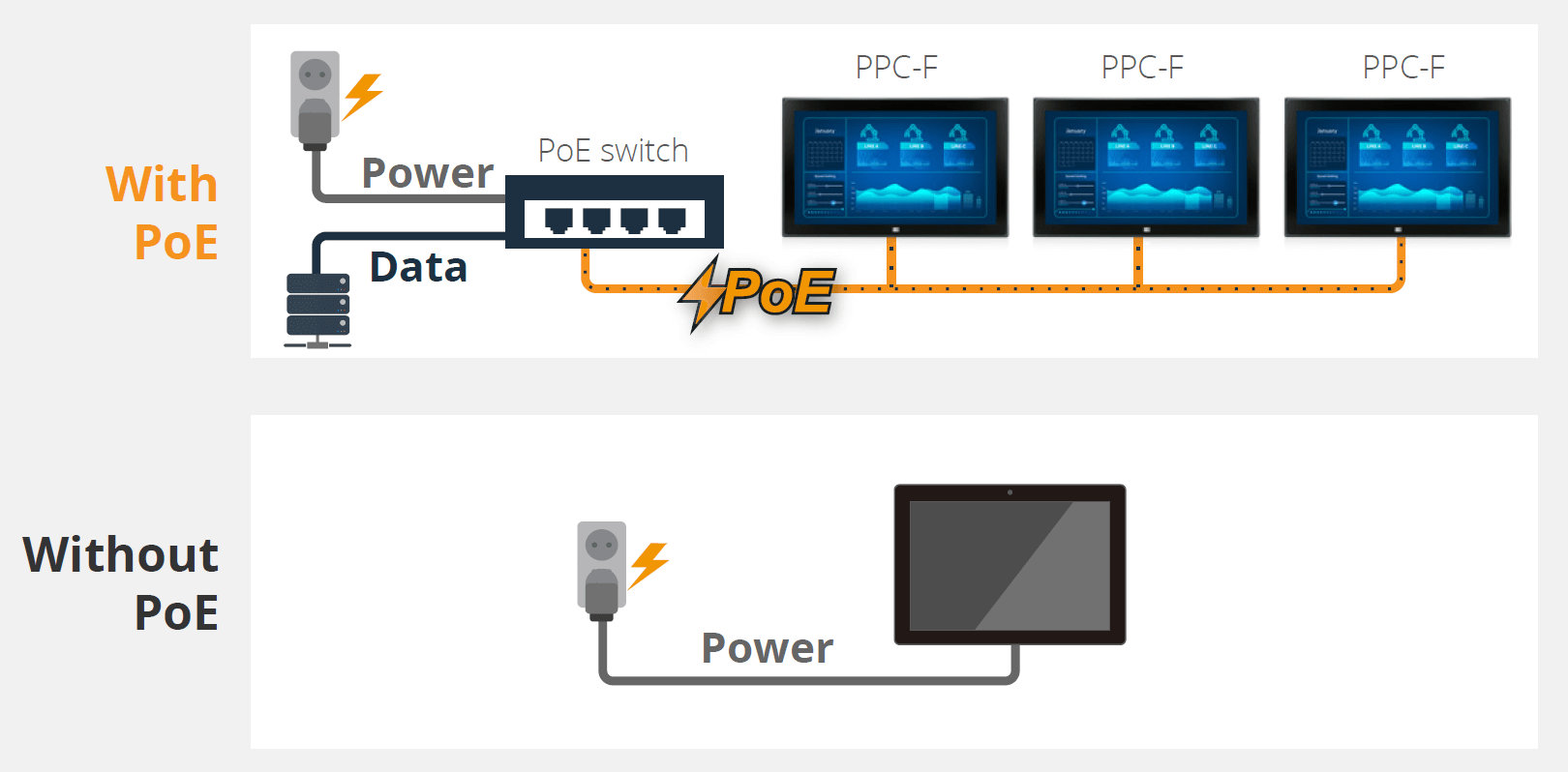

With PoE VS. Without PoE

PoE Scenario

PoE allows electronic devices to receive both power and data through one Ethernet plug-in. The ability to receive both power and data through one cord means less cabling and less cost for the factory automation.

PoE PD Power Supply Scenario

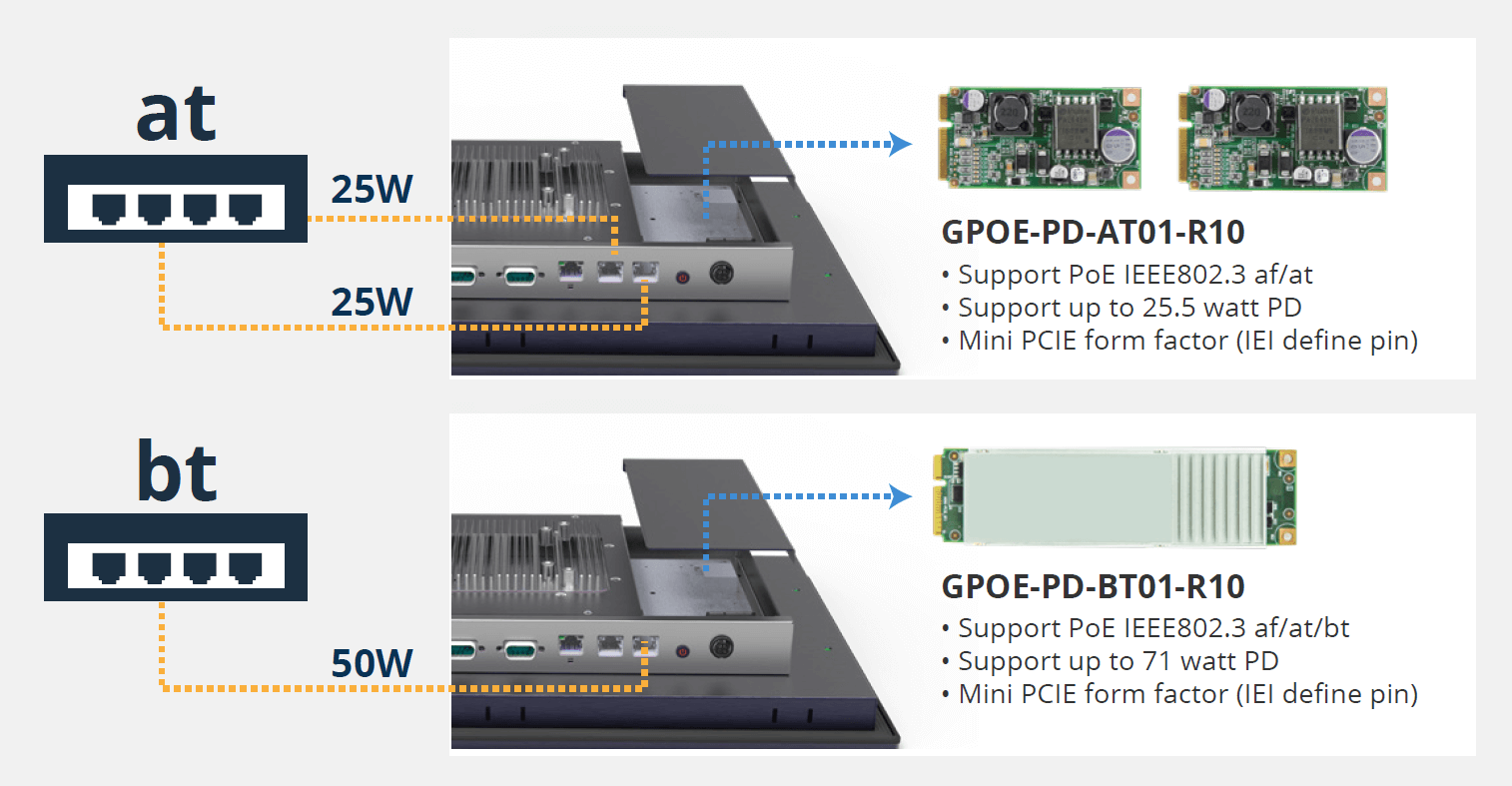

Compatible with both at/bt standard

Customers who is unable to upgrade their PSE switch to IEEE802.3bt standard can, simply upgrade the WHL-U panel PC by installing IEI’s GPOE-PD-AT01 module, and power the device with two IEEE802.3at standard PSE ports.

IEEE802.3 at/bt standard comparison

Friendly Hardware Design

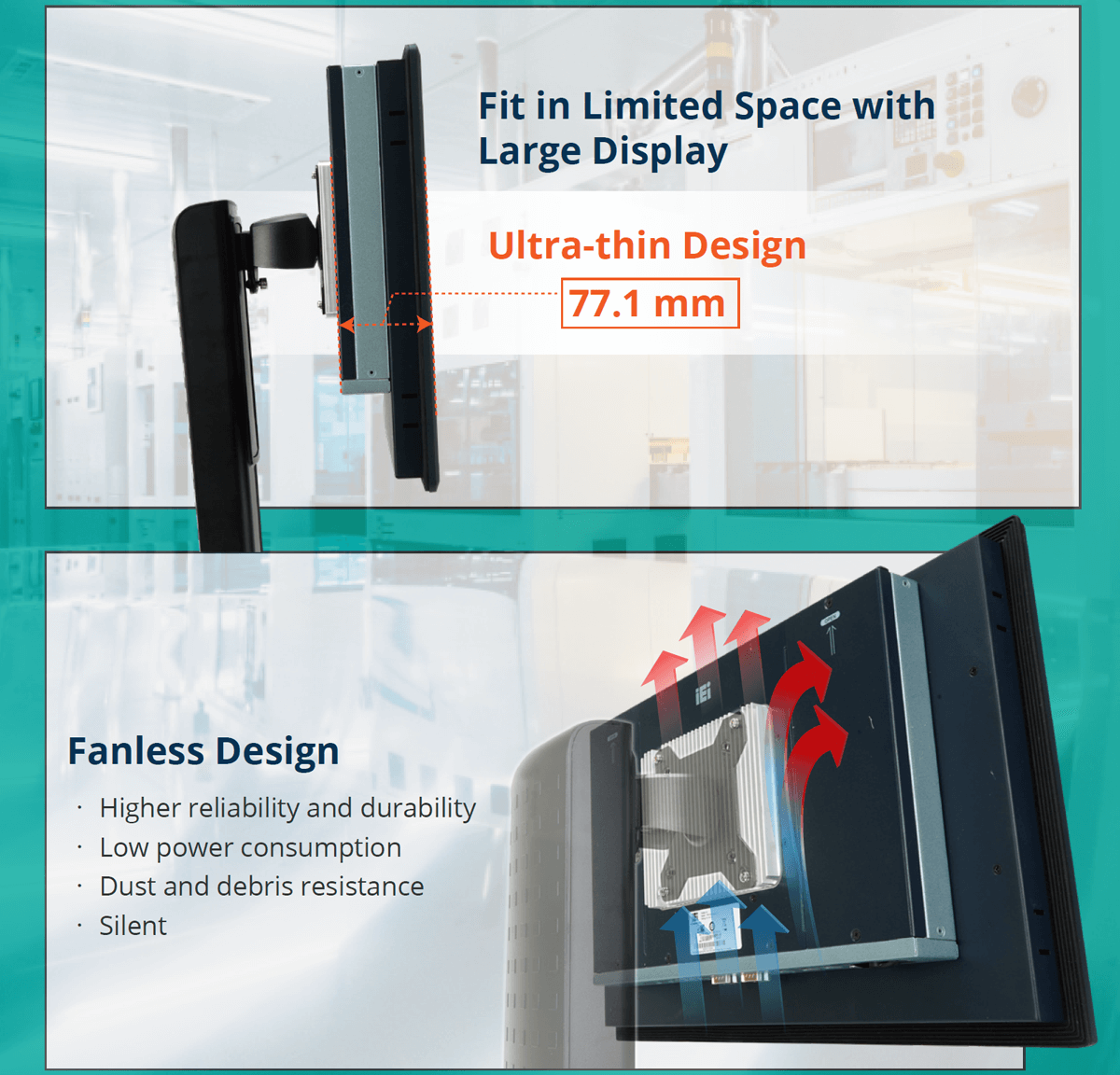

Ultra-thin & Fanless Design

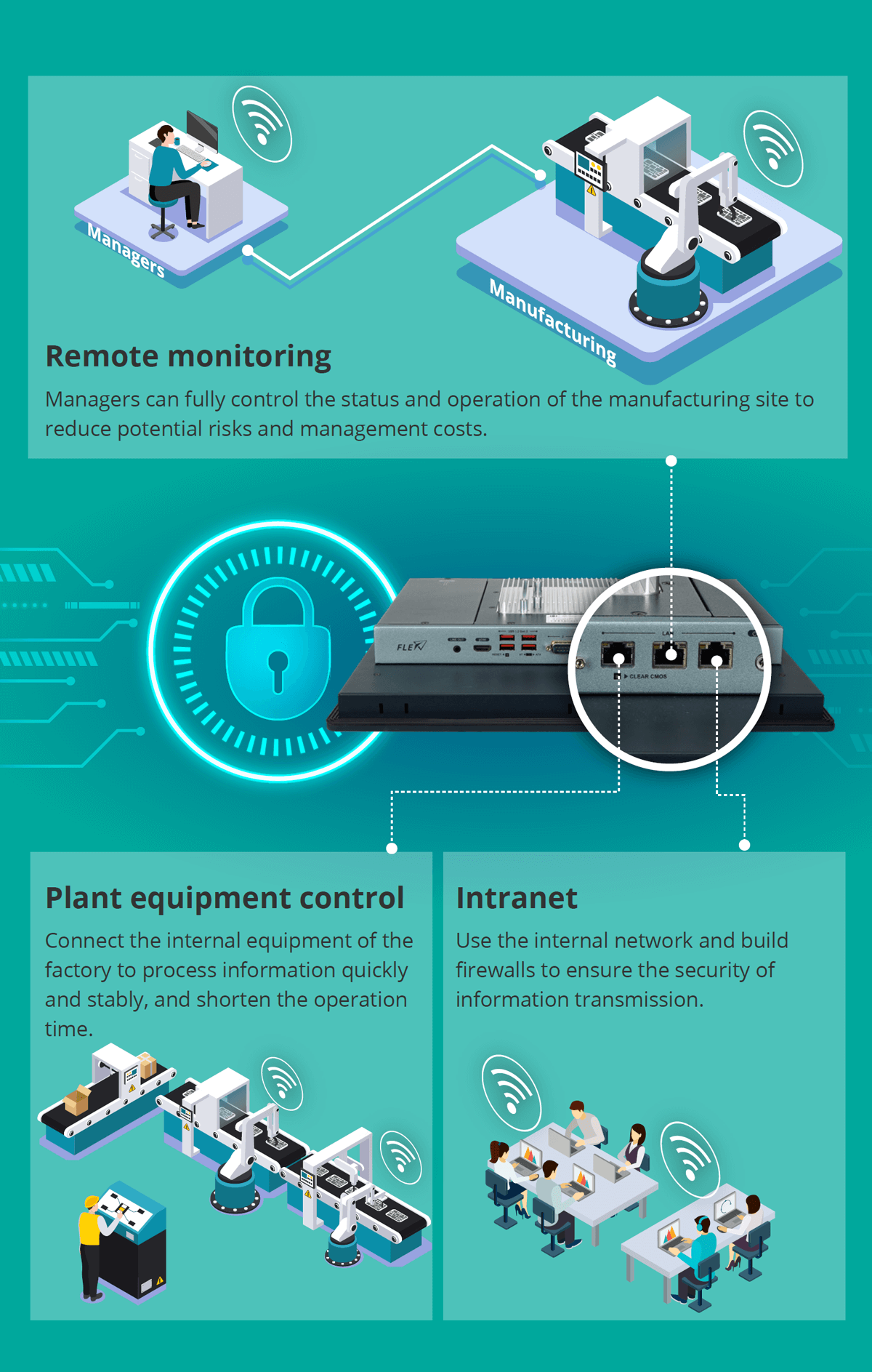

Triple GbE ports, creating a networked industrial control system environment

Triple GbE ports, creating a networked industrial control system environment

Suitable for Semi-outdoor Environment

IP66-rated front panel for water and dust resistance


Industrial Panel PC for harsh environment

Anti-glare (AG) and UV-resistant touch screen


The screen features anti-glare and anti-UV coating, which can reduce the reflection rate from 8% to 1% and effectively slow the aging of the screen. Outdoor applications mean exposure to direct sunlight and long-term exposure to ultraviolet (UV) light will affect PCAP panel appearance such as PCAP top glass hard coat cracking and hazing or varying degrees yellowing and bubbling. Thus, IEI offers a UV resistant PCAP touch solution to equip outdoor industrial systems exposed to direct long-term sunlight with Anti-UV characteristics.

  • Blocks UV wavelengths less than ≈340nm
  • Meets ASTM G154 performance criteria Cycle 1 for 1000 hours

Easy Assembly and Maintenance

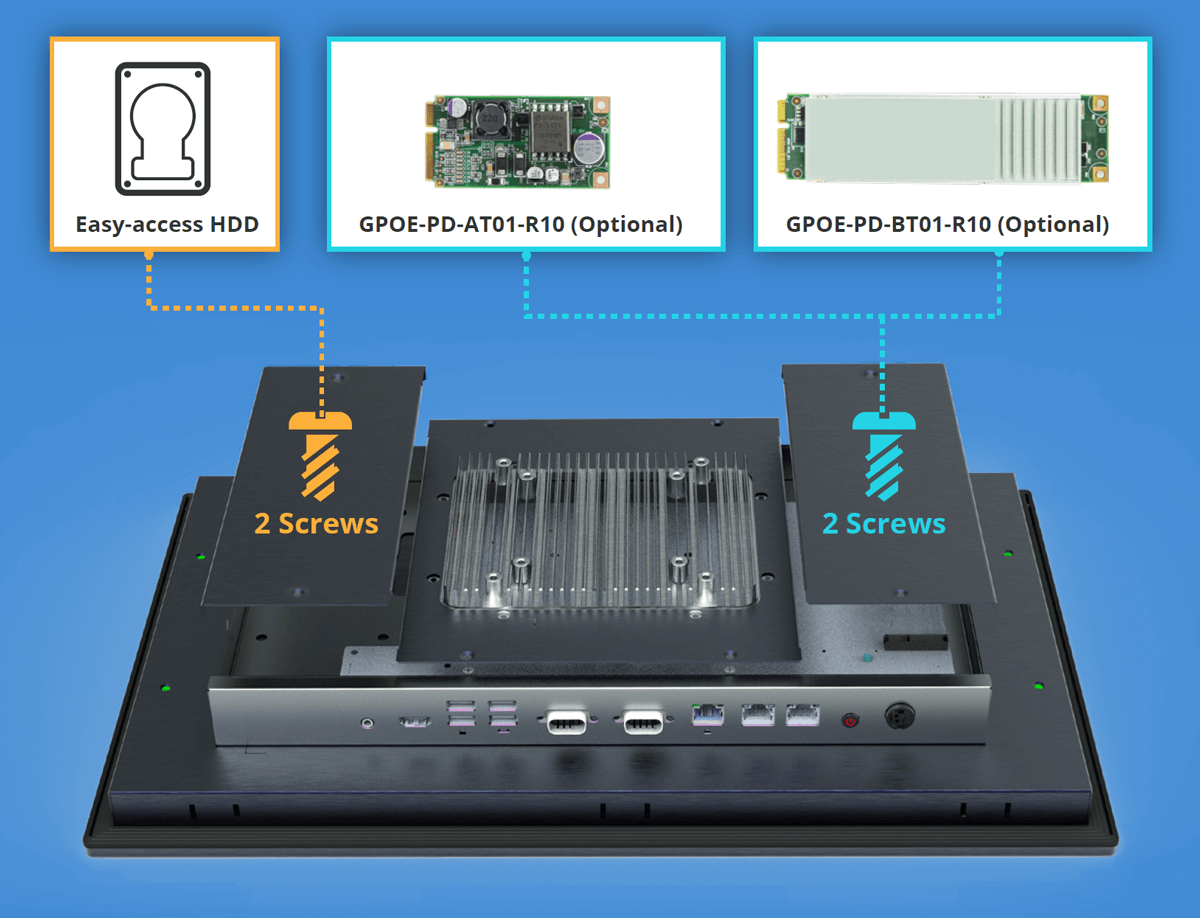

Easy-access HDD and PoE PD module

Easy-access HDD and PoE PD module

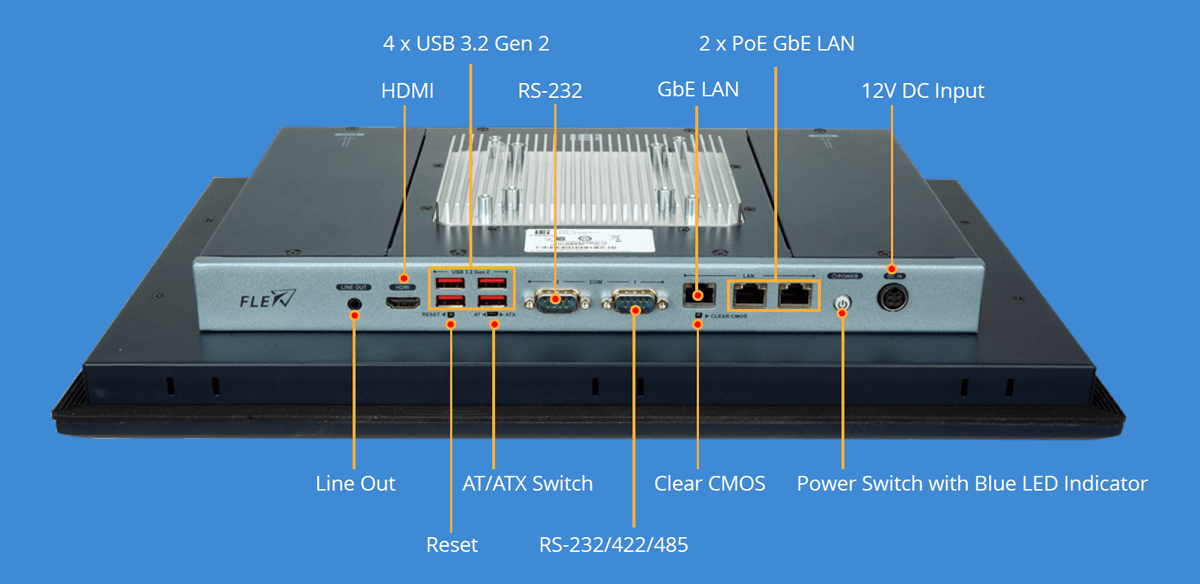

Fully integrated I/O

Easy-access HDD and PoE PD module
