AFL3 industrial panel pc with power over ethernet banner

IEI Power over Ethernet Industrial Panel PCs

PoE (Power over Ethernet) technology delivers data and power over one Cat5e/Cat6 Ethernet cable. It allows you to add a device at remote or awkward locations as well as using existing IT infrustraction to installed things to do the work. IEI new Light Industrial Interactive Panel PC includes PoE IEEE 802.3bt which is a great solution for Point-of-sale (POS) system, digital signage, or factory automation. Save the cost on installing additional electrical outlet for the device.

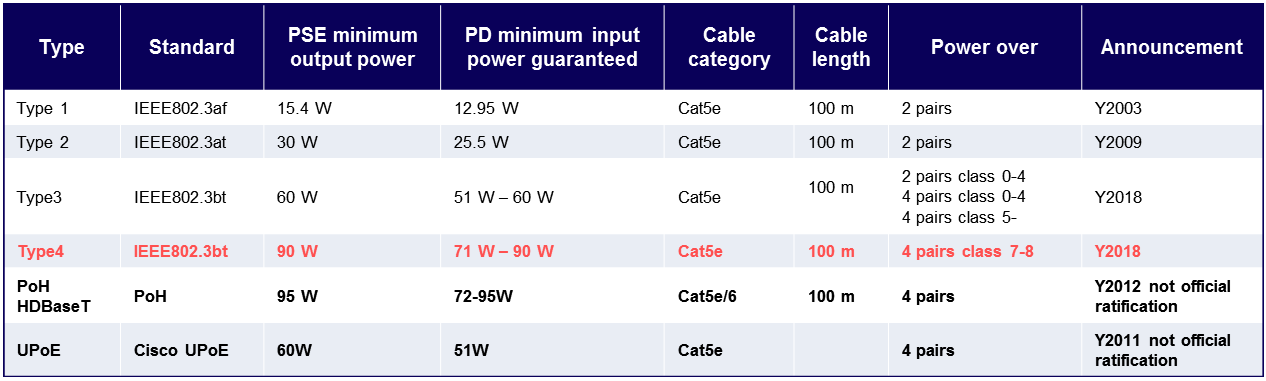

In Compliance with IEEE802.3bt Standards

IEEE802.3bt Standards industrial panel pc

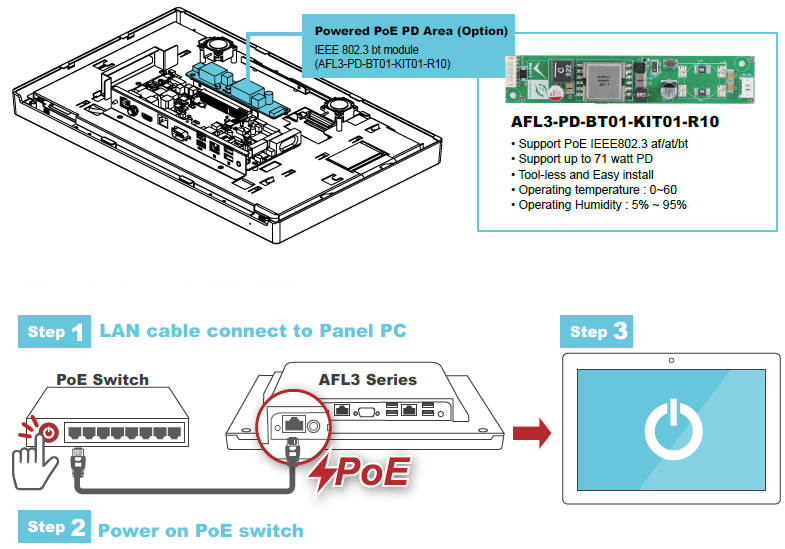

IEEE802.3bt PD Module

IEEE802.3bt PD Module

Storage Area & Expansion Area

Storage Area & Expansion Area

AG Coating & Anti-UV

  • AG Coating: With the implementation of AG coating, the AFL3 series can prevent eye discomfort caused by reflective glare
  • Anti-UV: The Anti-UV can prevent the yellowing or cracking caused by long-term exposure of UV light or in most cases, the sun. Thus improving the life span of the touch panel

Waterproof Grade

  • The IP65/ IP64 compliant front panel of the AFOLUX GEN III panel PC has passed tests to check if there is any water, dust or dirt passing the sealing design. Reference IEC60529 Testing Procedures: Hose diameter: 25.4 mm (UL50 Type 4X), the distance from water hose to DUT is 3 meters.

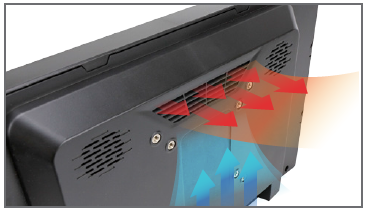

Fanless Design

  • Operating Temperature (°C) (Ambient with air flow): minus -20˚C~50˚C
  • Storage Temperature (°C): minus -20˚C~60˚C

IEI Unboxing|Fixing your problem with IEI panel PC|AFL3-W15A-AL


Product Selection

Panel PCs

AFL3-W07A-AL 7 inch panel PC

AFL3-W07A-AL

  • W7” light industrial panel PC
  • IP65 compliant front panel
  • 12V DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • On board IEEE802.3 at standard
AFL3-W10A-AL 10 inch panel PC

AFL3-WXXA-AL

  • W10.1”, 12.1” , W15.6”panel PC
  • IP64 compliant front panel
  • 9 V ~ 30 V wide range DC input with lockable DC jack
  • Selectable AT/ATX power mode
  • Support PoE PD IEEE803.2 af/at/bt

Related PSE peripheral cards

IEI PCI Express Power over Ethernet card GPOE-2P

GPOE-2P

  • PCI Express® x1 compliant
  • Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
  • Support link aggregation/jumbo frames (9 Kbyte)
  • Supports 12V~24V DC input power
    - Specifications
IEI PCI Express Power over Ethernet card GPOE-4P

GPOE-4P

  • PCI Express® x1 compliant
  • Support for total 90 watts under full load
  • Support link aggregation/jumbo frames (9 Kbyte)
  • Supports 12V~24V DC input power
    Specifications
