iei coffee lake products

Video Highlights

  • Intel® 8th Gen Core™ Platform Overview Highlights
  • Intel® 8th & 7th Gen Core™ Comparison
  • IEI Coffee Lake- Products solution

- Download slide

Intel® 8th Gen Core™ Platform Highlights

additional performance intel cpu

Additional Performance

137% better productivity vs 4th Gen processors or 10% performance gain from 7th Gen processors.

high media experience intel cpu

Media/Video Experience

High Dynamic Range (HDR) Rec.2020, HEVC 10-bit encode/decode, VP9 10-bit decode, Chrome browser VP9 HW acceleration support.

new ux Intel CPU

New UX Capabilities

Speed and versatility with USB-C / USB 3.1(10 Gbps)


Intel® Coffee Lake Graphics Support

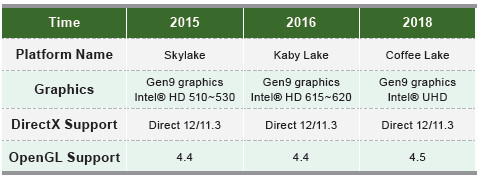

Display Comparison

display-comparison

DisplayPort & 4K UHD Premium Content Support

coffeelake-displayport

Intel® Coffee Lake OS Support

coffee lake OS support

Features of IEI Product with 8th Gen Intel® Core™ Processors

M.2

IEI provides new products supporting Next Generation Form Factor (NGFF) expansion cards in different types, such as SSD, WWAN and WLAN cards suitable for small devices. Products with 8th Gen Intel® Core™ processors supports PCIe Gen3 x 4 NVMe interface.

IEI support M.2

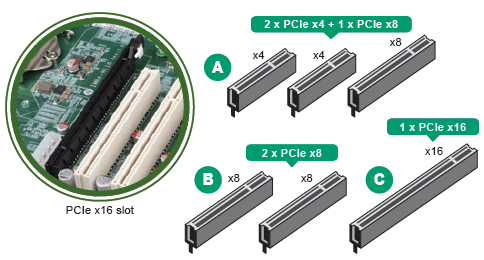

Flexible CPU PCIe x16

Motherboards with high-end CPU has three controllers that can separate PCIe x16 into different sets.

flexible CPU PCIe x16

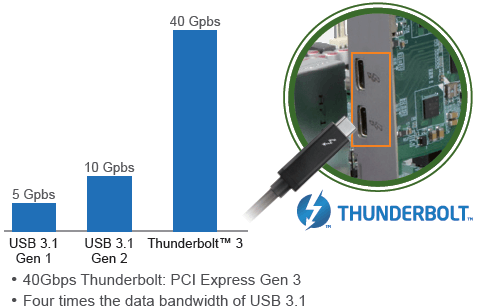

Thunderbolt 3

Support dual Thunderbolt 3 by PCIe x4 card with Intel® Alpine Ridge DSL6540. Support more high speed applications through the latest USB Type C and thunderbolt 3 technology.

coffee lake thunderbolt3

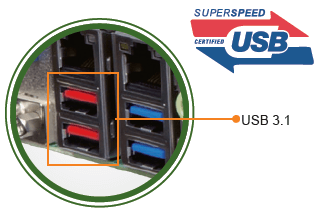

USB 3.1 Gen2

USB 3.1 Gen2 on USB Type A connector doubling the speeds of USB 3.1 Gen1 to as much as 10Gbps.

iei intel coffee lake support USB 3.1

Product Selection

IMBA-Q370-industrial-motherboard

IMBA-Q370

  • LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Pentium® or Celeron® processor
  • Dual-channel DDR4 2666MHz
  • Support VGA, HDMI & DP++
  • Support M.2 A key for WLAN expansion, M key for storage
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery

- View Details

- Send Inquiry

KINO-DH310-single-board-computer

KINO-DH310

  • LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor
  • Dual-channel DDR4 2666MHz
  • Support eDP & Dual HDMI
  • Support M.2 A Key for WLAN expansion & M key for storage

- View Details

- Send Inquiry

PCIE-Q370 single board computer

PCIE-Q370

  • PICMG 1.3 full-size CPU card
  • LGA1151 Intel® 8th Generation Core™ i7/i5/i3, Celeron® and Pentium® processor supported
  • Dual-channel DDR4 2666MHz
  • Support VGA display
  • Intel® PCIe GbE with Intel® AMT 11.0 supported
  • Support M.2 M key for storage (PCIe x4)
  • Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s

- View Details - Send Inquiry

FLEX AI modular box PC

FLEX-BX200-Q370

  • 2U AI Modular PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor
  • Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
  • Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
  • Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
  • QTS-Gateway support
  • Modular LCD panel kit design

- View Details

- Send Inquiry

PPC-F15C-Q370 panel PC

PPC-F15C-Q370

  • 15” Panel PC with 8th Generation LGA 1151 Intel® Core™ i7/i5/i3 and Pentium® processor
  • Four hot-swappable and accessible HDD drive bays, support RAID 0/1/5/10
  • Two PCIe 3.0 by 4 and two PCIe 3.0 by 8 slots
  • Dual M.2 2280 PCIe Gen 3.0 x4 NVMe™ SSD support
  • QTS-Gateway support

- View Details

- Send Inquiry
