How to let IEM-LX-R11 ETX module support 24-bit TTL LCD panel?
How to let IEM-LX-R11 ETX module support 24-bit TTL LCD panel?
KBA-01092-LYCLL6
Brief Description
When the TTL interface LCD panel is working with IEM-LX-R11, the panel gets wrong color and unusual display. Why?
Solution

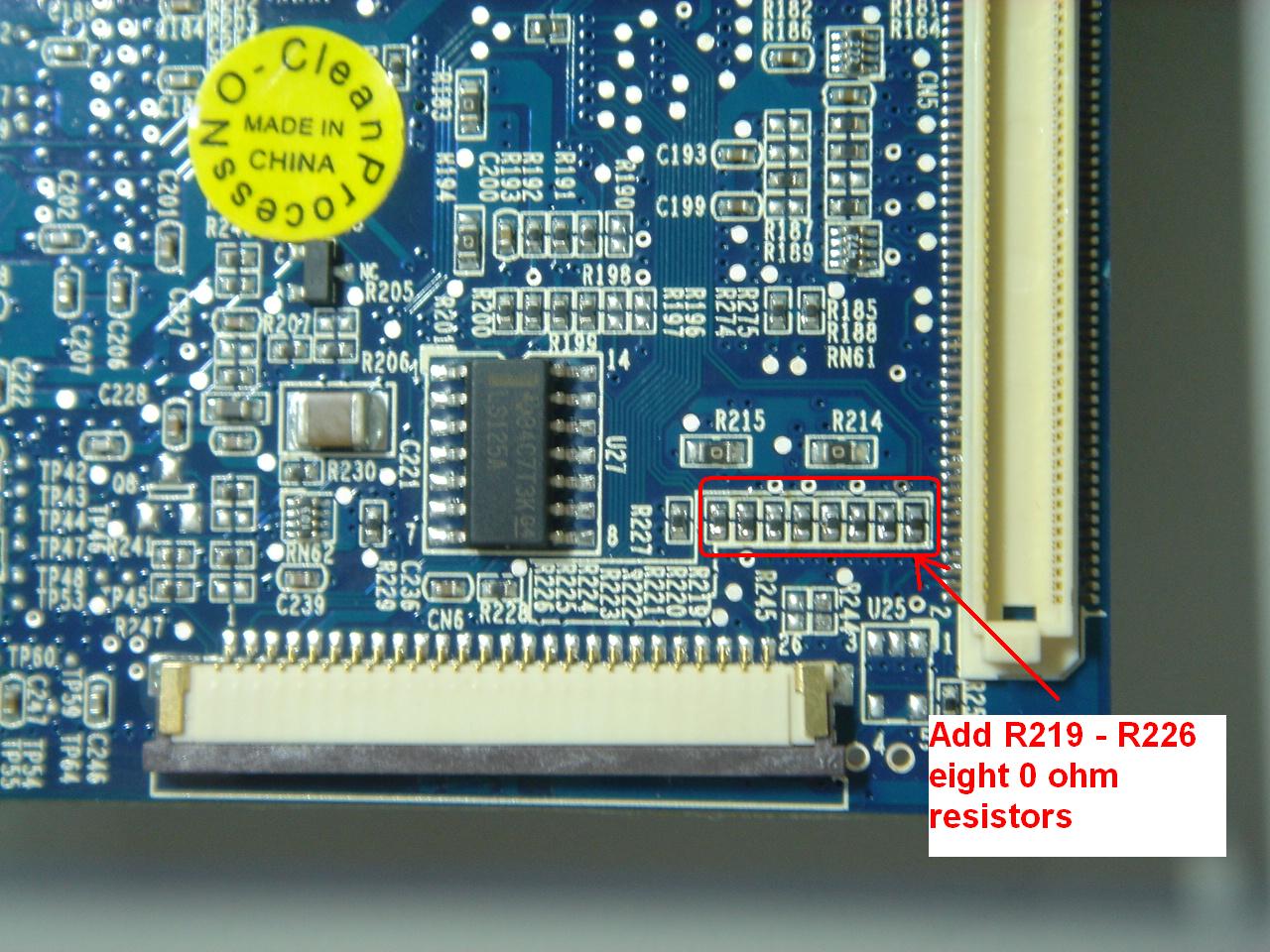

That's because standard IEM-LX-R11 module just supports 18-bit LVDS LCD panel. But you can remove U19 chip and add eight 0 ohm resistors to R219-R226 (refer to the two attached pictures), then make it support 24-bit TTL panel.
Remark

*** Attachments ***

2016/02/24
