  • Overview

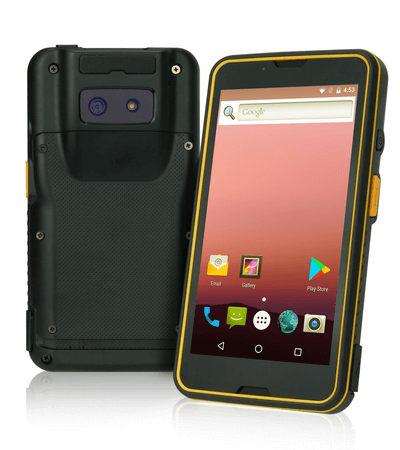

    ● 1.5m drop survival and IP 65 protection
    ● Octa-core 64-bit Cortex-A53 1.5 GHz processor

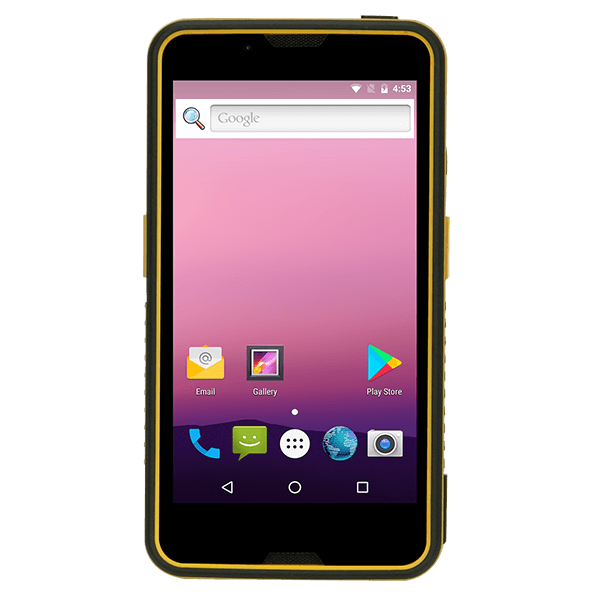

    ● 5.5" display PDA
    ● Optional GSM (850, 900, 1800, 1900)
    WCDMA (Band 1, 2, 5, 8)
    TDS-CDMA (Band 34, 39)
    LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
    TDD (Band 38, 39, 40, 41b)
    ● Micro USB port and microSD card slot (max. 64 GB) for maximum connectivity
    ● Android 7.0 OS
    ● 1D/2D imager scan engine
    ● NFC (device to device communication, card reader).
  • Features

    modat-550A-data-collector

    IEI Case Study|Compact, Rugged, and Connected Mobile device|MODAT-550A


    I/O Interface

    modat-550a-data-collector-I/O Interface

    Cradle Specification

    modat-550a-data-collector-I/O Interface
    cradle-spec
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Communication
      Bluetooth 4.0 LE
      GPS GPS/Glonass
      modem GSM (850, 900, 1800, 1900)
      WCDMA (Band 1, 2, 5, 8)
      TDS-CDMA (Band 34, 39)
      LTE FDD (Band 1, 2, 3, 4, 5, 7, 8, 20)
      TDD (Band 38, 39, 40, 41b)
      Wi-Fi 802.11a/b/g/n
      Data Collection
      Barcode 1D/2D imager scan engine

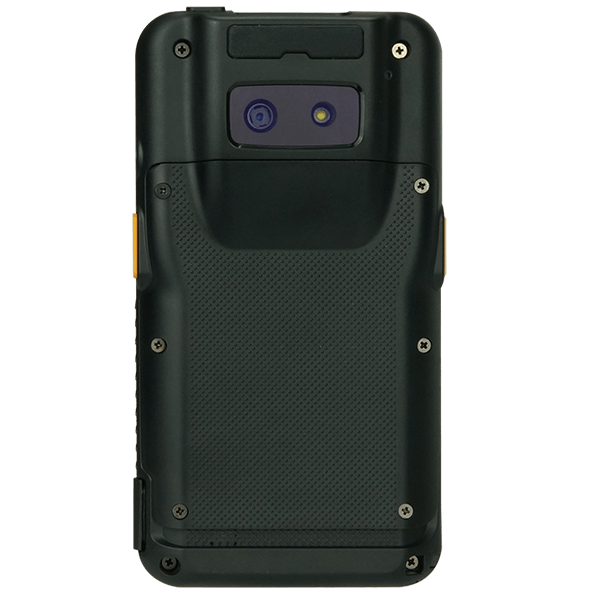

      Camera 13-megapixel AF rear camera
      Display
      Brightness(cd/m2) 300
      Max Resolution 1080x1920
      Touch Screen 5-point capacitive
      Viewing Angle 80/80/80/80 deg
      Environment
      Drop Survival 1.5m
      Environmental Protection IP 65
      Humidity 10% ~ 95%, non condensing
      Operating Temperature -10°C ~ 50°C
      Storage Temperature -20°C ~ 60°C
      I/O Interface
      Audio 1 x 0.5W speaker
      1 x Headset/Mic-in
      USB 1x High-speed Micro USB 2.0 OTG
      I/O Interface
      I/O Interface 1 x Mic
      1 x MiniSD Slot
      1 x Power In
      1 x Power switch
      1 x SD Slot
      1 x Speaker
      1 x USB 2.0
      Indicator&Buttons
      LED Indicator Green/Red
      Physical Characteristics
      Dimensions (LxWxH) (mm) 160.9 mm x 85.4 mm x 28.85 mm
      Net Weight Under 380g
      Power
      Battery 4000 mAh
      Power adapter 5V/3A
      System
      CPU Octa-core 64-bit Cortex-A53 1.5 GHz processor
      On-board Memory 16GB eMMC
      2GB LPDDR3
      Operating System Android 7.0
      Storage microSD slot up tp 64GB
    • Ordering Info.

      Item No. Description
      MODAT-550A-OA53-ET-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
      MODAT-550A-OA53-ET-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
      MODAT-550A-OA53-ET-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
      MODAT-550A-OA53-ET-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
      MODAT-550A-OA53-R10-CN 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, CN reg, RoHS
      MODAT-550A-OA53-R10-EU 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, EU reg, RoHS
      MODAT-550A-OA53-R10-TW 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, TW reg, RoHS
      MODAT-550A-OA53-R10-US 5.5" Android 7.0 PDA with Octa-Core Cortex-A53 1.5GHz, 802.11 a/b/g/n WiFi, 4.0 LE Bluetooth, (GSM, 3G, LTE), GPS,  13M pixel camera, 1D/2D barcode, 2GB LPDDR3, 16GB eMMC, NFC, US reg, RoHS
    • Package Contents

      • 1 x USB Cable

      • 1 x AC-DC Adapter

      • 1 x Hand Strap
