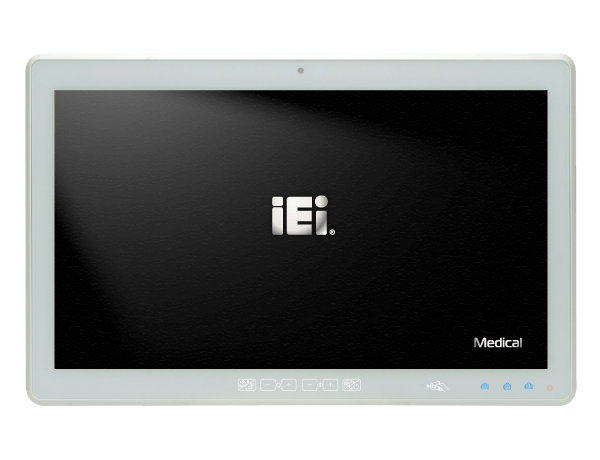

24” Medical Panel PC with 6th Generation Intel® mobile
Overview● 24＂ fanless FHD medical grade panel PC● Intel® Celeron®, Core™ i5/i7 Skylake ULT SoC processor● Three hot-swappable batteries with a total runtime of 8~16 hours is ideal for non-powered medical carts● The battery docking station can perform fast charging, taking only 3 hours from 0 to 100%● Optional integrated RFID, 3-in-1 card reader, external 1D/2D barcode reader and USB phone
Medication carts for healthcare facilities need a better energy storage solution to power their equipment, but most of current battery solutions do not have the capacity to complete each shift, are slow to recharge, add considerable weight to the carts, and need annual replacement. IEI’s latest mobile POC series, the POCm, allows for easier movement of medical carts as well as providing longer run time for the non-powered medical cart use.
20% Weight Off Makes the Cart Lighter
Each battery pack used in the POCm only weights 460 grams, which is much lighter than traditional hospital nursing cart battery (LiFePO4/ 6.5 Kg).
6th Generation Intel® Mobile ULT Processor
The POCm series integrated with Intel® Skylake-ULT i5-6300U processor offers dramatically higher CPU and graphics performance running at 15W thermal design power (TDP). With low power consumption design, the fanless system runs longer on battery, ideal for mobile medical care applications.
Three Hot-swappable Batteries
IEI’s POCm series with three hot-swappable, rechargeable lithium-ion batteries provides non-stop operation service for nursing cares
● Long lasting battery (7800mAh/87Wh each battery pack) provide sufficient power for running 8~16 hours
● The user can change the low power hot-swappable battery anytime without work interruption and avoid water and dust dropping
● Ergonomic side-facing design ease the use for nurses with different height and avoid dust and water accumulation
● The fool-proof battery slot with clean indication can avoid wrong operations.
6-Slot Battery Charging Station
The 6-slot battery charging station built-in with an optimized charging module provides fast charging capability. Six batteries can be fully charged within 3.5 hours delivering greater convenience for the daily charging task.
● Side slide-in design prevents the station from dust and water accumulation
● Sleek outlook design with 15V/280W AC power adapter.
IRM Utility (IEI Real-time Monitoring)
The workload of the IT departments in digital hospitals is increased, owing to the prevalence of IT device deployment. The built-in IRM (IEI Real-time Monitoring) software not only helps the terminal users check the status of batteries but also allows the IT technicians to monitor the whole system at a remote site. This design greatly enhances the working efficiency of our users and reduces time wasting in daily system inspection job.
Multi-touch Screen for Medical Use
IEI’s POCm series integrated with seamless PCAP glass touch screen is extremely easy to clean and very resistant to scratches and chemicals.
● 10-point PCAP touch enabling smooth operation and easily customized to 1-point or 2-point touch by firmware adjustment.
● 6H surface scratch resistance
● Gloved touch support in standard firmware allows operation with multiple layers of surgical gloves
● Advanced water handling prevents false touch phenomena caused by fluids and gels on the touch surface
The shell of the POCm series contains antibacterial silver ion to effectively inhibit the propagation of bacteria. And the test was executed in accordance with JIS Z 2801“Anti-microbial products test for anti-microbial activity and efficacy”.
● Staphylococcus aureus
● Escherichia coli
● Pseudomonas aeruginosa
● Klebsiella pneumoniae
Antimicrobial Mechanism of IONPUREWith the presence of moisture, IONPURE releases a few Ag ions gradually. As microbes charged with minus on their surface, Ag ions that have plus are drawn toward microbes, and disturb their electric balance. And just then microbes are burst their cell wall and extinguished.
Spec Item Description Communication Bluetooth V4.2 (M.2 2230 A-E key module) Wi-Fi IEEE 802.11 a/b/g/n/ac 2T2R module Display Backlight MTBF(hrs) 30000 Brightness(cd/m2) 250 Contrast Ratio 1000:1 LCD Size 24＂ Max Resolution 1920x1080 Environment Humidity 10% to 90% (non-condensing) IP Level Front: IP65, Back: IP32 Operating Temperature 0°C~40°C Storage Temperature -20°C~60°C I/O Interface Audio 2 x 3W Speaker Expansion 1 x Full-size/half-size PCIe Mini (PCIe+USB) I/O Ports and Switches 2 x USB 2.0 (side)
4 x USB 3.0 port
2 x HDMI output
2 x GbE LAN port
2 x RS-232/422/485
1 x Audio out (side) + 1 x Mic in (side)
1 x Digital Mic
1 x DC jack
RAM 1 x 4GB, 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB) Other Features Camera 5-megapixel CMOS front-facing camera with auto-focus and digital microphone Microphone digital microphone System Cooling Fanless Physical Characteristics Color White Construction Front Panel ABS+PC plastic with anti-bacterial material Dimensions (LxWxH) (mm) 594.6 x 379.6 x 71 mm Mounting Wall, Stand and Arm VESA 100/75 Power Power adapter 150W medical power adapter Power Supply 3 slots for hot swappable battery pack System Cooling method / System Fan Fanless CPU 6th generation Intel® mobile ULT Core™ i7-6600U / Core™ i5-6300U /Celeron® 3855U Storage 1 x 2.5＂ accessible SATA HDD bay
2 x M-key M.2 2242/60/80 (PCIe+SATA) with RAID
Touch Touch Screen Projected capacitive type with 10-point multi-touch Weight Weight 8.18 kg without batteries
9.53 kg with 3 batteries
I/O Interface I/O Interface 1 x AT/ATX Switch 2 x HDMI 2 x LAN(GbE) 1 x Line out 1 x Mic 1 x Power In(19V DC jack) 2 x RS-232 2 x Speaker 2 x USB 2.0 4 x USB 3.0 LED Function LED Function 1 x RFID indicator
3 x Battery indicator (Color : Blue/Red)
1 x Power Indicator
OSD Function OSD Function 1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock & LCD on/off
1 x Task Manager & Power on/off
Item No. Description POCm-W24C-ULT3-C/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Celeron 3855U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10 POCm-W24C-ULT3-i5/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10 POCm-W24C-ULT3-i7/PC/4G-R10 23.8" 250cd/m² FHD Medical panel PC ,with Intel® Core™ i7-6600U (15W) 2.4GHz on-board processor (ULT) , one 4GB DDR4 RAM , 802.11a/b/g/n/ac Wi-Fi module , PCAP touchscreen, 5M camera, microphone, hot swappable battery,R10
1 x Power Adapter
1 x Power Cord
