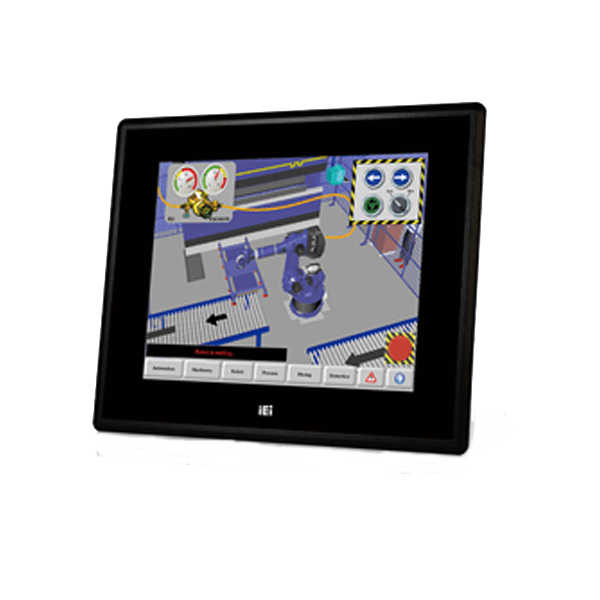

DM-F65A

6.5”~15” DM-F IP65 Industrial Monitor

  • Overview

    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● DC input
    ● DVI / VGA flexible video input solution
    ● Resistive single touch
    ● Wide temperature support
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 800
      Contrast Ratio 600:1
      LCD Size 6.5”(4:3)
      Max Resolution 640 (W) x 480 (H)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level IP 65 compliant front panel
      Operating Temperature -20°C ~ 60°C (with air flow)
      Storage Temperature -20°C ~ 70°C
      I/O Interface
      I/O Ports and Switches 1 x VGA (DB-15)
      1 x DVI
      1 x USB 2.0 (touch)
      1 x RS-232 (reserved for resistive touch ATO)
      1 x Lockable 12V DC jack
      LCD
      LCD Color 16.2M
      Pixel Pitch (mm) 0.207 x 0.207
      Viewing Angle (H-V) 160° / 140°
      Physical Characteristics
      Cutout Dimensions 180 x 140
      Dimensions (LxWxH) (mm) 191.8 x 154.36 x 42.88
      Power
      Power adapter 12V DC
      Touch
      Touch Controller Penmount 6000
      Touch Screen 5-wire resistive single touch window
      Weight
      Weight 1.1/2.6 Kg
    • Ordering Info.

      Item No. Description
      DM-F65A/R-R10 6.5" 800 cd/m² High luminance VGA LCD monitor with VGA, Aluminum die casting front panel, Black color,W/ USB resistive touch screen, R10
    • Package Contents

      • 1 x Touch Pen

      • 1 x USB Cable

      • 1 x VGA Cable

      • 1 x Adapter

      • 1 x AC power cord
