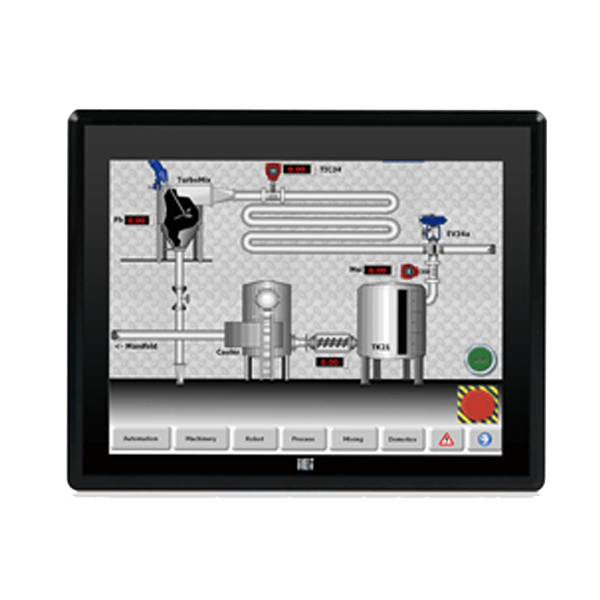

• Overview

    ● Support IEI iRIS-2400 IEI remote intelligent solution
    ● Scalable Intel® H81 chipset supports LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor with up to 65W TDP
    ● Robust IP65 aluminum front bezel
    ● Aesthetic ultra-thin bezel for seamless panel mount installation
    ● Projected capacitive multi-touch
    ● Dual full-size PCIe Mini card expansion
    ● AC/DC power input options (DC model by build to order manufacturing)
  • Specifications

    • Hardware Spec.

      Spec Item Description
      Display
      Backlight MTBF(hrs) 50000
      Brightness(cd/m2) 350
      Contrast Ratio 800:1
      LCD Size 17”(5:4)
      Max Resolution 1280 (W) x 1024 (H)
      Environment
      Humidity 10% to 95% (non-condensing)
      IP Level IP 65 compliant front panel
      Operating Temperature -10°C~50°C (14°F~122°F)
      Storage Temperature -20°C~60°C (-4°F~140°F)
      I/O Interface
      I/O Ports and Switches 2 x RJ-45 LAN Port
      2 x USB 3.0
      4 x USB 2.0
      1 x HDMI output
      4 x RS-232
      1 x RS-422/485
      1 x VGA output
      1 x AC/DC power plug (DC model is by build to order manufacturing)
      1 x AT/ATX switch
      1 x Clear CMOS
      1 x Reset button
      1 x Power switch
      LCD
      LCD Color 16.7M
      Pixel Pitch (mm) 0.26 x 0.26
      Viewing Angle (H-V) 170° / 160°
      Physical Characteristics
      Cutout Dimensions 323 x 390
      Dimensions (LxWxH) (mm) 341.4 x 408.4 x 73.8
      Power
      Power Supply AC input ATX power supply
      220W power supply
      Input: 90VAC-264VAC, 50/60Hz
      Output (max.): 3.3V@10A, 5V@14A, 12V@14A, -12V@0.3A
      Touch
      Touch Controller 5-wire resistive type single touch window (Penmount 6000), 3H
      Touch Screen 2-point projected capacitive touch window (EETI EXC7200), 6H
      Weight
      Weight 7.5/10.7 (kg)
    • Ordering Info.

      Item No. Description
      PPC-F17AA-H81i-i3/4G/PC-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor (4M Cache, 3.50 GHz), TDP 54W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, projective capacitive touch window with AG coating, R13
      PPC-F17AA-H81i-i3/4G/R-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Core i3 Dual Core i3-4330 Processor (4M Cache, 3.50 GHz), TDP 54W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, resistive touch window with AG coating, R13
      PPC-F17AA-H81i-i5/4G/PC-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset,Core i5 Quad Core i5-4570S Processor(6M Cache,up to 3.60 GHz),TDP 65W,2GB RAM*2,support iRIS-2400,black color,PSU ACE-A622B,projective capacitive touch window with AG coating, R13
      PPC-F17AA-H81i-i5/4G/R-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Core i5 Quad Core i5-4570S Processor (6M Cache, up to 3.60 GHz), TDP 65W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, resistive touch window with AG coating, R13
      PPC-F17AA-H81i-P/4G/PC-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, projective capacitive touch window with AG coating, R13
      PPC-F17AA-H81i-P/4G/R-R13 17" 350 cd/m2 SXGA Panel PC with Intel H81 chipset, Intel® Pentium® Processor G3420 (3M Cache, 3.20 GHz), TDP 53W, 2GB RAM*2, support iRIS-2400, black color, PSU ACE-A622B, resistive touch window with AG coating, R13
    • Package Contents

      • 1 x Power Cord 1 Depends on shipping region Screw Kit

      • 1 x Touch Pen
