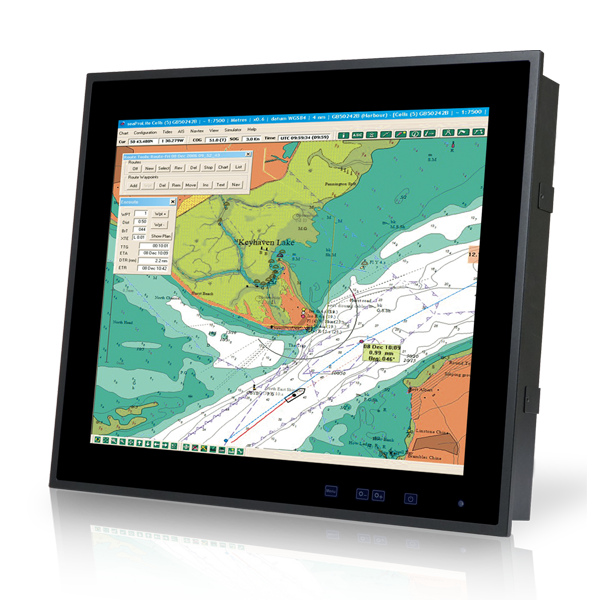

S19M

19” IP66 Marine Monitors

End of Life

S19M
S19M IO
  • S19M
  • S19M IO

End of Life Notice

* Effective Date: 2021/09/07

» IP66 Front / IP22 Rear
» -15°C ~ +55°C Wide Temperature and Flat-bezel Projected Capacitive Touchscreen
» Excellent Visual Performance
• Full OSD function configuration
• 0%~100% full range dimming
• 178°/178° wide viewing angles
» Multiple Video Input
• Two VGA, two DVI, and one BNC
» Multiple Video Output
• One VGA and one BNC
» Dual Isolated AC/DC Input with Redundant Power Protection
» Remote OSD Settings through LAN, RS-232, RS-422 and RS-485

Hardware Spec.

Display
Backlight MTBF(hrs) 50000
Brightness(cd/m2) 300
Contrast Ratio 2000 : 1
LCD Size 19"
Max Resolution 1280(W) x 1024(H)
Environment
Humidity 10% to 95% (non-condensing)
Operating Temperature -15°C~55°C
Storage Temperature -20°C~60°C
I/O Interface
I/O Ports and Switches DVI-D Signal Input: 2 x DVI (24-pin, female)
VGA Signal Output: 1 x D-sub (15-pin, female) - Clone of VGA IN*
Composite Video Input: 1 x BNC connector (female)
LCD
LCD Color 16.7M
Pixel Pitch (mm) 0.3075mm x 0.3075mm
Viewing Angle (H-V) 178° / 178°
Physical Characteristics
Cutout Dimensions 442 mm x 373 mm
Dimensions (LxWxH) (mm) 463 mm x 394 mm x 113 mm
Power
Power adapter 9~28V DC
Touch
Touch Controller 6H
Touch Screen EXC7920 (10-point)
Weight
Weight 7.74 Kg
I/O Interface
I/O Interface 1 x Touchscreen(USB Type A connector (female))
1 x RS-422/485
2 x Power In(100-240V AC/18-36V DC(Terminal Block))
1 x LAN(RJ-45)
2 x DVI-D
1 x Buzzer
3 x VGA(Input x 2,Output x1)
2 x BNC(Input/Output)

Ordering Information

S19M-AD/PC-R10 19" SXGA 300cd/m2 Marine Display with AC and DC redundant power, PCAP touch screen, R10

Package Contents

Package Content
  • 1 x Power Adpater

  • 1 x Screw Kit

  • 1 x Touch Pen
