IEI Launches INOX-F15C-ULT3 Stainless Steel Panel PC for Food Processing Industry
IEI Product News

INOX-stainless-steel-panel-pc

Features I/O Interface Dimensions
Specifications Ordering Information Packing List
Options Optional Cables and Adapters
Features

INOX-panel-pc-feature-icon

15" fanless panel PC with Intel® Skylake ULT processor
IP69K high pressure, high temperature protection
SUS304 stainless steel housing
Operating temperature : -20°C ~ 50°C
Flat glass PCAP touch with 6H hardness, resistive touch window
Accessible HDD Bay
M12 connections

I/O Interface
INOX-stainless-panel-pc-interface

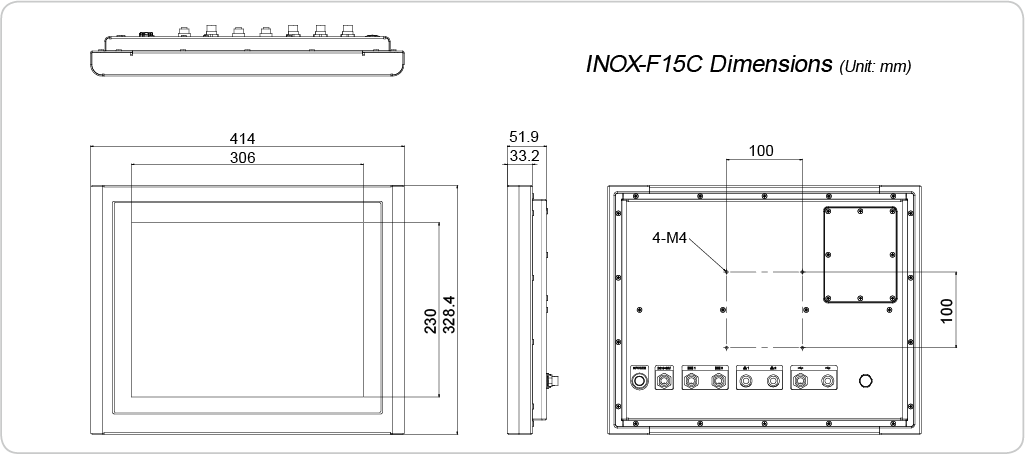

Dimensions
stainless-steel-panel-pc-Dimensions

Specifications
Model INOX-F15C-ULT3
LCD LCD Display 15"
Max Resolution 1024(W) x 768(H)
Brightness (cd/m²) 450
Contrast Ratio 800:1
LCD Color 16.2M
Pixel Pitch (mm) 0.297(H) x 0.297(V)
Viewing Angle (H-V) 160º /150º
Backlight MTBF (Hrs) 70000
Motherboard CPU 6th generation Intel® Core™ i5 and Celeron® ULT processor
RAM 2 x 260-pin 2133/1867 MHz dual-channel
DDR4 SO-DIMMs (system max. 32 GB)
Ethernet 2 x PCIe GbE by Intel® I210 controller
Touchscreen Resistive Touch / PCAP Touch
Input Interfaces I/O Ports 2 x 8-pin M12 connector for RS-232/422/485
2 x 8-pin M12 X-Code connector for GbE LAN
2 x 8-pin M12 connector for two USB 2.0
1 x 5-pin M12 connector for DC jack (9-36V DC)
1 x Power switch with power LED indicator
1 x Pressure relief valve
Expansions 1 x Full-size PCIe Mini card slot (SATA 6Gb/s)
1 x Full-size/half-size (PCIe x1 and USB 2.0 signals)
1 x M.2 B-key slot (2242/2260/2280 with USB 3.0, PCIe x2 and SATA signals)
Storage 1 x 2.5” SATA SSD bay / 1 x mSATA / 1 x M.2 B-key (2242/2260/2280)
Physical ME Construction SUS304 stainless steel housing
Mounting VESA 100mm x 100mm with M8 screw
Dimensions (WxHxD) (mm) 414 x 328.4 x 51.9
Environment Operating Temperature (with air flow) -20°C ~ 50°C
Storage Temperature -30°C ~ 60°C
IP Level Front: IP69K; Others: IP66
Safety CE / FCC
Power Adapter 60 W; 63000-CLG6012IC-RS
60W/12V waterproof power adapter
VAC:90V~264V; 12V/5A; 60W
Requirement 9-36V DC
Consumption 43W


Ordering Information
Part No. Description
INOX-F15C-ULT3-C/R/4G-R10 15” 450cd/m² XGA fanless stainless panel PC with Intel® 14nm 6th generation mobile Celeron® 3955U (15W) on-board processor (ULT), one 4GB DDR4 RAM, resistive touch, R10
INOX-F15C-ULT3-C/PC/4G-R10 15” 450cd/m² XGA fanless stainless panel PC with Intel® 14nm 6th generation mobile Celeron® 3955U (15W) on-board processor (ULT), one 4GB DDR4 RAM, PCAP touch, R10
INOX-F15C-ULT3-i5/R/4G-R10 15” 450cd/m² XGA fanless stainless panel PC with Intel® 14nm 6th generation mobile Core™ i5-6300U (15W) on-board processor (ULT), one 4GB DDR4 RAM, resistive touch, R10
INOX-F15C-ULT3-i5/PC/4G-R10 15” 450cd/m² XGA fanless stainless panel PC with Intel® 14nm 6th generation mobile Core™ i5-6300U (15W) on-board processor (ULT), one 4GB DDR4 RAM, PCAP touch, R10

Packing List
Item P/N
Power Cable 32000-127500-RS
USB Cable CB-M12USB02-R20
Touch Pen Resistive Touch only

Options
Item P/N
Arm ARM-31-RS
Stand STAND-A19-RS
STAND-C19-R10
STAND-A21-R10

Optional Cables and Adapter
Item P/N
USB Cable CB-M12USB02-R20
RJ-45 LAN Cable CB-M12RJ45X-R10
DB-9 COM Port Cable CB-M12COM-R20
Water-proof Power Adapter 63000-CLG6012IC-RS
