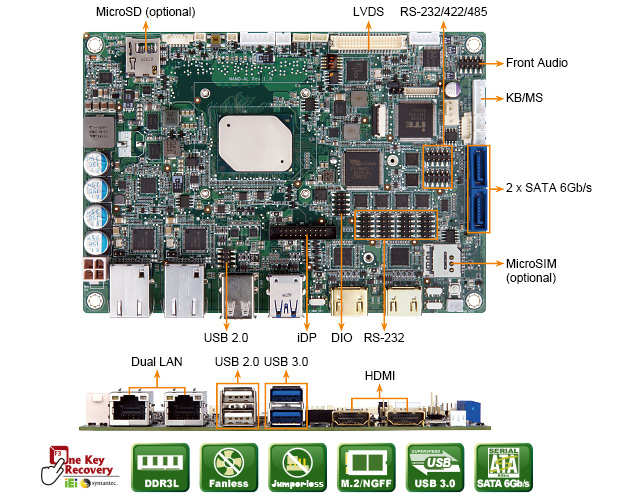

IEI Launches NANO-AL Epic Single Board Computer Supports Triple Independent Display
|
|
 |
 |
EPIC SBC supports Intel® 14nm Generation Atom®, Celeron® or Pentium® on-board SoC supports single-channel DDR3L SO-DIMMs |
|
Triple independent display support |
|
Wide range 9V~30V DC input design |
|
COM, USB 3.0, SATA 6Gb/s, M.2 and audio support |
|
Support temperature operation: -20°C ~ 70°C |
|
 |
|
|
| Model |
NANO-AL |
| CPU |
Intel® Pentium® N4200 on-board SoC (up to 2.5GHz, quad-core, 2M Cache, TDP=6W)
Intel® Celeron® N3350 on-board SoC (up to 2.4GHz, dual-core, 2M Cache, TDP=6W)
Intel® Atom® x7-E3950 on-board SoC (up to 2.0GHz, quad-core, 2M Cache, TDP=12W)
Intel® Atom® x5-E3940 on-board SoC (up to 1.8GHz, quad-core, 2M Cache, TDP=9W)
Intel® Atom® x5-E3930 on-board SoC (up to 1.8GHz, dual-core, 2M Cache, TDP=6W) |
| BIOS |
AMI UEFI BIOS |
| Memory |
One 204-pin 1866/1600MHz Single-channel DDR3L SO-DIMM supports up to 8GB |
| Graphics Engine |
Intel® HD Graphics Gen9 Low Power, 18 Execution Units
4K Codec Decode & Encode for HEVC 4, H.264, VP8, SVC, MVC |
| Display Output |
Triple independent display
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz)
2 x HDMI (up to 3840x2160@30Hz)
1 x iDP interface for HDMI. LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) (colay with
HDMI1) |
| Ethernet |
Intel® I211-AT PCIe controller |
| External I/O Interface |
2 x USB 3.0
2 x USB 2.0 |
| Internal I/O Interface |
| 1 x KB/MS (1x6 pin) |
2 x USB 2.0 (2x4 pin, P=2.0) |
| 2 x RS-232/422/485 (2x5 pin, P=2.0) |
4 x RS-232 (2x5 pin, P=2.0) |
| 2 x SATA 6Gb/s with 5V SATA power connector (no RAID) |
|
| SMBus |
1 x SMBus (1x4 pin) |
| I2C |
1 x I2C (1x4 pin) |
| Audio |
Realtek ALC662 HD codec
1 x Front audio (2x5 pin) |
| Front Panel |
1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| Expansion |
1 x Full/Half-size PCIe Mini slot with SIM holder (optional)
1 x M.2 2242 (B key, SATA, USB 2.0, USB 3.0 signal only)
1 x Micro SD (Optional) |
| Digital I/O |
8-bit digital I/O (2x5 pin) |
| Fan Connector |
1 x Smart fan connector (1x4 pin) |
| Watchdog Timer |
Software programmable, supports 1~255 sec. system reset |
| Power Supply |
9V~30V DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode |
| Power Consumption |
12V@2.13A (Intel® Pentium® N4200 CPU with one 8GB 1600MHz DDR3L memory)
12V@2.81A (Intel® Atom™ x7-E3950 CPU with one 8GB 1600MHz DDR3L memory) |
| Operating Temperature |
NANO-AL: -20°C ~ 70°C
NANO-AL-ExW2: -40°C ~ 85°C |
| Storage Temperature |
-40°C ~ 85°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
115mm x 165mm |
| Weight |
GW: 850g / NW: 350g |
| CE/FCC compliant |
|
|
|
|
 |
|
|
|
| Part No. |
Description |
| NANO-AL-N2-R10** |
EPIC SBC supports Intel® 14nm quad-core Pentium® N4200 2.5GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
| NANO-AL-N1-R10 |
EPIC SBC supports Intel® 14nm dual-core Celeron® N3350 2.4GHz on-board SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS |
| NANO-AL-E3W2-R10** |
EPIC SBC supports Intel® 14nm quad-core Atom® x7-E3950 2.0GHz onboard SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C |
| NANO-AL-E2W2-R10** |
EPIC SBC supports Intel® 14nm quad-core Atom® x5-E3940 1.8GHz onboard SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C |
| NANO-AL-E1W2-R10** |
EPIC SBC supports Intel® 14nm dual-core Atom® x5-E3930 1.8GHz onboard SoC with Dual HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, PCIe Mini, M.2, SATA 6Gb/s, COM, Audio and RoHS, -40°C ~ 85°C |
| 32000-070301-RS |
Dual-port USB cable, 210mm, P=2.0 |
| 32000-023800-RS |
PS/2 KB/MS cable, 135mm, P=2.0 |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
| **By order production, MOQ:100 |
|
|
|
|
| 1 x NANO-AL single board computer with Heatsink |
1 x RS-232 cable |
| 1 x SATA with power cable kit |
1 x Power cable |
| 1 x Screw set (for half-size PCIe Mini card) |
1 x QIG |
|
|
|
