IEI launches POC-17C-ULT3 17” Medical Grade Panel PC

17” Medical Grade Panel PC - POC-17C-ULT3
17” Medical Grade Panel PC
Features Specifications
I/O Interface Dimension
Ordering Information Options
IQ Mounting Options Packing List

   Features

17" 5:4 LED Panel (1280 x 1024)
Intel® Skylake-ULT platform Core™ i7-6600U / Core™ i5-6300U and Celeron® 3855U
Projected capacitive touchscreen supports multi-touch
IP65 compliant front bezel
Anti-bacteria cover
RAID function supported (RAID 0 and RAID 1) (only for Core™ i5 or Core™ i7)
Optional 3-in-1 card reader: MSR, SCR and fingerprint
Optional Mifare RFID module
Optional VoIP phone handset
Optional handle module with barcode scanner and reading light

   17” Medical Grade Panel PC

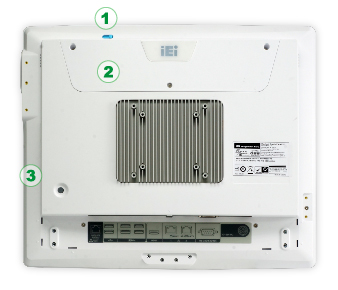

POC-17C-ULT3 back view
1. Built-in camera cover camera over
The camera cover protects the privacy of patients. The built-in design also makes the maintenance more convenient, and prevents cover loss.
2. RAID 0 and RAID 1 Function RAID 0 and RAID 1 function
The RAID 0/1 capability offers redundancy through mirroring - data is written identically to two drives. Users in the hospital will not need to worry about data lost anymore.
(only for Core™ i5 or above)
3. E-Window for Multiple Expansion E-window for multiple expansion
The reserved PCIe Mini slot for expansion helps system integrators add more functions easily without any additional cost efforts.
E-Window
Front IP65 Compliance
Easy to clean when spray the detergent and wipe at the front
Advanced Touchscreen for Saline Touchscreen for saline
The PCAP touch not only supports multi-touch function but also provides smooth control when operating with gloves. Moreover, we cooperate with our suppliers to work hard on avoiding the accidental operating from sterile saline.

   Specifications

Model Name POC-17C-ULT3
LCD Specifications LCD Display 17” (5:4)
Max Resolution 1280 (W) x 1024 (H)
Brightness (cd/m²) 350
Contrast Ratio 1000:1
LCD Color 16.7M colors (RGB 6-bit)
Pixel Pitch (mm) 0.264 (H) x 0.264 (V)
Viewing Angle (H-V) 170°(H) / 160°(V)
Backlight MTBF (hrs) 30000 (LED backlight)
Touch Touchscreen PCAP touch screen with 10-point multi-touch
Touch Controller ILITEK
Surface Hardness 6H
System CPU Support Intel® Skylake-ULT platform Core™ i7-6600U / Core™ i5-6300U and Celeron® 3855U
RAM Two 260-pin 2133/1866 MHz dual-channel DDR4 non-ECC unbuffered SO-DIMMs (system max. 32GB)
I/O Port 1 x RJ-11 for barcode module (1D/2D)
4 x USB 2.0 (2 for side)
4 x USB 3.0 port
1 x HDMI output
2 x GbE LAN port
1 x RS-232/422/485
1 x 12~28V DC jack
Storage 2 x 2.5” SATA 6Gb/s HDD bay
1 x mSATA reserved (only for Core™ i5 or Core™ i7)
Audio 2 x 2W speaker
Webcam & Microphone 2-megapixel CMOS front-facing camera with auto-focus and digital microphone
Expansion Interface 1X full-size / half-size mini PCIe slot (USB/SATA/PCIe)
Other Features Function Key 1 x LCD on/off
1 x Brightness up
1 x Brightness down
1 x Volume up
1 x Volume down
1 x Touch lock button for cleaning

Combinations:
1 x Lock/Unlock OSD
1 x Power on/off
Light Sensor Ambient light sensor for panel brightness adjustment
Cooling Method Fan-less
Connectivity Wi-Fi and Bluetooth IEEE 802.11 a/b/g/n/ac 2T2R module with Bluetooth V4.1 (M.2 2230 A-E key module)
Physical Construction Material ABS+PC plastic with anti-bacterial material pantone RAL 9016 (apple white)
Mounting Wall, Stand and Arm VESA 100mm x 100mm / 75mm x 75mm
Net Weight 6.0 Kg
Dimensions (WxHxD) (mm) 435 x 376 x 64.5
Environment Operating Temperature 0°C~40°C
Storage Temperature -20°C~65°C
Humidity 10% to 95% (non-condensing)
Vibration 1G
Shock Operating Shock: 5G peak acceleration (11ms duration)
Non-Operating Shock: 15G peak acceleration (11ms duration)
IP Level IP65 compliant front panel
Power Power Input 12V~28V DC input
Power Adapter 120W medical power adapter: Input: 100V~240V AC, Output: 19V DC

   I/O Interface

POC-17C-ULT3 I/O interface view

   Dimensions

POC-17C-ULT3 Dimensions

   Ordering Information

Part No. Description
POC-17C-ULT3-C/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Celeron® 3855U (15W) 1.6GHz on-board processor (ULT), one 4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2-megapixel camera, microphone, R10
POC-17C-ULT3-i5/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) 2.4GHz on-board processor (ULT), one 4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2-megapixel camera, microphone, R10
POC-17C-ULT3-i7/PC/4G-R10 17” 350 cd/m² 1280x1024 Panel PC with Intel® 14nm 6th Generation Mobile Core™ i7-6600U (15W) 2.6GHz on-board processor (ULT), one 4GB DDR4 RAM, 802.11a/b/g/n/ac Wi-Fi module, PCAP touchscreen, 2-megapixel camera, microphone, R10

   Options

Part No. Description
MEDP-HS-R10 USB interface VoIP phone and its holder, white
MEDP-CR-R10 Magnetic card reader/Smart card reader/Fingerprint sensor, white
MEDP-HD-R10 Metal handle covered with soft rubber
MEDP-HD-BR-R10 Metal handle covered with soft rubber, with barcode reader and reading light, white
MEDP-MF-RFID-R10 MIFARE RFID reader, 13.56MHz, with LED indicator, IEI assembly only
MEDP-TPM-R10 Trusted platform module kit, IEI assembly only
MEDP-EZS-R10 VESA 100 x 100 mm panel PC stand with a cable management hole, white

   IQ Mounting Options

Item Part No.
Wall Mount Kit AFLWK-19B
Arm ARM-31-RS
Stand STAND-300SW-RS/STAND-A21-R10



   Packing List

Item Part No. Q’ty Description
Utility CD   1 Drivers and User Manual
Power Adapter 63040-580120-000-RS 1 120W medical power adapter: Input: 100V~240V AC, Output: 19 V DC
Power Cord   1 European power cords, 183 CM, C13
