IEI launches HTB-100-HM170 Medical Box PC

Fanless Quad Core Box PC - HTB-100
Smart & Friendly Design! HTB-100 brings you more satisfaction
Powerful system design capability with innovative technology
Features Specifications
I/O Interface Dimension
Ordering Information Options
Packing List

   Features

Medical grade with high performance fanless embedded computing
6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory
Triple independent display with high resolution support
Isolated COM ports for enhancing safety among devices
Optional PCIe x16 expansion slot supports more flexible functions

   Smart & Friendly Design! HTB-100 brings you more satisfaction

Isolated COM ports, rich I/O interface, and multiple expansions are built in to the HTB-100. The intelligent HTB-100 medical computing system will meet all demands from the medical applications.
1. Compliant with medical standards
The HTB-100 is compliant with medical standards, including IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making the medical environment more reliable.

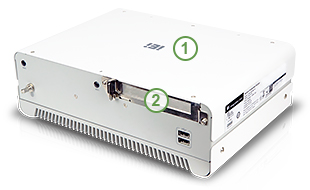

2. Flexible expansion
The flexible expansion is one of the advantages of the HTB-100 for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery.
Smart & Friendly Design!
Smart & Friendly Design!

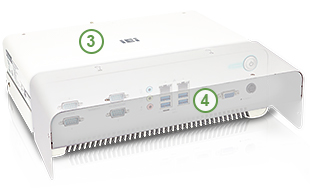

3. Waterproof top cover
The HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort.

4. Cable cover for easy cabling
The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment.

   Powerful system design capability with innovative technology

Powerful system design capability with innovative technology

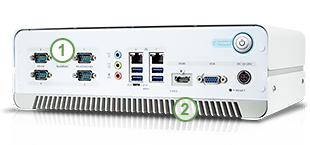

1. Isolated COM ports for safety protection
The COM ports support 4kV isolation that meets medical standard (IEC 60601-1-2 V4.0). The isolated ports can increase safety on device designed for medical environment, and provide comprehensive protection against electrical surges for patients and medical staffs.
2. Fanless and easy maintenance
The HTB-100 is a fanless embedded system, and the heatsink is situated on the bottom side. The design makes the HTB-100 an easyto-clean and reliable system for the medical environment.
3. Ground pin to prevent harm to patients and medical staffs
The perfect grounding pin design can avoid current from the HTB-100 to vital devices which connect to patients, and to avoid the current damage from other devices.
4. Easy mounting design
Various mounting methods such as desktop and wall mount are supported for easy use in medical environment. The provided flexible mounting bracket can be oriented 180 degrees to change from desktop to wall mount.
Powerful system design capability with innovative technology

   Specifications

Model Name HTB-100-HM170
Chassis Color Silver+Greyish blue
Dimensions (WxDxH) 294 x 209 x 90.2
System Fan Fanless
Chassis Construction Extruded aluminum alloy
Motherboard CPU Intel® Core™ i7-6822EQ (2 GHz, quad-core, TDP=25)
Intel® Core™ i5-6442EQ (1.9 GHz, quad-core, TDP=25)
Chipset Intel® HM170
System Memory 2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB)
Storage Hard Drive 1 x 2.5" SATA 6Gb/s HDD/SSD bay
I/O Interfaces USB 3.0 4
USB 2.0 2
Ethernet 2 x RJ-45 PCIe GbE by Intel® I211 controller
COM Port 2 x RS-232 (DB-9, with 4 kV isolation)
2 x RS-232/422/485 (DB-9, with 4 kV isolation)
Display 1 x VGA, 1 x HDMI 2.0, 1 x iDP (optional)
Resolution VGA: Up to 1920 x 1200@60HZ
HDMI 2.0: Up to 4096 x 2160@60Hz
Audio Realtek ALC662, 5.1-channel High Definition Audio (HDA), Line-in, Line-out, Mic-in
Wireless 1 x 802.11a/b/g/n/c 2T2R (optional)
Expansions PCIe 1 x PCIe x16
PCIe Mini 1 x Half-size PCIe Mini
1 x Full-size PCIe Mini (supports mSATA, colay with SATA)
M.2 1 x M.2 (A & E key)
Power Power Input DC Jack: 12~28V DC
Power Consumption 19V@4.4A (Intel® Core™ i7-6822EQ with 4 GB memory)
Reliability Mounting Wall mounting
Operating Temperature 0°C ~ 40°C with air flow (SSD), 10% ~ 95%, non-condensing
Storage Temperature -40°C ~70°C with air flow (SSD), 10% ~ 90%, non-condensing
Operating Shock Half-sine wave shock 5G; 11ms; 100 shocks per axis
Operating Vibration MIL-STD-810G 514.6 C-1 (with SSD)
Safety / EMC CE, FCC class B part 18, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971
OS Supported OS Microsoft® Windows 8, Microsoft® Embedded Standard 7

   I/O Interface

HTB-100 I/O Interface HTB-100 I/O Interface

   Dimensions

HTB-100 Dimensions

   Ordering Information

Part No. Description
HTB-100-HM170-i5/4G-R10 Ruggedized fanless embedded system with Intel® Core™ i5-6442EQ 1.9 GHz (up to 2.7 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS
HTB-100-HM170-i7/4G-R10 Ruggedized fanless embedded system with Intel® Core™ i7-6822EQ 2.0 GHz (up to 2.8 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS

   Options

Part No. Description
63040-580120-000-RS Adapter Power, Darfon, H1120-B0, BK.1HB2J3001, Active PFC, Vin:90~264VAC, 120W, 1200mm, MEDICAL, Vout:19VDC, Din 4Pin/lock, CCL, RoHS
32702-000200-100-RS POWER CORD; EUROPEAN CODE (VDE)

   Packing List

1 x Utility CD 1 x One Key Recovery CD
1 x Chassis Screw 1 x Mounting Bracket
