IEI Launches the New Full-size SPCIE-C236 & PCIE-Q170 Single Board Computer

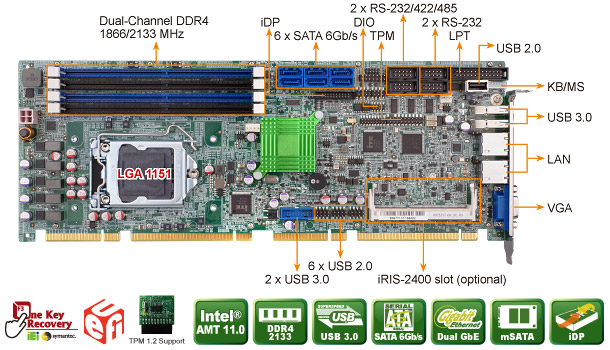

 Features |
| |
|
 |
 |
PICMG 1.3 full-size CPU Card |
|
Supports dual independent display by VGA & internal DP pin header |
|
Supports mini-PCIe device & mSATA via mini-PCIe socket |
|
Intel® PCIe GbE with Intel® AMT 11.0 supported |
|
Supports RAID 0, 1, 5, 10 function via SATA 6Gb/s |
|
TPM 1.2 & 2.0 hardware security function supported by TPM module |
|
 |

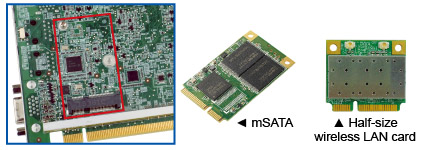

| PCIe Mini & mSATA colay |
| |
|
| |
 |
Mini PCie interface provide SATA, PCIe x1 and USB signal such as mSATA, PCIe device, and wireless LAN card for full-size or half-size devices. |
|
|
| Four 288-pin DDR4 SDRAM Suppotred |
| |
|
| |
Four 288-pin DDR4 SDRAM Suppotred |
RAID 0, 1, 5, 10 function compatible with
six ports of SATA 6Gb/s |
|
|
| Specifications |
| |
|
| Model |
SPCIE-C236 |
PCIE-Q170 |
| CPU |
LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® processor supported |
LGA 1151 Intel® Core™ i7/i5/i3/Pentium®/ Celeron® processor supported |
| PCH |
Intel® C236 |
Intel® Q170 |
| Memory |
Four 288-pin 1867/2133MHz Dual-Channel DDR4 ECC & non-ECC unbuffered DIMM supported up to 64GB |
Four 288-pin 1867/2133MHz Dual-Channel DDR4 SDRAM unbuffered DIMM supported up to 64GB |
| BIOS |
UEFI BIOS |
| Graphic Engine |
Intel® HD Graphics Gen 9 supports DX11/12, OpenCL 2.x and OpenGL 4.3/4.4
Decode/Encode for HEVC, VP8, VP9, VDENC
Supports dual independent display
One VGA (via Chrontel CH7517A, up to 1920x1200@60 Hz)
One iDP interface for HDMI, LVDS, VGA, DVI and DisplayPort (up to 3840x2160@60 Hz) |
| Ethernet |
LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 supported
LAN2: Intel® I210 PCIe controller |
| Super I/O |
Fintek F81866 |
| EC |
IWDD |
| External I/O |
2 x USB 3.0
2 x RJ-45
1 x VGA |
| Internal I/O |
| 1 x 6-pin wafer for KB/MS |
2 x RS-232 |
| 1 x iDP |
2 x RS-232/422/485 |
| 1 x LPT |
2 x USB 3.0 (19-pin box header) |
| 6 x SATA 3.0 (6Gb/s) (C236/Q170 supports RAID 0, 1, 5, 10) |
| 7 x USB 2.0 (1 type A 180°, 6 by pin header) |
|
| Front Panel |
1 x Front Panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| LAN LED |
2 x 2 Pin for LAN1 LED, LAN2 LED (Active) |
| Audio |
Support 7.1 channel HD audio by IEI AC-KIT-892HD kit |
| TPM |
2 x 10-pin pin header |
| SMBus |
1 x 4-pin wafer |
| I²C |
1 x 4-pin wafer |
| iRIS Remote Management Module |
1 x iRIS-2400 slot (optional) |
| Expansion |
16-lane PCIe link from CPU via golden finger:
Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane (configured via BIOS)
4-lane PCIe link from PCH via golden finger:
Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS switch)
One PCIe Mini |
16-lane PCIe link from CPU via golden finger:
Supports one PCIe x16, or two PCIe x8, or one PCIe x8 + two PCIe x4 on the backplane (configured via BIOS)
4-lane PCIe link from PCH via golden finger:
Supports four PCIe x1 slots or one PCIe x4 slot on the backplane (configured via BIOS switch)
One PCIe Mini
Four PCI signal via golden finger |
| Watchdog Timer |
Software programmable support 1~255 sec. system reset |
| Digital I/O |
8-bit digital I/O |
| Fan Connector |
1 x 4-pin smart fan connector (CPU fan)
1 x 3-pin smart fan connector (system fan) |
| Power Supply |
5V/12V, AT/ATX support |
| Power Consumption |
5V@3.22A, 12V@6.81A, 3.3V@1.21A, 5VSB@0.18A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 64GB (16GBx4) 2133 MHz DDR4 memory) |
5V@3.12A, 12V@6.85A, 3.3V@1.13A, 5VSB@0.15A (Intel® Core™ i7-6700K 4.0GHz CPU with 64GB (16GB x 4) 2133 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
338 mm x 126 mm |
| Weight |
GW: 1000g / NW: 420g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| SPCIE-C236-R10 |
Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236, ECC & non-ECC DDR4, Dual Intel® PCIe GbE, USB 3.0, VGA/IDP, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, Intel® AMT and RoHS |
| SPCIE-C236-i2-R10** |
Full-size PICMG 1.3 CPU Card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU per Intel® C236, ECC & non-ECC DDR4, Dual Intel® PCIe GbE, USB 3.0, VGA/IDP, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, Intel® AMT, iRIS-2400 and RoHS |
| PCIE-Q170-R10 |
Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/ Celeron® CPU per Intel® Q170, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT and RoHS |
| PCIE-Q170-i2-R10** |
Full-size PICMG 1.3 CPU Card supports LGA1151 Intel® Core™ i7/i5/i3/Pentium®/ Celeron® CPU per Intel® Q170, DDR4, VGA/IDP, Dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, PCIe mini, mSATA, HD Audio, iAMT, iRIS-2400 and RoHS |
| 19800-000075-RS |
KB/MS cable with bracket |
| 32102-000100-200-RS |
SATA power cable |
| 32200-015100-RS |
LPT Cable |
| AC-KIT-892HD-R10 |
7.1 channel HD Audio kit with Realtek ALC892 support dual audio streams |
| CF-1150SA-R10 |
Special cooler kit for LGA1150, High-performance compatible, 95W |
| CF-1150SB-R11 |
Special cooler kit for LGA1150, High-performance compatible, 65W |
| CF-1150SC-R20 |
Special cooler kit for LGA1150, 1U chassis compatible, 65W |
| CF-1150SE-R11 |
Special cooler kit for LGA1150, 1U chassis compatible, 95W |
| CF-1150SF-R10 |
Special cooler kit for LGA1150, 1U chassis compatible, 54W |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (for iEi IDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for iEi IDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for iEi IDP connector) |
| DP-LVDS-R10 |
DisplayPort to LVDS converter board (for iEi IDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for iEi IDP connector) |
| SAIDE-KIT01-R10 |
SATA to IDE/CF Converter board |
| ** By order production, MOQ: 100 |
|
|
| Packing List |
| |
|
| 1 x SPCIE-C236/PCIE-Q170 single board computer |
| 1 x SATA cable (P/N: 32000-0628000-RS) |
1 x QIG (Quick Installation Guide) |
| 1 x Mini jumper pack |
1 x Utility CD |
|
|
|
