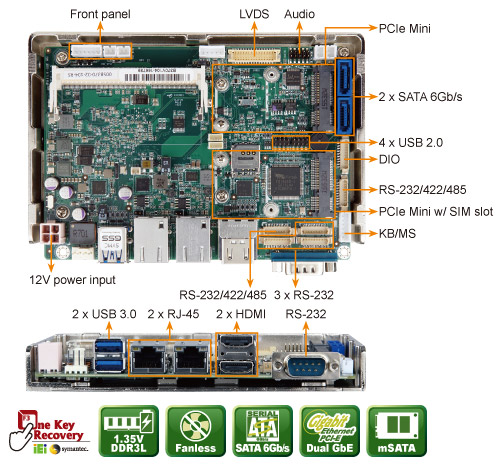

IEI Launches the New WAFER-BW 3.5" Embedded board
 Features |
| |
|
 |
| |
 |
3.5" SBC supports Intel® 14nm Pentium®/Celeron® on-board SoC |
|
Triple independent display support |
|
1.35V DDR3L 1333/1600 MHz SDRAM up to 8 GB |
|
COM, USB 3.0, SATA 6Gb/s, PCIe Mini, mSATA and Audio support |
|
Two full-size PCIe Mini slots (one with SIM holder for WLAN/WWAN expansion) |
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |

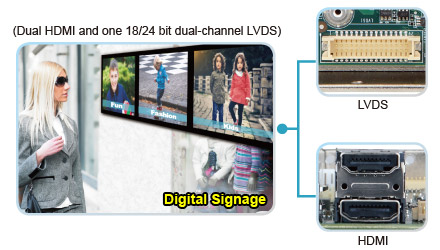

| Triple independent display |
| |
|
| |
 |
| |
|
| Specifications |
| |
|
| Model |
WAFER-BW |
| SoC |
Intel® Pentium® N3710 on-board SoC (up to 2.56GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3160 on-board SoC (up to 2.24GHz, quad-core, 2MB cache, TDP=6W)
Intel® Celeron® N3060 on-board SoC (up to 2.48GHz, dual-core, 2MB cache, TDP=6W)
Intel® Celeron® N3010 on-board SoC (up to 2.24GHz, dual-core, 2MB cache, TDP=4W) |
| BIOS |
AMI UEFI BIOS |
| Memory |
One 204-pin 1333/1600 MHz single-channel DDR3L SDRAM unbuffered SO-DIMM slot supports up to 8 GB |
| Graphics Engine |
Intel® HD Graphics Gen 8 Engine with 16 low-power execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2 |
| Display Output |
Triple independent display
2 x HDMI (up to 3840x2160@30Hz)
1 x 18/24-bit dual-channel LVDS by CH7511B DP to LVDS converter (up to 1920x1200@60Hz) |
| Ethernet |
LAN1: Realtek RTL8111GN controller
LAN2: Realtek RTL8111GN controller |
| External I/O Interface |
1 x RS-232
2 x USB 3.0 (on rear I/O) |
| Internal I/O Interface |
| 1 x eMMC4.51 (optional) |
2 x SATA 6G/s with 5V SATA power connector (no RAID) |
| 1 x KB/MS (1x6 pin) |
3 x RS-232 (1x9 pin, P=1.25) |
| 1 x mSATA |
4 x USB 2.0 (2x4 pin, P=2.0) |
| 2 x RS-232/422/485 (2 by pin header) (1x9 pin, P=1.25) |
|
| SMBus |
1 x SMBus (1x4 pin) |
| I²C |
1 x I²C (1x4 pin) |
| Audio |
Realtek ALC662 HD codec
1 x Analog audio (2x5 pin) |
| Front Panel |
1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| Expansion |
2 x Full/Half-size PCIe Mini card slot (1 w/ SIM holder) (1 w/ mSATA support: share SATA
signal from SATA2) |
| Digital I/O |
1 x 8-bit digital I/O (1x10 pin, P=1.25) |
| Fan Connector |
1 x Smart fan connector (1x4 pin) |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Power Supply |
12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode |
| Power Consumption |
12V@1.52A (Intel® Pentium® processor N3710 with 8 GB 1600 MHz DDR3L memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
146mm x 102mm |
| Weight |
GW: 600g/ NW:250g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| WAFER-BW-N4-R10 |
3.5" SBC supports Intel® Pentium® quad-core processor N3710 up to 2.56GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS |
| WAFER-BW-N3-R10 |
3.5" SBC supports Intel® Celeron® quad-core processor N3160 up to 2.24GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS |
| WAFER-BW-N2-R10 |
3.5" SBC supports Intel® Celeron® dual-core processor N3060 up to 2.48GHz (6W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS |
| WAFER-BW-N1-R10** |
3.5" SBC supports Intel® Celeron® dual-core processor N3010 up to 2.24GHz (4W) with dual HDMI and LVDS, Dual PCIe GbE, PCIe Mini, USB 3.0, SATA 6Gb/s, mSATA, COM, Audio and RoHS |
| 32000-023800-RS |
PS/2 KB/MS 135mm, P=2.0 |
| 32001-008600-200-RS |
Dual-port USB 2.0 cable, 210mm, P=2.0 |
| **By order production, MOQ: 100 |
|
|
| Packing List |
| |
|
| 1 x WAFER-BW single board computer |
2 x SATA with power cable kit |
| 1 x Audio cable |
1 x One Key Recovery CD |
| 1 x Power cable |
1 x QIG (Quick Installation Guide) |
| 1 x RS-232/422/485 cable |
1 x Utility CD |
|
|
|
