IEI Launches the New IMBA-C2360-i2 ATX DDR4 Motherboard
 Features |
| |
|
 |
| |
 |
LGA1151 6th generation Intel® Xeon® E3-1200, Core™ i3, Pentium® and Celeron® processor supported |
|
Dual-channel DDR4 2133 MHz |
|
Intel® PCIe GbE with Intel® AMT11.0 support |
|
Support independent triple display with HDMI, DVI and VGA |
|
Support PCI Express generation 3.0 at 8GT/s I/O bandwidth |
|
USB 3.0 and SATA 6Gb/s |
|
Support IPMI 2.0 via iRIS-2400 |
|
IEI One Key Recovery solution allows you to create rapid OS backup and recovery |
|
 |

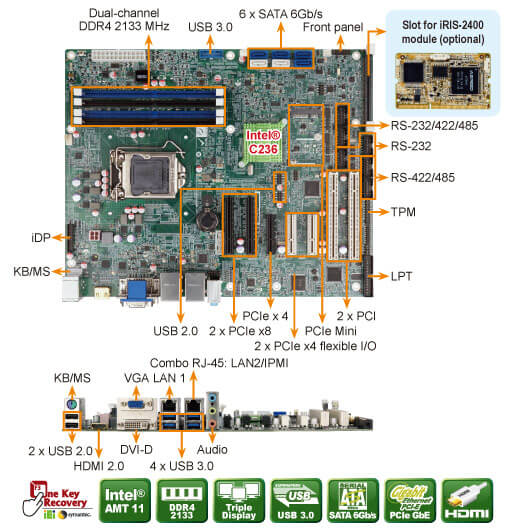

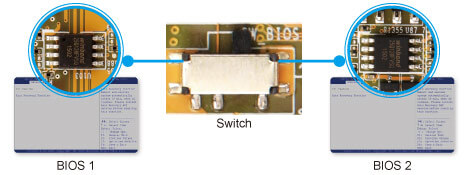

| Dual BIOS (for flexible I/O only) |
| |
|
| |
Easy for customer to switch different ME firmware to achieve I/O flexibility |
| |
 |
| |
|
| Specifications |
| |
|
| Model |
IMBA-C2360-i2 |
| CPU |
LGA1151 6th generation Intel® Xeon® E3-1200 v5, Core™ i3, Pentium® and Celeron® processor |
| System Chipset |
Intel® C236 |
| Memory |
Four 288-pin 2133 MHz dual-channel DDR4 SDRAM ECC and non-ECC unbuffered DIMMs support up to 64 GB |
| BIOS |
UEFI BIOS |
| Graphics Engine |
Intel® HD Graphics Gen 9 engine with 16 low-power execution units, supports DX11/12, OpenGL 4.3/4.4 and OpenCL2.x, ES 2.0 |
| Display Output |
Triple independent display
1 x VGA (up to 1920x1200@60Hz)
1 x DVI-D (up to 2560x1600@60Hz)
1 x HDMI 2.0 (up to 4096x2160@60Hz)
1 x iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 4096x2304@60Hz) |
| Ethernet |
LAN1: Intel® I219LM PCIe controller
LAN2: Intel® I210AT PCIe with Intel® AMT 11.0 support |
| External I/O Interface |
2 x USB 2.0
4 x USB 3.0 |
| Internal I/O Interface |
| 1 x KB/MS (1x6 pin) |
1 x mSATA (colay SATA2) |
| 1 x LPT (2x13 pin, P=2.54) |
1 x USB 3.0 (2x10 pin, P=2.0) |
| 2 x RS-232/422/485 (2x5 pin, P=2.54) |
4 x USB 2.0 (2x4 pin, P=2.0) |
| 4 x RS-232 (2x5 pin, P=2.00) |
6 x SATA 6Gb/s (RAID 0/1/5/10 support) |
|
| SMBus |
1 x SMBus (1x4 pin) |
| I2C |
1 x I2C (1x4 pin) |
| TPM |
1 x TPM connector (2x10 pin) |
| Audio |
Realtek ALC662 HD codec supports 5.1-channel
3 x Audio jacks (line-out, line-in, mic-in) on rear IO
1 x Front audio (2x5 pin) |
| Front Panel |
1 x Front panel (2x7 pin, power LED, HDD LED, speaker, power button, reset button) |
| LAN LED |
2 x LAN LED (1x2 pin) |
| Expansion |
| 1 x Full-size PCIe Mini card slot |
2 x PCIe x8 slot (Gen3) |
| 2 x PCI slot |
3 x PCIe x4 slot (Gen3) |
|
| iRIS Remote Management Module |
1 x iRIS-2400 slot |
| Watchdog Timer |
Software programmable supports 1~255 sec. system reset |
| Digital I/O |
8-bit digital I/O (2x5 pin) |
| Fan Connector |
1 x CPU smart fan (1x4 pin)
2 x System smart fan (1x3 pin) |
| Power Supply |
ATX/AT power supply |
| Power Consumption |
3.3V@1.51A, 5V@3.31A, 12V@9.02A, 5VSB@3.7A (Intel® Xeon® E3-1275 v5 3.60 GHz CPU with 32 GB (four 8GB) 2133 MHz DDR4 memory) |
| Operating Temperature |
-20°C ~ 60°C |
| Storage Temperature |
-30°C ~ 70°C |
| Operating Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
244mm x 305mm |
| Weight |
GW:1200g, NW: 700g |
|
|
| Ordering Information |
| |
|
| Part No. |
Description |
| IMBA-C2360-i2-R10 |
ATX motherboard supports 14nm LGA1151 Intel® Xeon® E3 v5 series, Core™ i3, Pentium®, Celeron® processor per Intel® C236, DDR4, triple independent display VGA/DVI-D/HDMI 2.0, dual Intel® PCIe GbE, USB 3.0, SATA 6Gb/s, HD Audio, IPMI 2.0 and RoHS |
| iRIS-2400-R10 |
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface |
| PCIES-2PIMSATA-R10 |
Peripheral card for flexible I/O, 1 x PCIe Mini, 2 x mSATA expansion |
| PCIES-USB3-R10 |
Peripheral card for flexible I/O, USB 3.0 expansion |
| 19800-000075-RS |
PS/2 KB/MS Y-cable with bracket, 220mm |
| 19800-003100-300-RS |
Dual-port USB cable with bracket |
| 19800-010500-200-RS |
USB 3.0 cable 457mm with bracket |
| 32102-000100-200-RS |
SATA power cable, MOLEX 5264-4P to SATA15P |
| 32205-001203-200-RS |
RS-232 cable, 40-pin to four DB-9 |
| 32205-003800-300-RS |
RS-422/485 cable, 200mm |
| CF-1156A-RS-R11 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156C-RS |
LGA1155/1156 kit, 1U chassis compatible, 45W |
| CF-1156D-RS |
LGA1155/1156 kit, 1U chassis compatible, 65W |
| CF-1156E-R11 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (for IEI iDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (for IEI iDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (for IEI iDP connector) |
| DP-LVDS-R10 |
DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (for IEI iDP connector) |
| TPM-IN01-R11 |
20-pin Infineon TPM module, software management tool, firmware v3.17 |
|
|
| Packing List |
| |
|
| 1 x IMBA-C2360-i2-R10 |
1 x One Key Recovery CD |
| 1 x I/O shielding |
1 x QIG |
| 2 x SATA cable |
1 x Utility CD |
|
|
|
